F3AE0684E*B002

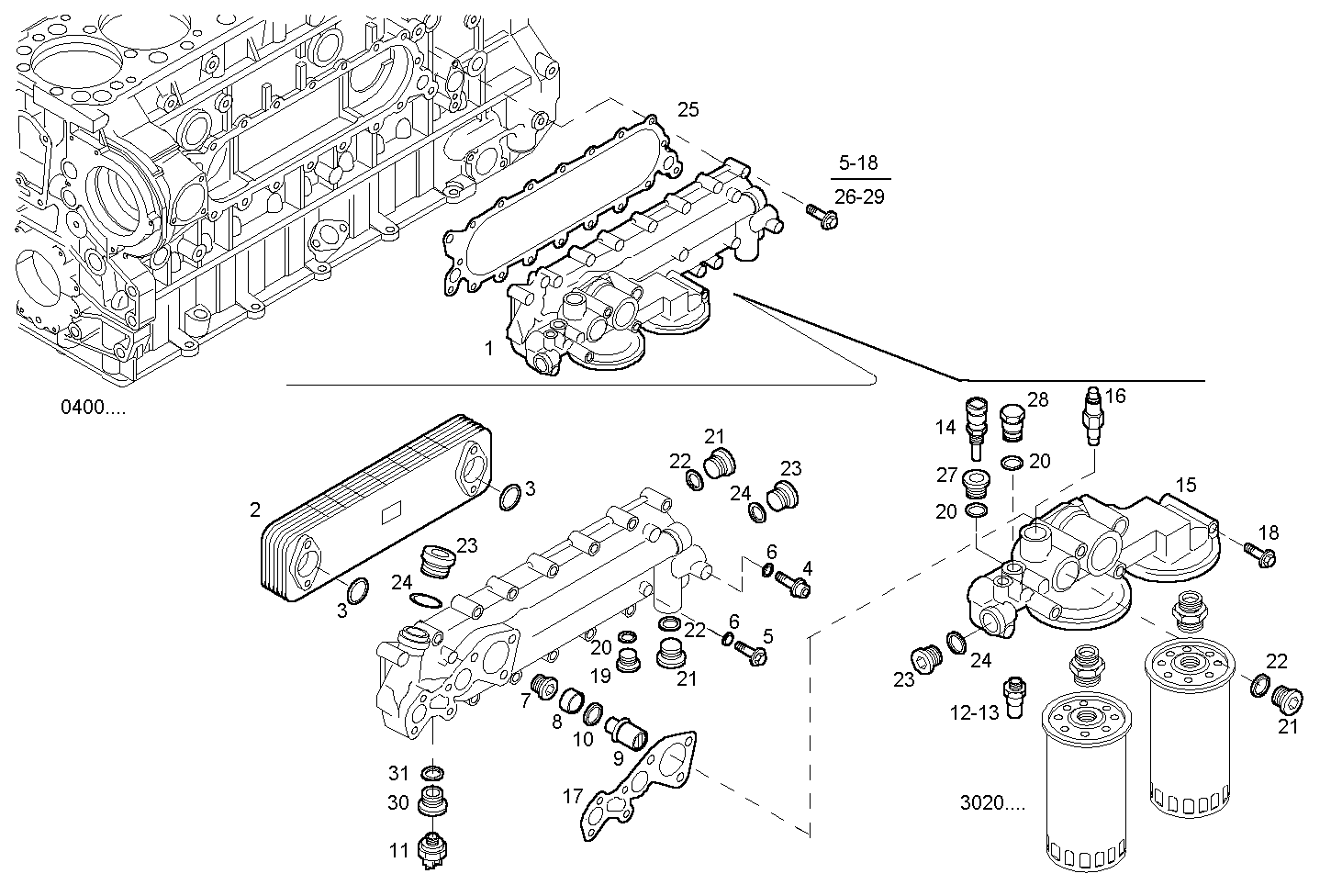

3100.100 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 504034513 HEAT EXCHANGER ASSY
2 99434989 OIL COOLER
3 17283581 O-RING Ø44,12 MM SP=2,62 MM
4 16673934 HEXAGON BOLT M8X35 MM
5 16586924 HEXAGON BOLT M8X50 MM
6 98474303 WASHER Ø8X14 MM SP=2,3 MM
7 99433799 THREADED PLUG M32X1,5
8 99433798 SPACING BAR Ø28 MM
9 98498322 VALVE
10 98494952 GASKET M35X1,5
11 500377533 SENSOR Pressure
12 98445111 PRESSURE SWITCH BORLETTI
13 98442879 PRESSURE SWITCH SIPEA
14 500382599 TEMP. TRANSMITTER PRESS. & TEMPER.
15 504015772 OIL FILTER SUPPORT
16 500351609 SENSOR OIL PRESSURE [UP TO # 50367]
17 504015752 GASKET
18 16598224 HEXAGON BOLT M8X90 MM
19 16992411 THREADED PLUG M16X1,5
20 99489019 WASHER Ø16X24 MM SP=1,5 MM
21 16993711 THREADED PLUG M35X1,5
22 99469380 SEAL GASKET Ø35 MM
23 16993511 LOCK PLUG M28X1,5
24 99432291 SEAL GASKET Ø28 MM
25 98497873 FLAT ENGINE GASKET
26 16674034 HEXAGON BOLT M8X40 MM
27 504009680 THREADED UNION
28 4741616 THREADED UNION M16X1.5
29 16598624 HEXAGON BOLT M8X1,25X140 MM
30 500356858 THREADED UNION
31 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
