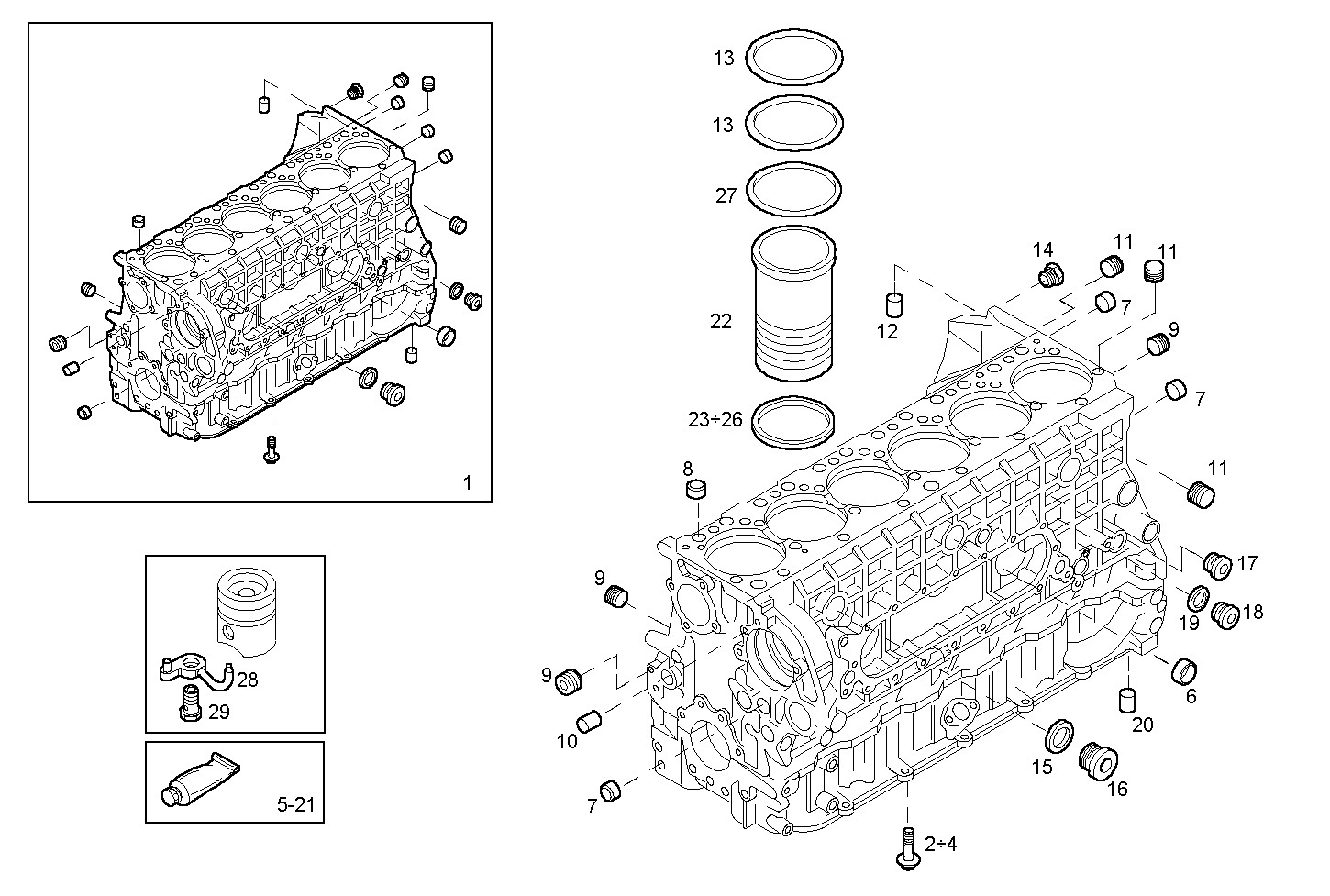

| Item |
Part number |
Description |
|
1 |
500334231 |
CRANKCASE ASSY |
|
2 |
99430335 |
HEXAGON BOLT |
|
3 |
99432869 |
HEXAGON BOLT M12X125 MM |
|
4 |
99433863 |
HEXAGON BOLT M12X58 MM |
|
5 |
1903673 |
ADHESIVE/STICKER LOCTITE |
|
6 |
16991370 |
LOCK PLUG Ø45 MM |
|
7 |
16990870 |
LOCK PLUG Ø28 MM |
|
8 |
16990570 |
LOCK PLUG Ø20 MM |
|
9 |
504051238 |
THREADED PLUG DIAM=3/8" |
|
10 |
98475100 |
THREADED PLUG R3/4x12 |
|
11 |
504051237 |
THREADED PLUG DIAM=1/4" |
|
12 |
500368916 |
OIL NOZZLE |
|
13 |
99456554 |
O-RING |
|
14 |
99433597 |
THREADED PLUG M12X16 MM |
|
15 |
99469382 |
SEAL GASKET D=42x50x2 |
|
16 |
4665029 |
LOCK PLUG M42X1,5 |
|
17 |
11903211 |
LOCK PLUG M12X1,25 |
|
18 |
16992411 |
THREADED PLUG M16X1,5 |
|
19 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
20 |
99467554 |
DOWEL PIN Ø14 MM |
|
21 |
93162429 |
ADHESIVE/STICKER LOCTITE |
|
22 |
500338224 |
CYLINDER LINER STANDARD |
|
23 |
99432876 |
SPAC.RING CYL.LIN. SP=0,08 MM |
|
24 |
99432875 |
SPAC.RING CYL.LIN. SP=0,1 MM |
|
25 |
99432873 |
SPAC.RING CYL.LIN. SP=0,12 MM |
|
26 |
500378984 |
SPAC.RING CYL.LIN. SP=0,14 MM |
|
27 |
99456553 |
O-RING |
|
28 |
504026207 |
OIL NOZZLE |
|
29 |
99474718 |
SCREW CONNECTOR M12X1,5 [UP TO # 74174] |
