F3AE0684G*B003

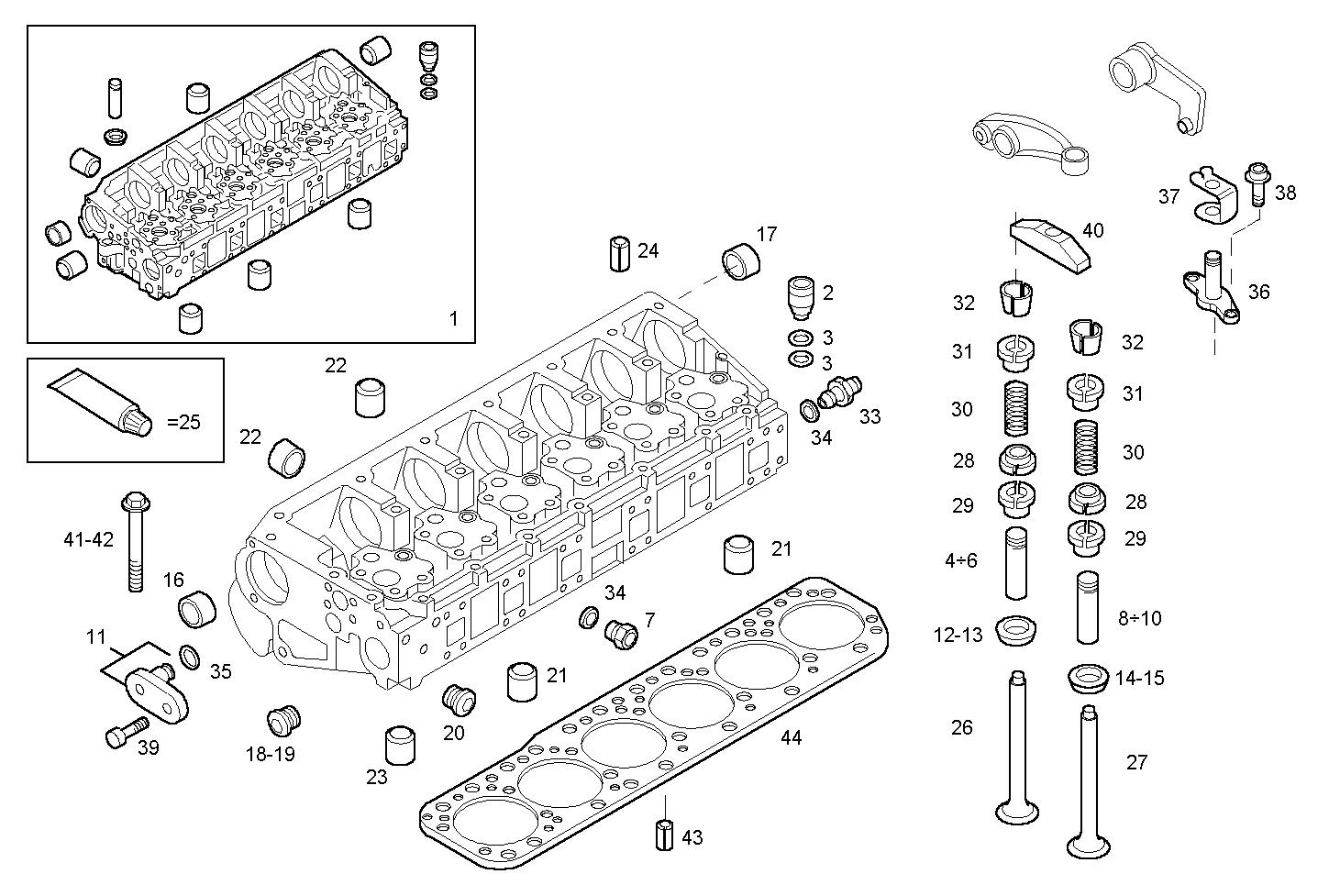

0600.171 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 500380776 CYLINDER HEAD ASSY
2 99476929 NOZZLE HOLDER SEAT
3 17279081 O-RING Ø26,7 MM SP=1,7 MM
4 500391479 VALVE GUIDE INTAKE
5 500391480 VALVE GUIDE +0,2 INTAKE
6 500391481 VALVE GUIDE +0,4 INTAKE
7 16992411 THREADED PLUG M16X1,5
8 500391476 VALVE GUIDE EXHAUST
9 500391477 VALVE GUIDE +0,2 EXHAUST
10 500391478 VALVE GUIDE +0,4 EXHAUST
11 500340761 LOCK PLUG ASSY
12 99466613 VALVE SEAT STD. INTAKE
13 500379595 VALVE SEAT +0.20 INTAKE
14 99466612 VALVE SEAT STD. EXHAUST
15 500379597 VALVE SEAT +0.20 EXHAUST
16 504003914 BUSH EXHAUST
17 504003915 BUSH
18 98472271 THREADED PLUG
19 500310146 THREADED PLUG
20 99430692 THREADED PLUG 1/2''
21 16991370 LOCK PLUG Ø45 MM
22 16990870 LOCK PLUG Ø28 MM
23 16990570 LOCK PLUG Ø20 MM
24 17257074 DOWEL PIN Ø6X18 MM
25 93162429 ADHESIVE/STICKER LOCTITE
26 504042366 INLET VALVE
27 504042367 EXHAUST VALVE
28 504000042 SPRING CAP
29 40101584 SHAFT SEAL
30 500321560 ENGINE VALV.SPRING
31 99430785 TAPPET
32 61320851 VALVE CONE
33 41031569 THREADED UNION M16X1,5 - M18X1,5 MM"
34 99489019 WASHER Ø16X24 MM SP=1,5 MM
35 17277981 O-RING 1,78x9,25
36 504001460 SPACING BAR
37 500376911 RETAINING SPRING
38 16707134 SOCKET-HEAD SCREW M8X20 MM
39 16586224 HEXAGON BOLT M8X1,25X16 MM
40 500388169 VALVE BRIDGE
41 99430334 HEXAGON BOLT
42 99430335 HEXAGON BOLT
43 17275510 DOWEL PIN Ø10 MM
44 500396535 CYL.HEAD GASKET
