F3AE0684G*B003

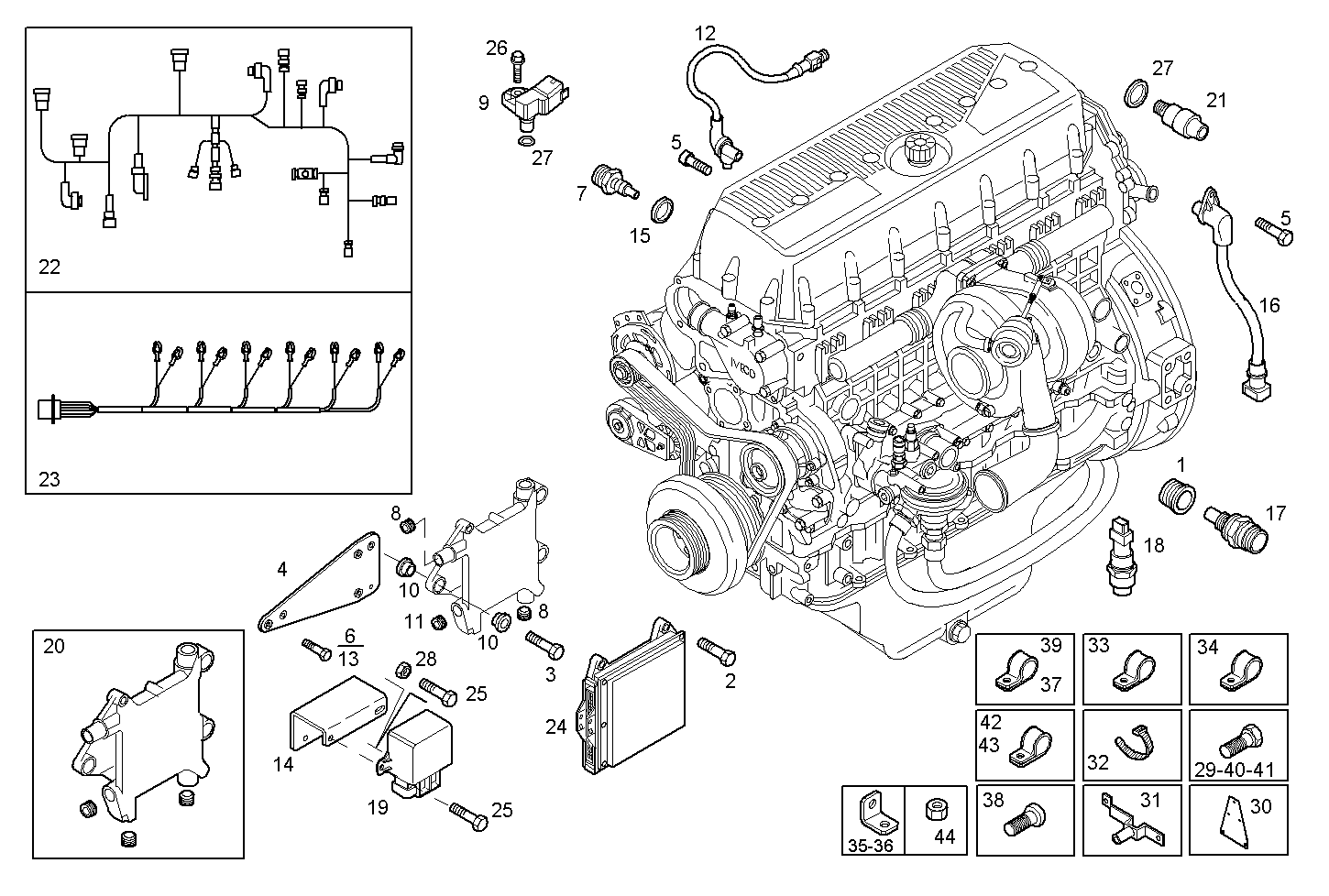

1700.020 ELECTRONIC CONTROL UNIT

Iveco/FPT ELECTRONIC CONTROL UNIT

Item Part number Description
1 504035912 THREADED UNION
2 16586625 HEXAGON BOLT M8X35 MM
3 16586825 HEXAGON BOLT M8X1.25X45 MM
4 500398687 SUPPORT [UP TO # 86373]
5 16688925 CYLIND-HEAD SCREW M6X10
6 16600224 HEXAGON BOLT M8X1,25X18 MM
7 98412656 TEMP. TRANSMITTER
8 98474481 THREADED PLUG
9 504073323 SENSOR AIR PRESS. & TEMPER. [FROM # 158928]
10 98498817 DOWEL
11 99430692 THREADED PLUG 1/2''
12 99450797 SENSOR camshaft.
13 16586824 HEXAGON BOLT M8X1,25X45 MM
14 504036533 SUPPORT
15 99489019 WASHER Ø16X24 MM SP=1,5 MM
16 500306772 SENSOR crankshaft.
17 500382599 TEMP. TRANSMITTER PRESS. & TEMPER.
18 500386057 TEMP. TRANSMITTER
19 500343161 RELAY
20 500371990 SUPPORT ASSY
21 500346371 CHOCKED FILTER INDIC. FILTRO BLOW-BY
22 504056457 SET OF WIRING
23 504009221 WIRE/CABLE FOR INJECTORS
24 8093994 ELECTR.CONTR.UNIT E.C.U.
25 16585724 HEXAGON BOLT M6X16 MM
26 16597225 HEXAGON BOLT M6X18 MM
27 42546555 O-RING [FROM # 158928]
28 17044625 HEXAGON NUT M6
29 16596924 HEXAGON BOLT M6X10 MM
30 504067009 RETAINER
31 500371778 FASTENING BRACKET
32 42099097 CABLE STRAP
33 17317599 FASTENING BRACKET
34 17317490 FASTENING BRACKET Ø30 MM
35 17316690 FASTENING BRACKET Ø20,5 MM
36 17316592 PIPE CLIP
37 17314990 FASTENING BRACKET
38 16689424 SOCKET-HEAD SCREW M6X30 MM
39 99455033 CLIP
40 16592225 HEXAGON BOLT M8X55 MM
41 16586325 HEXAGON BOLT M8X20 MM
42 10450990 PIPE CLIP
43 10450590 PIPE CLIP Ø18 MM
44 17044725 HEXAGON NUT M8
45 504079747 RETAINER [FROM # 86374]
