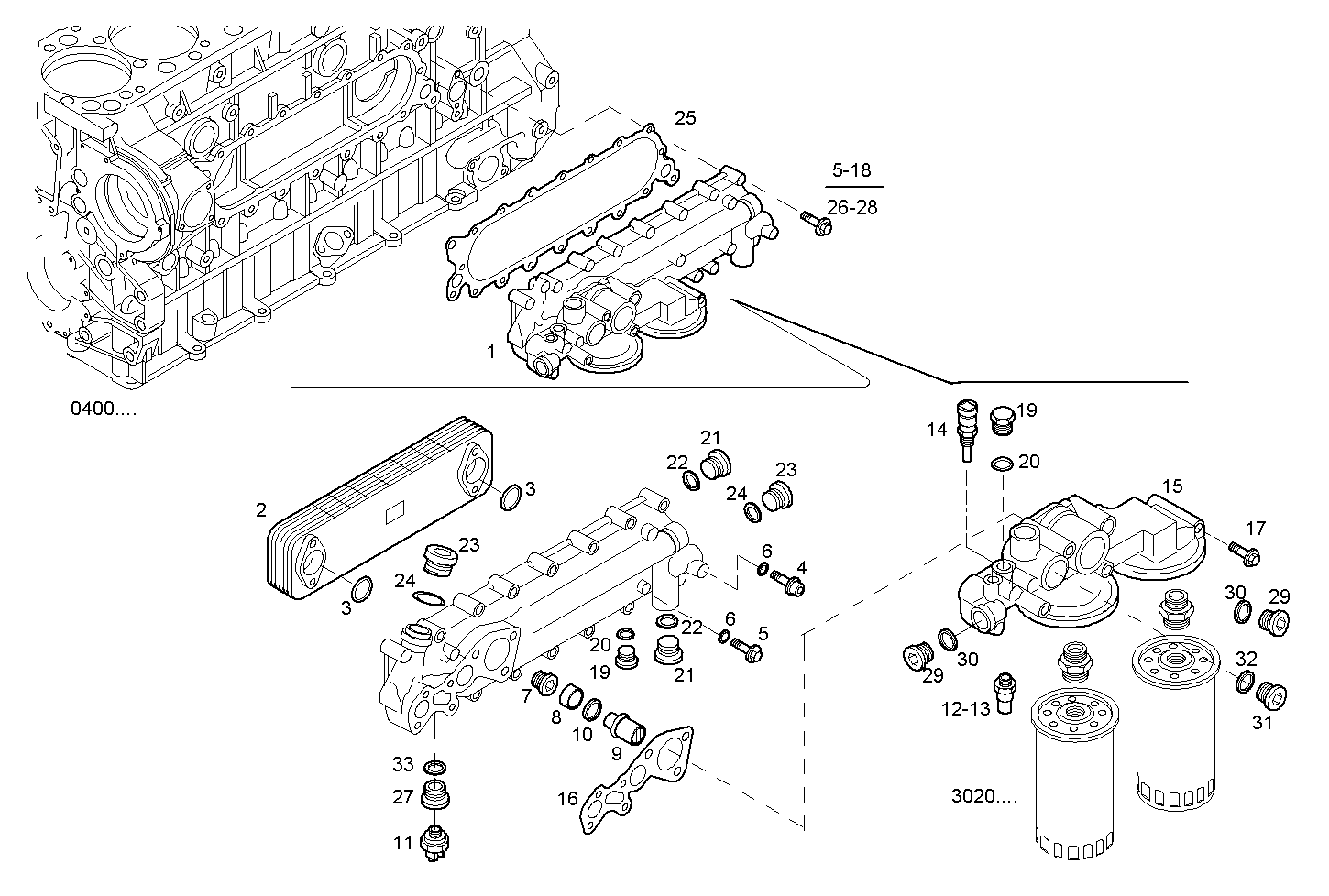

| Item |
Part number |
Description |
|
1 |
504066209 |
OIL/WATER HEAT EXCHANGER |
|
2 |
99434989 |
OIL COOLER |
|
3 |
17283581 |
O-RING �44,12 MM SP=2,62 MM |
|
4 |
16586625 |
HEXAGON BOLT M8X35 MM |
|
5 |
16586925 |
HEXAGON BOLT M8X50 MM |
|
6 |
98474303 |
WASHER �8X14 MM SP=2,3 MM |
|
7 |
99433799 |
THREADED PLUG M32X1,5 |
|
8 |
99433798 |
SPACING BAR �28 MM |
|
9 |
98498322 |
VALVE |
|
10 |
98494952 |
GASKET M35X1,5 |
|
11 |
500377533 |
SENSOR Pressure |
|
12 |
98445111 |
PRESSURE SWITCH BORLETTI |
|
13 |
98442879 |
PRESSURE SWITCH SIPEA |
|
14 |
500382599 |
TEMP. TRANSMITTER PRESS. & TEMPER. |
|
15 |
504066210 |
OIL FILTER SUPPORT |
|
16 |
504015752 |
GASKET |
|
17 |
16592324 |
HEXAGON BOLT M8X60 MM |
|
18 |
16598224 |
HEXAGON BOLT M8X90 MM |
|
19 |
16992411 |
THREADED PLUG M16X1,5 |
|
20 |
99489019 |
WASHER �16X24 MM SP=1,5 MM |
|
21 |
16993711 |
THREADED PLUG M35X1,5 |
|
22 |
99469380 |
SEAL GASKET �35 MM |
|
23 |
16993511 |
LOCK PLUG M28X1,5 |
|
24 |
99432291 |
SEAL GASKET �28 MM |
|
25 |
98497873 |
FLAT ENGINE GASKET |
|
26 |
16586725 |
HEXAGON BOLT M8X1.25X40 MM |
|
27 |
500356858 |
THREADED UNION |
|
28 |
504064192 |
HEXAGON BOLT M8X130 |
|
29 |
16993611 |
THREADED PLUG M32X1,5 |
|
30 |
99469379 |
WASHER D=32X42X2 |
|
31 |
16994011 |
LOCK PLUG M24X1,5 |
|
32 |
99489023 |
SPRING WASHER D=24X33X1,5 |
|
33 |
99489018 |
SEAL GASKET �14X22 MM SP=1,5 MM |
