F3AE0684J*B901

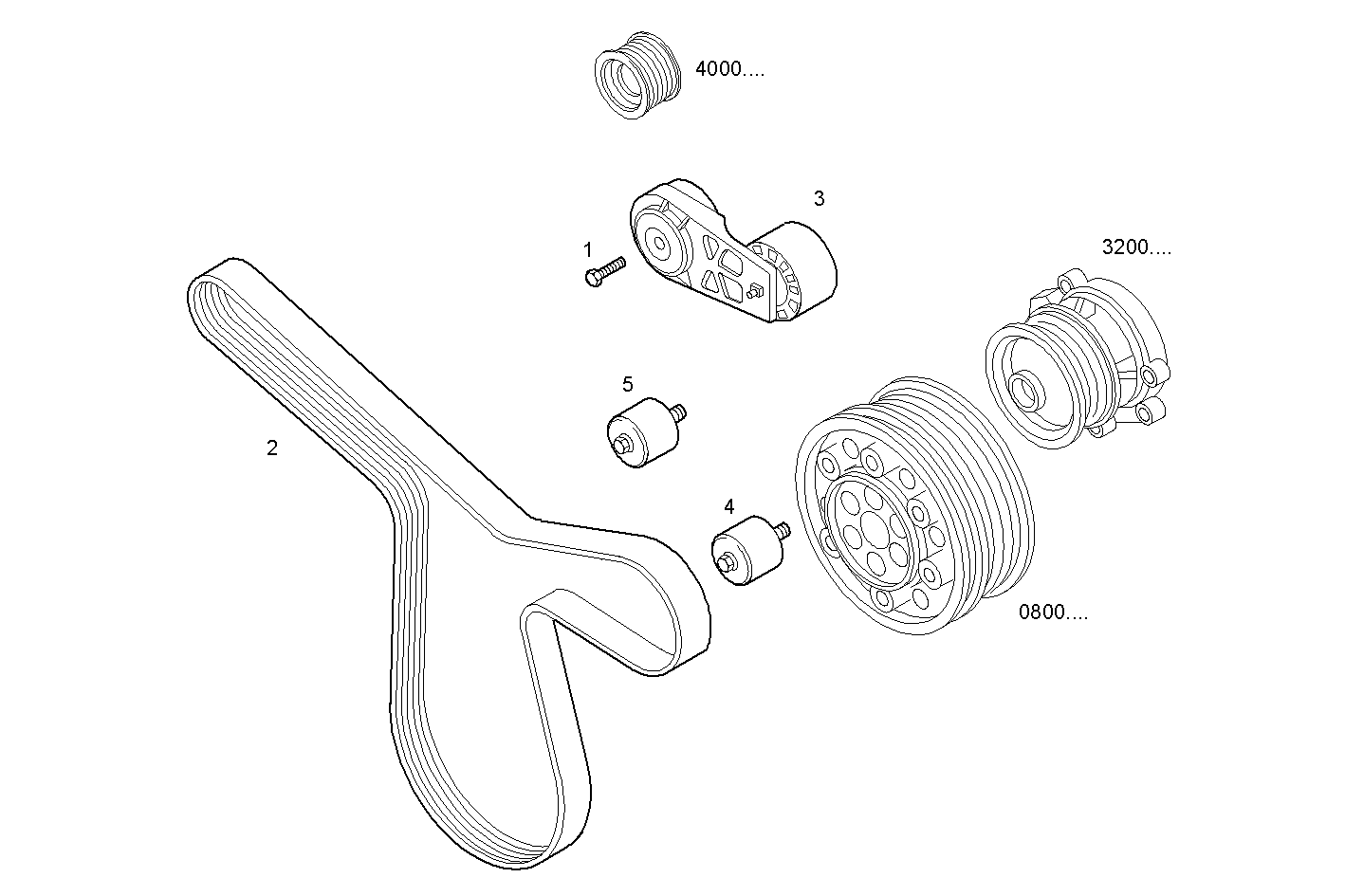

3240.144/01 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 16676834 | HEXAGON BOLT M10X70 MM |
| 2 | 504029021 | V-BELT |
| 3 | 504046191 | BELT TENSIONER |
| 4 | 504006261 | BELT TENSIONER ASSY |
| 5 | 504068521 | BELT TENSIONER |
