F3AE0684J*B902

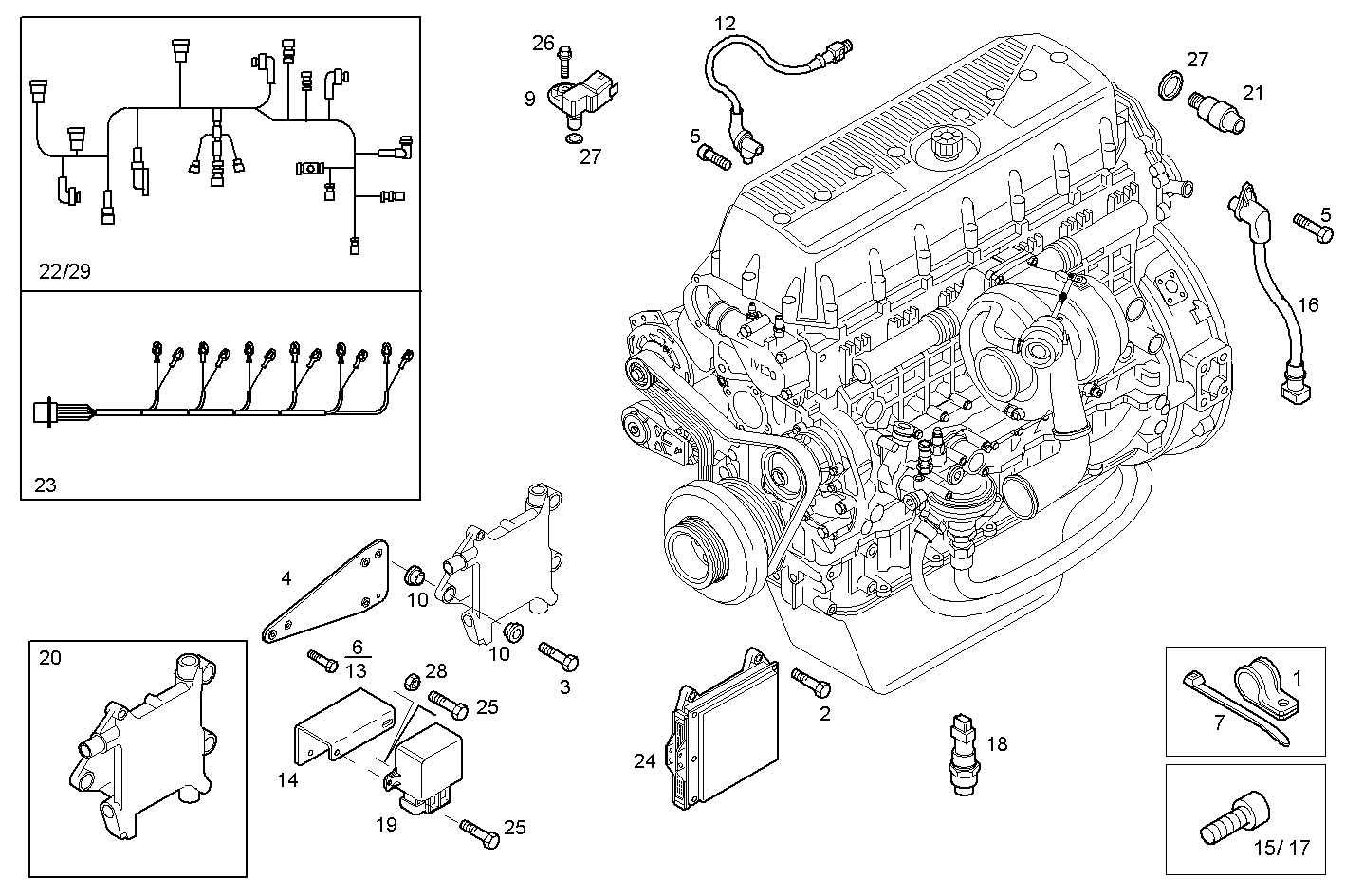

1700.011 ELECTRONIC CONTROL UNIT [FROM # 47026] [FROM # 47026]

Iveco/FPT ELECTRONIC CONTROL UNIT

Item Part number Description
1 10450990 PIPE CLIP
2 16585724 HEXAGON BOLT M6X16 MM
3 16586624 HEXAGON BOLT M8X35 MM
4 504079747 RETAINER [FROM # 86374]
5 16688925 CYLIND-HEAD SCREW M6X10
6 16600224 HEXAGON BOLT M8X1,25X18 MM
7 42099097 CABLE STRAP
9 504073323 SENSOR AIR PRESS. & TEMPER. [FROM # 158928]
10 98498817 DOWEL
12 99450797 SENSOR camshaft.
13 16586824 HEXAGON BOLT M8X1,25X45 MM
14 504036533 SUPPORT
15 16596924 HEXAGON BOLT M6X10 MM
16 500306772 SENSOR crankshaft.
17 16689424 SOCKET-HEAD SCREW M6X30 MM
18 500386057 TEMP. TRANSMITTER
19 500343161 RELAY
20 500371990 SUPPORT ASSY
21 500346371 CHOCKED FILTER INDIC. FILTRO BLOW-BY
22 504074628 SET OF WIRING [UP TO # 62976]
23 504009221 WIRE/CABLE FOR INJECTORS
24 8093994 ELECTR.CONTR.UNIT E.C.U.
26 16597224 HEXAGON BOLT M6X18 MM
27 42546555 O-RING [FROM # 158928]
28 17044621 HEXAGON NUT M6
29 504084159 SET OF WIRING [FROM # 62977]
