F3AE0684M*B903

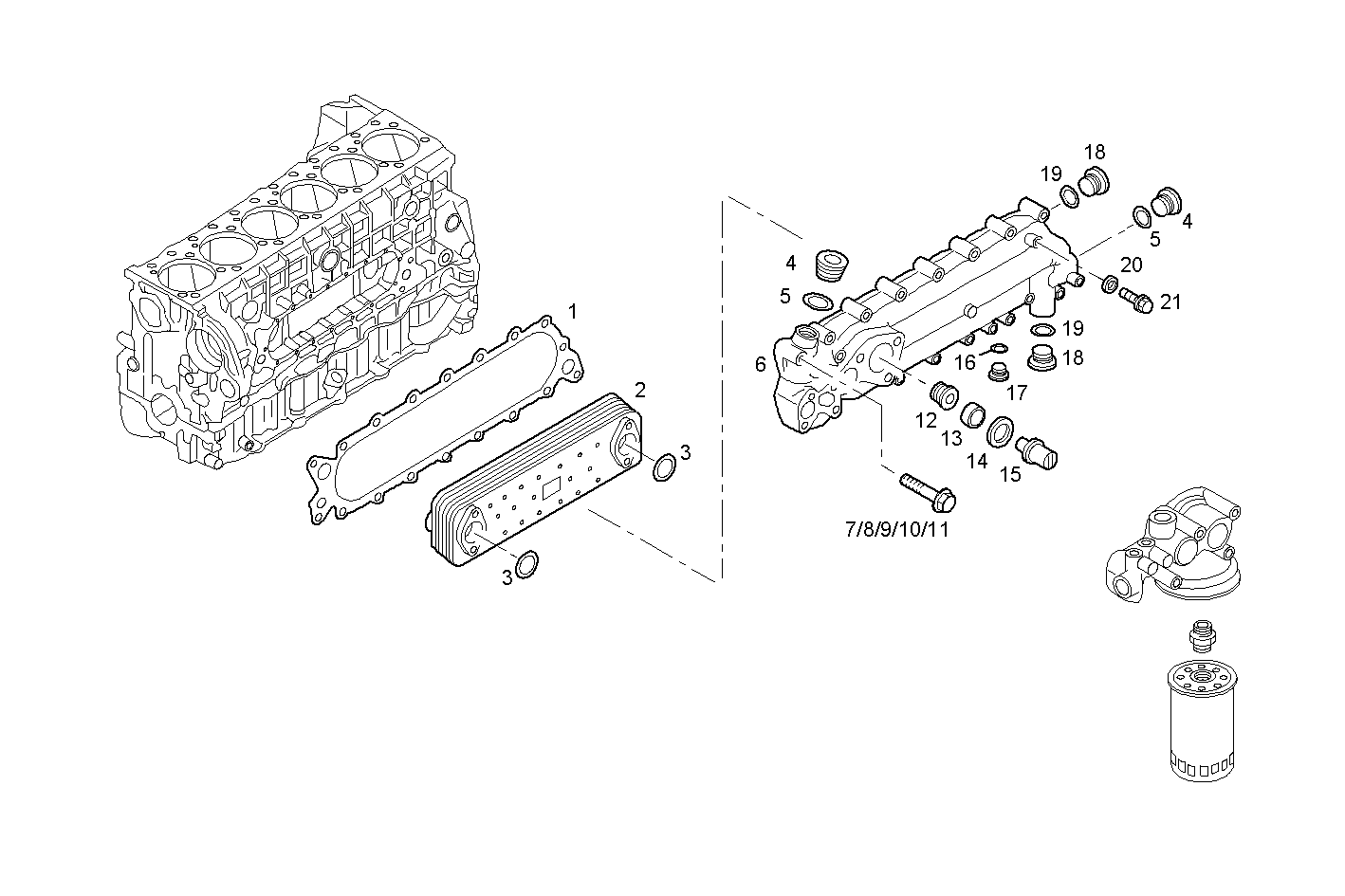

3150.016 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 504045796 FLAT ENGINE GASKET
2 99434989 OIL COOLER
3 17283581 O-RING Ø44,12 MM SP=2,62 MM
4 16993511 LOCK PLUG M28X1,5
5 99432291 SEAL GASKET Ø28 MM
6 504140957 HEAT EXANGER BODY
7 16598224 HEXAGON BOLT M8X90 MM
8 16586725 HEXAGON BOLT M8X1.25X40 MM
9 504064192 HEXAGON BOLT M8X130
10 16586925 HEXAGON BOLT M8X50 MM
11 16673735 HEXAGON BOLT M8X25 MM
12 99433799 THREADED PLUG M32X1,5
13 99433798 SPACING BAR Ø28 MM
14 98494952 GASKET M35X1,5
15 98498322 VALVE
16 99489019 WASHER Ø16X24 MM SP=1,5 MM
17 16992415 THREADED PLUG M16X1,5
18 16993711 THREADED PLUG M35X1,5
19 99469380 SEAL GASKET Ø35 MM
20 98474303 WASHER Ø8X14 MM SP=2,3 MM
21 16586625 HEXAGON BOLT M8X35 MM
