F3AE0684N*E907

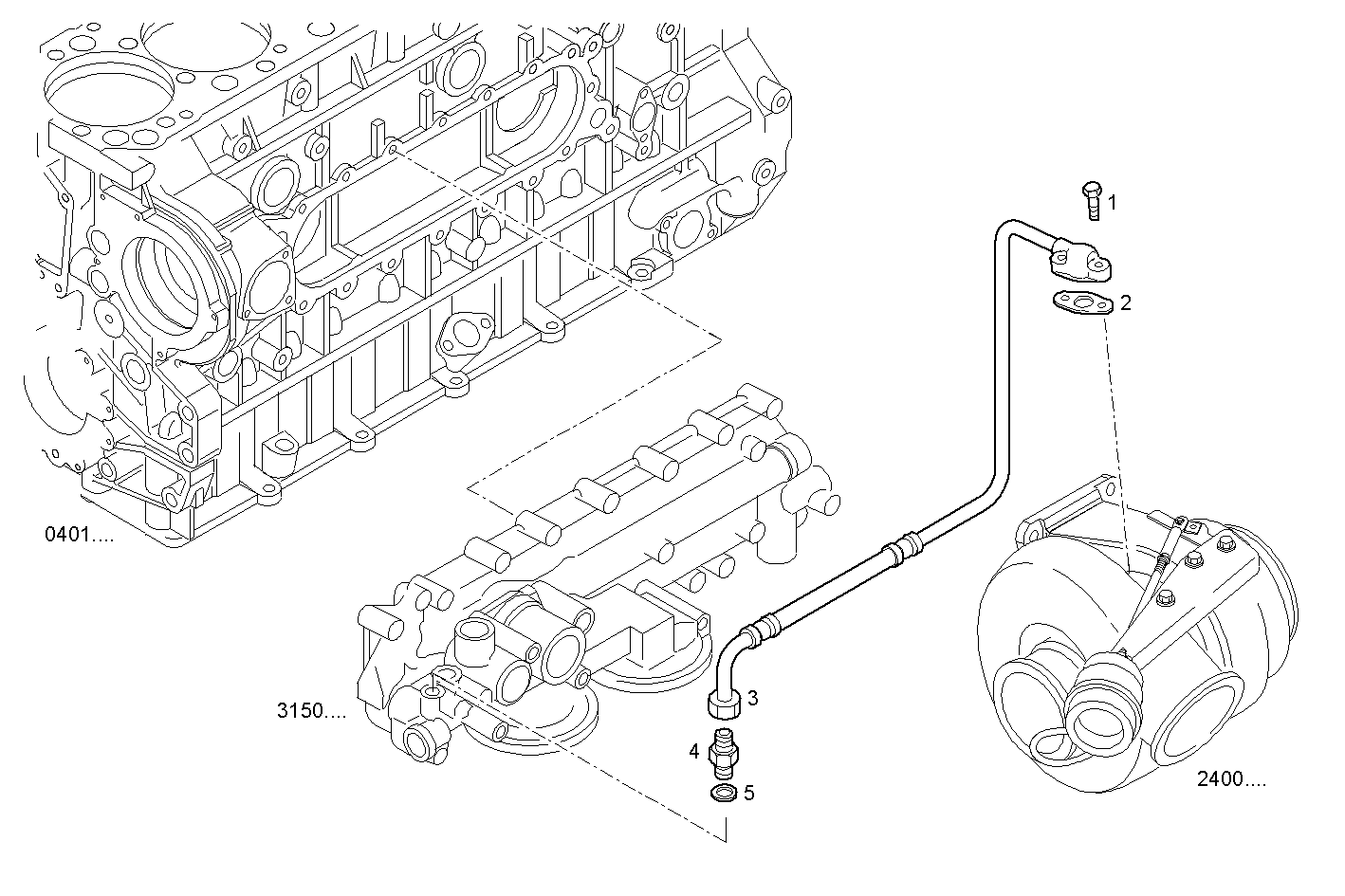

3064.019 OIL DELIVERY LINE

Iveco/FPT OIL DELIVERY LINE

Item Part number Description
1 16586625 HEXAGON BOLT M8X35 MM
2 61318303 GASKET
3 504215039 OIL LINE
4 504081274 THREADED UNION M16X1,5 - M18X1,5
5 99489019 WASHER Ø16X24 MM SP=1,5 MM
