F3AE0684P*E904

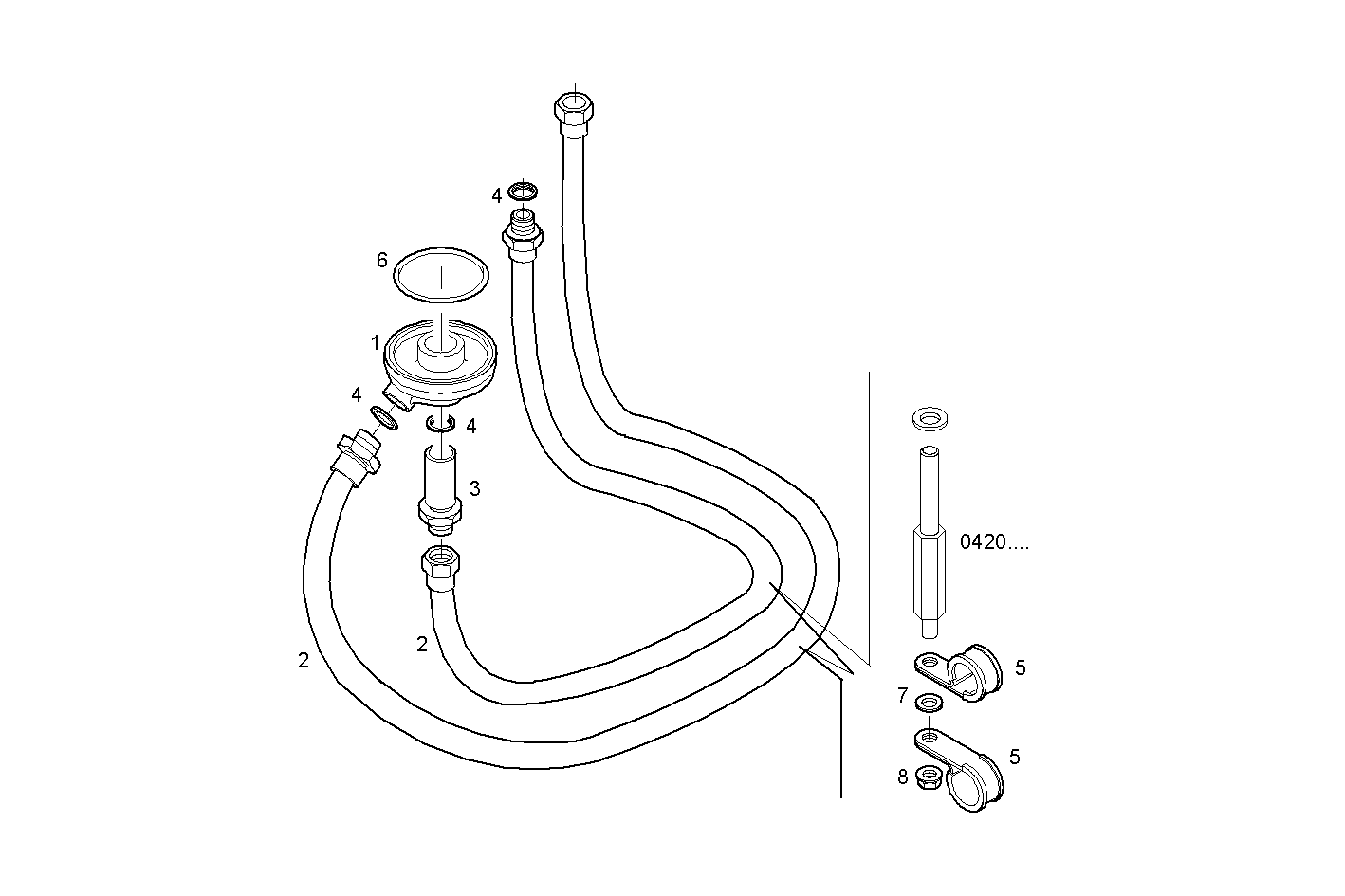

3026.002 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504005569 | SUPPORT |
| 2 | 504002665 | HOSE |
| 3 | 500382730 | PIPE SOCKET |
| 4 | 99434480 | SEAL GASKET Ø30X40 MM |
| 5 | 17317390 | FASTENING BRACKET Ø28 MM x M8 |
| 6 | 17291281 | O-RING Ø94,84 MM SP=3,53 MM |
| 7 | 17094924 | WASHER Ø8X16 MM |
| 8 | 17044721 | HEXAGON NUT M8X1,25 |
