F3AE0684P*E905

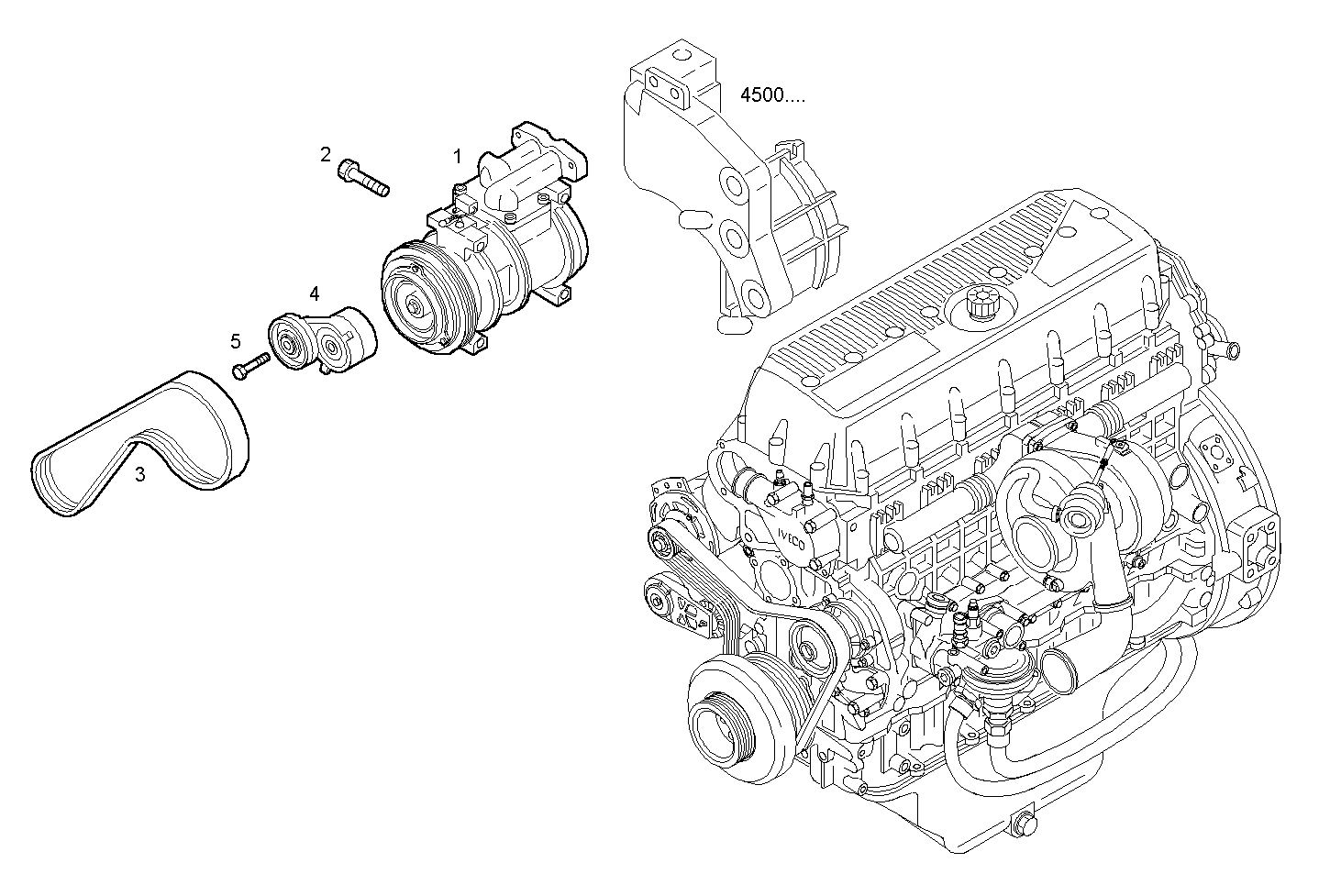

3900.029 COMPRESSOR AIR CONDITIONING
| Item | Part number | Description |
|---|---|---|
| 1 | 504078610 | AIR COND.COMPRESS. ASSY |
| 2 | 16598325 | HEXAGON BOLT M8X100 MM |
| 3 | 504107546 | V-BELT |
| 4 | 500350419 | BELT TENSIONER |
| 5 | 16592425 | HEXAGON BOLT M8X65 MM |
