F3AE9687C*E001

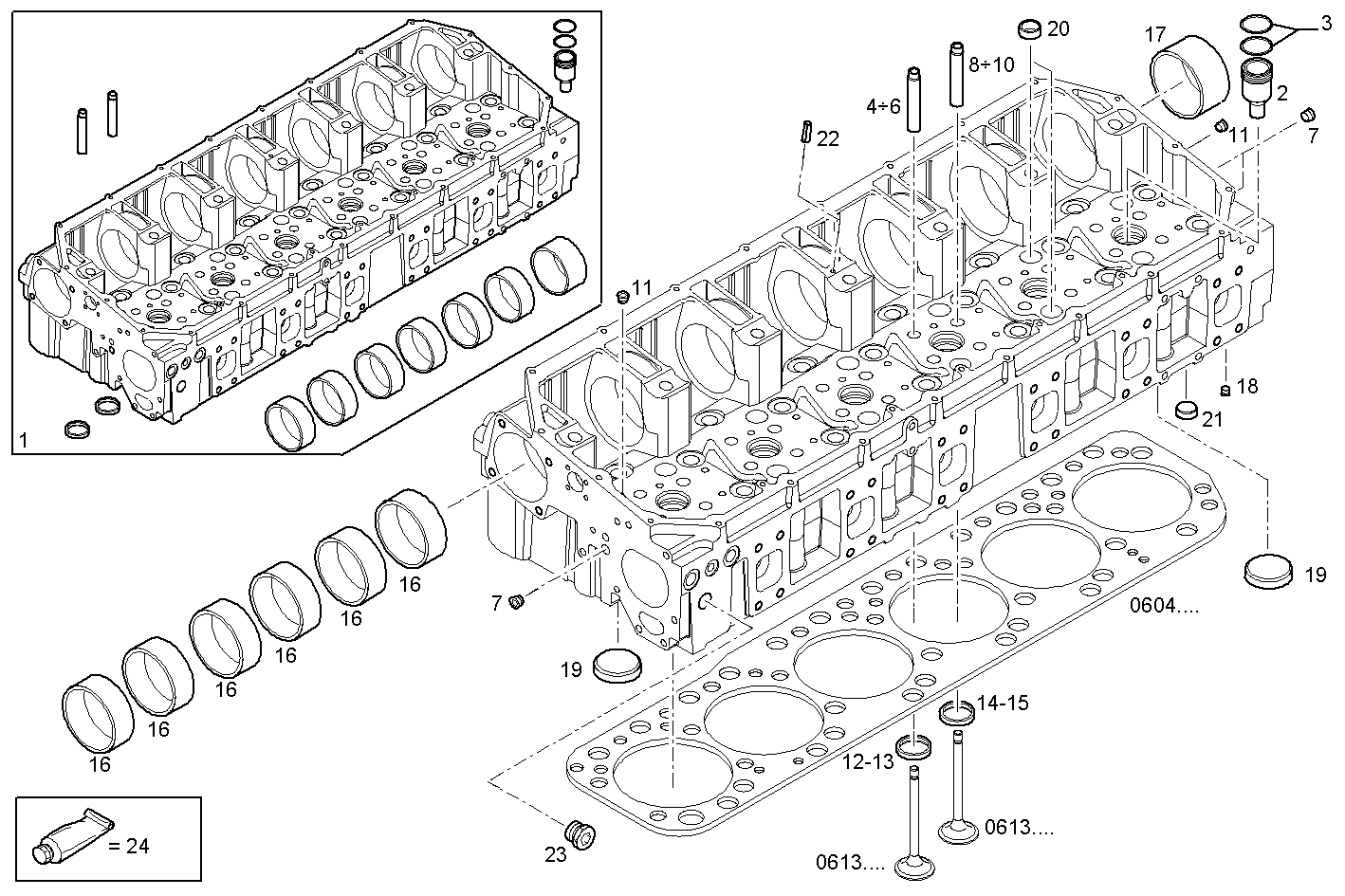

0610.009 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 504207966 | CYLINDER HEAD |
| 2 | 99476929 | NOZZLE HOLDER SEAT |
| 3 | 17279081 | O-RING Ø26,7 MM SP=1,7 MM |
| 4 | 500391479 | VALVE GUIDE INTAKE |
| 5 | 500391480 | VALVE GUIDE +0,2 INTAKE |
| 6 | 500391481 | VALVE GUIDE +0,4 INTAKE |
| 7 | 99472271 | THREADED PLUG |
| 8 | 500391476 | VALVE GUIDE EXHAUST |
| 9 | 500391477 | VALVE GUIDE +0,2 EXHAUST |
| 10 | 500391478 | VALVE GUIDE +0,4 EXHAUST |
| 11 | 504138062 | PLUG Ø10 MM |
| 12 | 99466613 | VALVE SEAT STD. INTAKE |
| 13 | 500379595 | VALVE SEAT +0.20 INTAKE |
| 14 | 99466612 | VALVE SEAT STD. EXHAUST |
| 15 | 500379597 | VALVE SEAT +0.20 EXHAUST |
| 16 | 504078222 | BUSH |
| 17 | 504078223 | BUSH |
| 18 | 504138060 | LOCK PLUG [FROM # 59639] |
| 19 | 16991370 | LOCK PLUG Ø45 MM |
| 20 | 16990870 | LOCK PLUG Ø28 MM |
| 21 | 14282170 | LOCK PLUG Ø20 MM |
| 22 | 17257074 | DOWEL PIN Ø6X18 MM |
| 22 | 17255674 | DOWEL PIN Ø5 MM [FROM # 76547] |
| 23 | 99430692 | THREADED PLUG 1/2'' |
| 24 | 2992695 | ADHESIVE/STICKER LOCTITE |
