F3AE9687C*E001

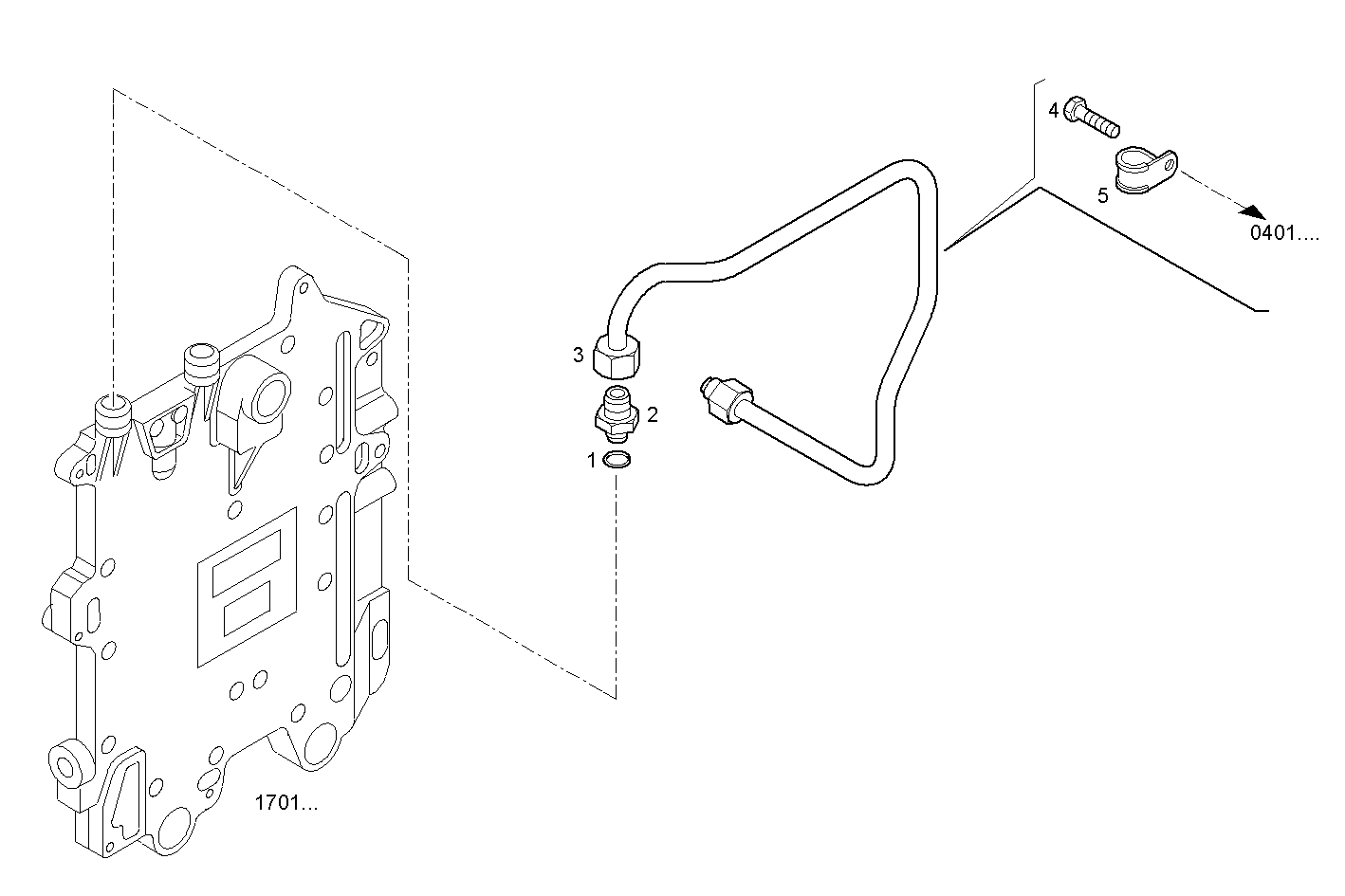

2032.001 FUEL LINES - INLET TO E.C.U.

Iveco/FPT FUEL LINES - INLET TO E.C.U.

Item Part number Description
1 99489019 WASHER Ø16X24 MM SP=1,5 MM
2 504081274 THREADED UNION M16X1,5 - M18X1,5
3 504146524 FUEL LINE
4 16597925 HEXAGON BOLT M8X14 MM
5 17316592 PIPE CLIP
