F3BE0681M*B722

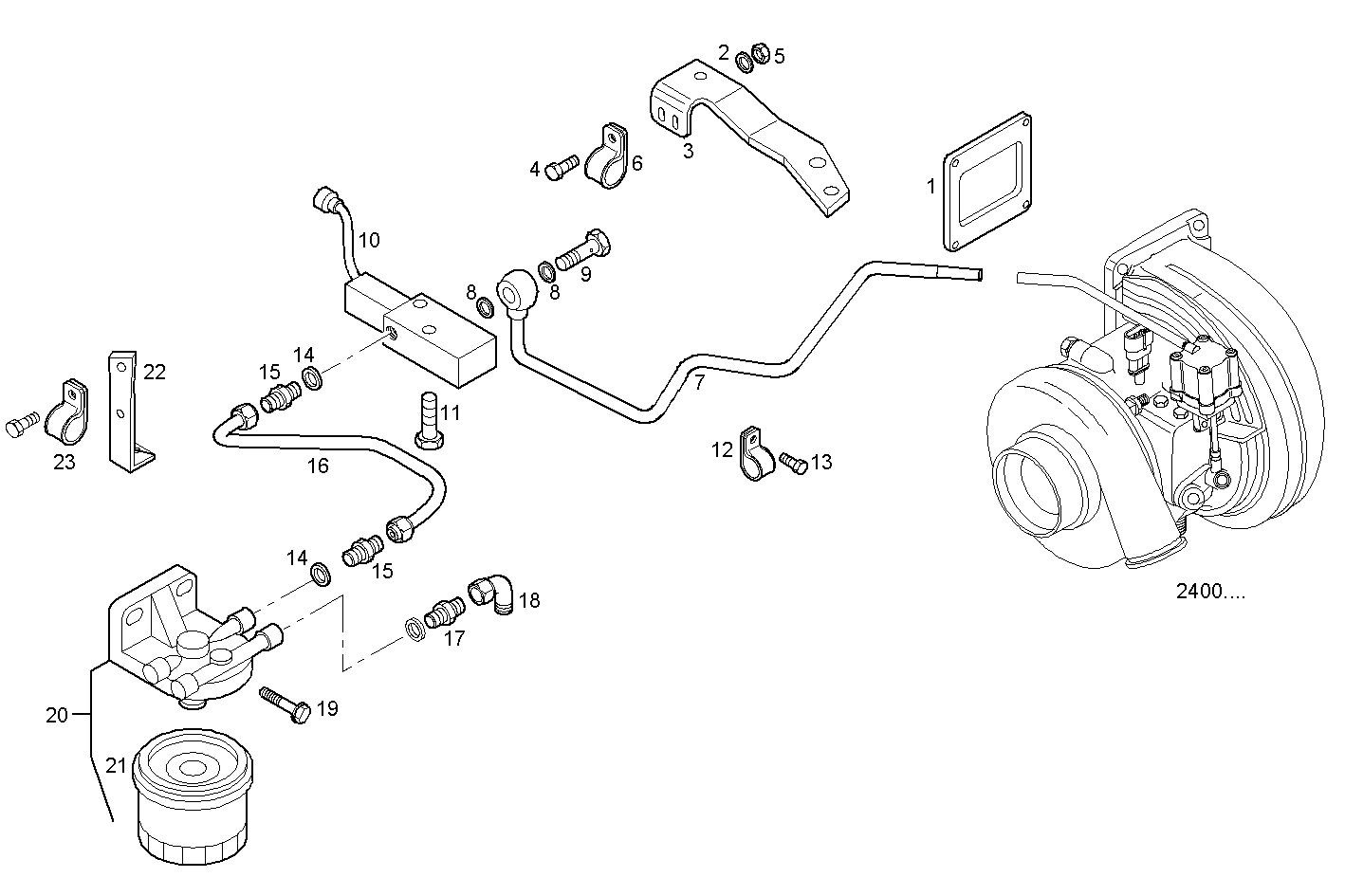

2406.004 CONTROL VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 98451118 | GASKET |
| 2 | 17088774 | WASHER Ø6 MM |
| 3 | 504056221 | RETAINER |
| 4 | 18137825 | HEXAGON BOLT M6X16 |
| 5 | 17152725 | NUT M6 |
| 6 | 17315699 | FASTENING BRACKET |
| 7 | 504036101 | WATER PIPE |
| 8 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 9 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 10 | 504203275 | VALVE |
| 11 | 16591925 | HEXAGON BOLT M6X50 MM |
| 12 | 17316392 | CLIP |
| 13 | 16597924 | HEXAGON BOLT M8X14 MM |
| 14 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 15 | 504081276 | THREADED UNION M14X1,5 |
| 16 | 500344424 | PIPE |
| 17 | 41285128 | THREADED UNION M12X1,5 |
| 18 | 41029796 | ELBOW COUPLING |
| 19 | 16587125 | HEXAGON BOLT M10X25 MM |
| 20 | 500344293 | FILTER AIR ASSY |
| 21 | 500339085 | FILTERING CARTRIDGE |
| 22 | 41231269 | SUPPORT |
| 23 | 500391414 | FASTENING BRACKET |
