F3BE0681M*B722

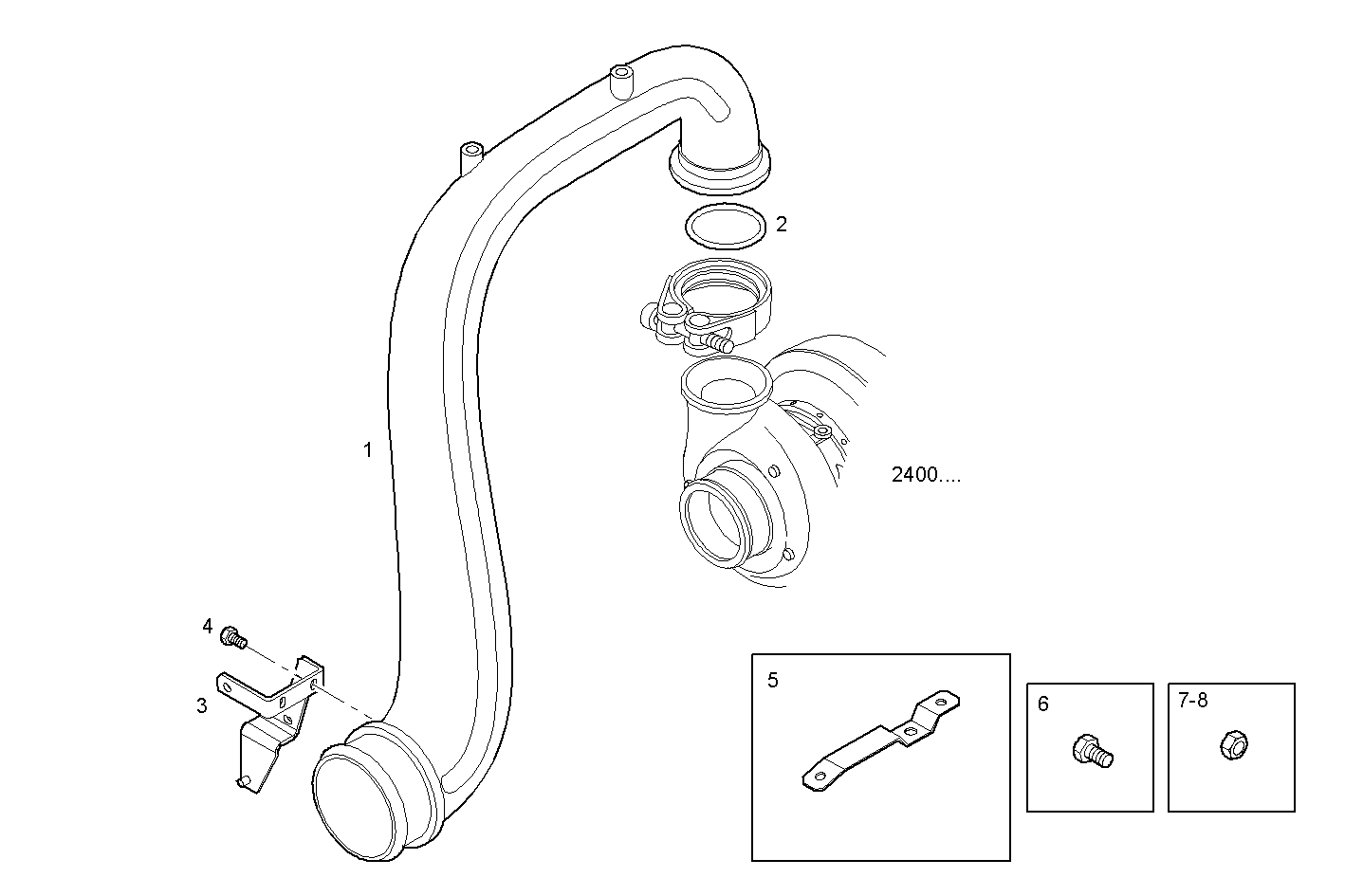

2430.000 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 500398426 | PIPE |
| 2 | 17284681 | O-RING Ø61,6 MM SP=2,62 MM |
| 3 | 41270498 | SUPPORT |
| 4 | 16673535 | HEXAGON BOLT M8X16 MM |
| 5 | 504031291 | SUPPORT |
| 6 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 7 | 17044725 | HEXAGON NUT M8 |
| 8 | 16750235 | HEXAGON NUT M8 |
