Catalogue Menu
F3BE0681M*B722

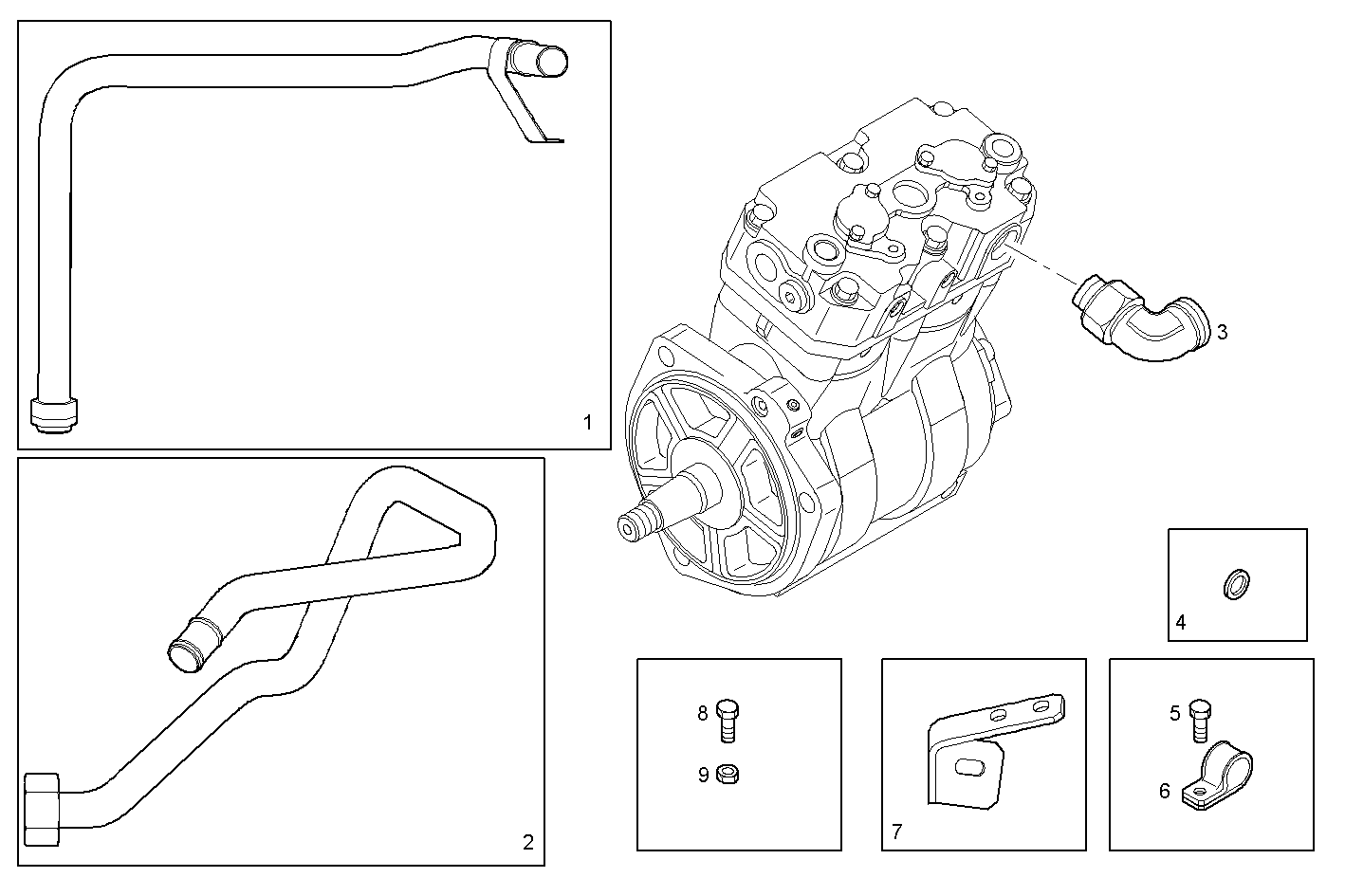

3819.002 AIR COMPESSOR SUCTION
| Item | Part number | Description |
|---|---|---|
| 1 | 500354438 | SUCTION LINE |
| 2 | 504010338 | AIR PIPE/DUCT |
| 3 | 99456380 | ELBOW COUPLING M26X1,5 - M36X2 |
| 4 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 5 | 16597925 | HEXAGON BOLT M8X14 MM |
| 6 | 17317390 | FASTENING BRACKET Ø28 MM x M8 |
| 7 | 41218148 | SUPPORT |
| 8 | 16673735 | HEXAGON BOLT M8X25 MM |
| 9 | 16750235 | HEXAGON NUT M8 |
