F3BE0681M*B722

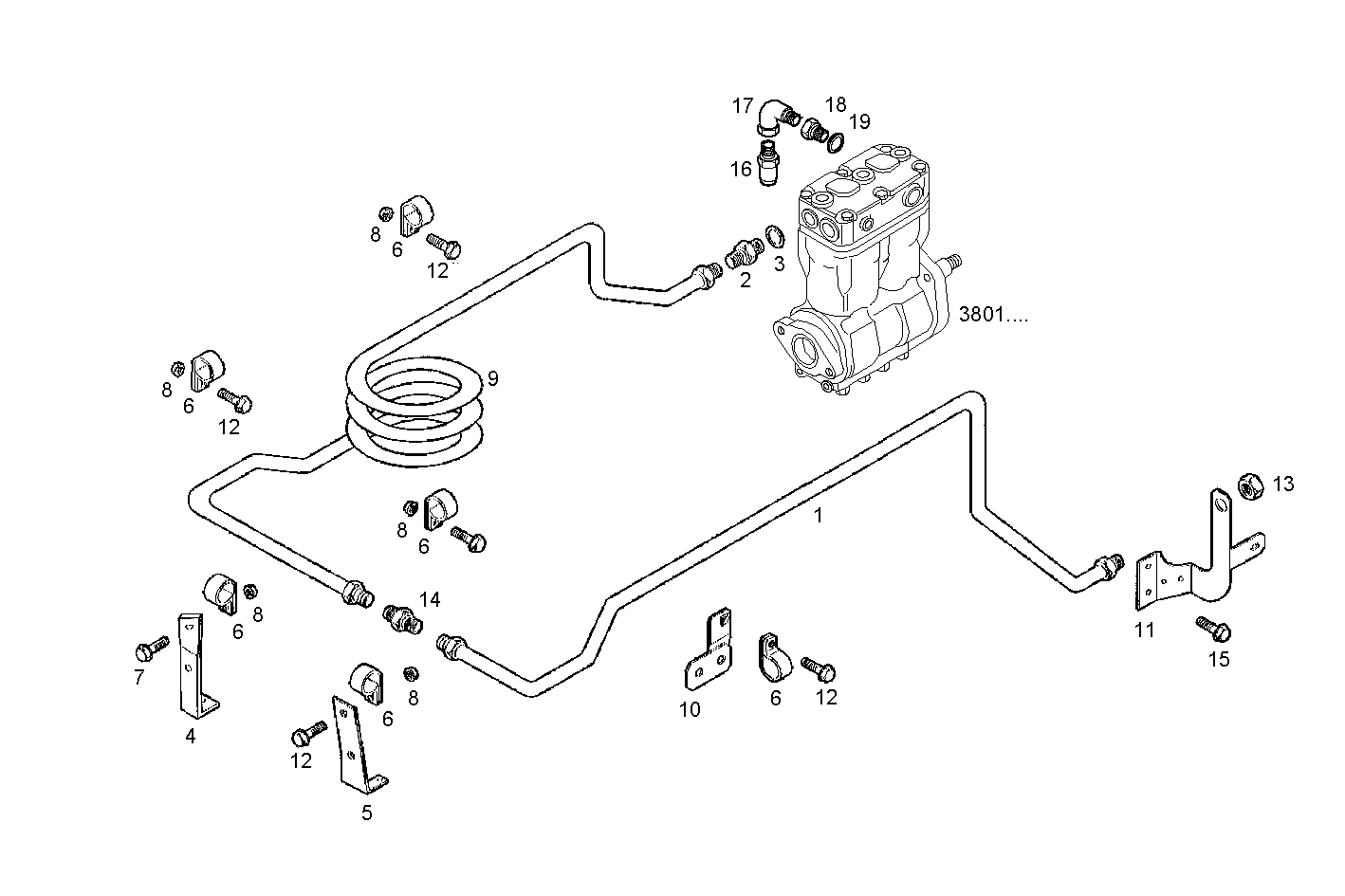

3820.001 COMPRESSOR LINE SYSTEM
| Item |
Part number |
Description |
|
1 |
41231261 |
AIR PIPE/DUCT |
|
2 |
61599713 |
THREADED UNION M26X1,5 |
|
3 |
16508560 |
WASHER Ø26X31 MM |
|
4 |
41231269 |
SUPPORT |
|
5 |
504033965 |
SUPPORT |
|
6 |
41202595 |
FASTENING BRACKET |
|
7 |
16673735 |
HEXAGON BOLT M8X25 MM |
|
8 |
17044735 |
NUT M8 |
|
9 |
41232011 |
LINE |
|
10 |
500361656 |
SUPPORT |
|
11 |
41231259 |
SUPPORT |
|
12 |
16673635 |
HEXAGON BOLT M8X1.25X20 |
|
13 |
16509111 |
NUT |
|
14 |
16502014 |
THREADED UNION |
|
15 |
18138325 |
HEXAGON BOLT M8X16 MM |
|
16 |
42087093 |
PIPE SOCKET M12X1,5 |
|
17 |
98427977 |
ELBOW COUPLING M12X1,5 |
|
18 |
99476542 |
THREADED UNION M12X1,5 |
|
19 |
16508060 |
SEAL GASKET Ø12X15,5 MM |
