F3BE0684A*B001

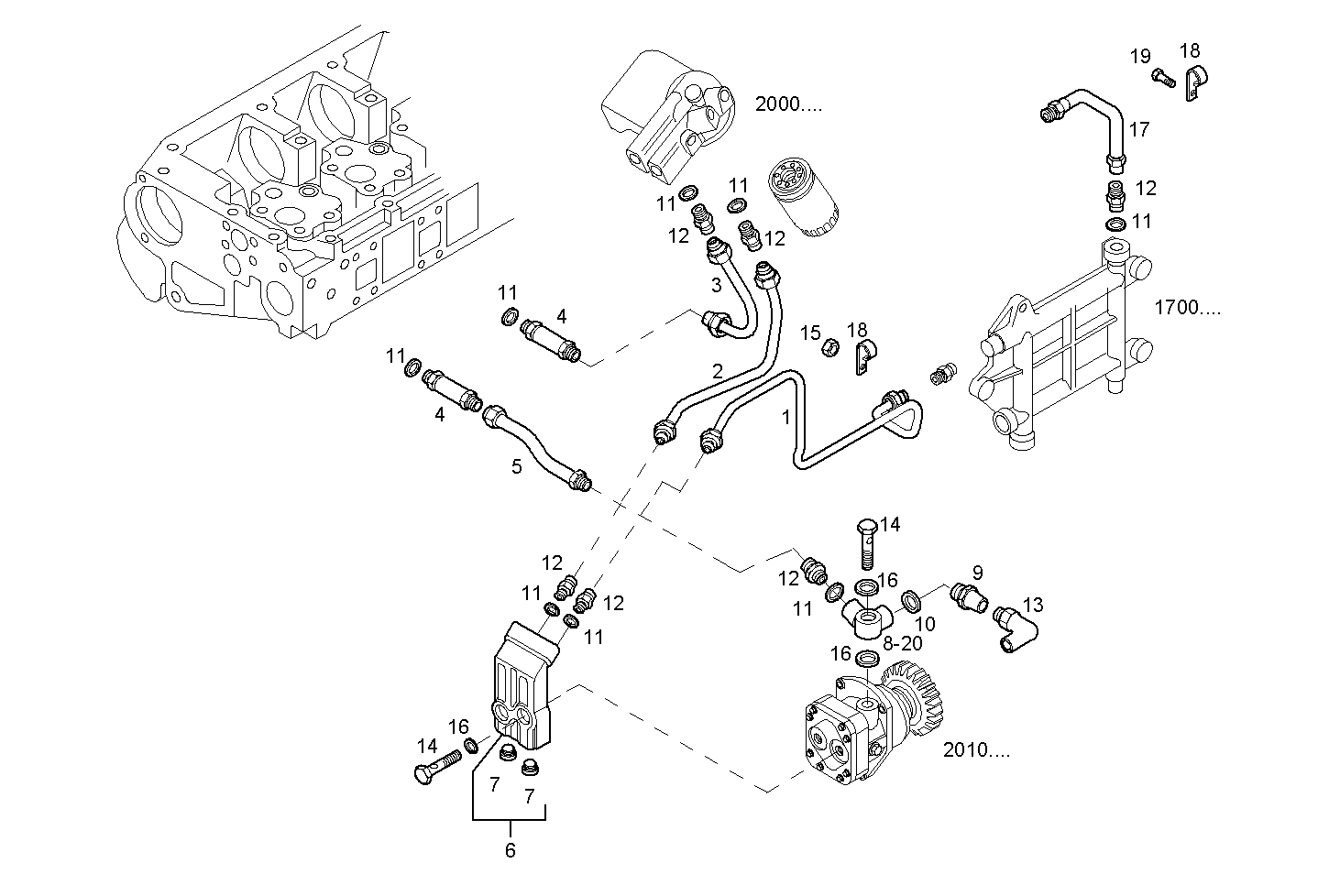

2030.188 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 504052787 FUEL LINE
2 500352450 FUEL LINE
3 500352453 FUEL LINE
4 500310076 PIPE SOCKET M16X1,5 - M18X1,5
5 500352447 FUEL LINE
6 500314313 PIPE SOCKET ASSY
7 98472271 THREADED PLUG
8 500348306 PIPE SOCKET
9 500328251 VALVE 0,2-0,3 BAR
10 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
11 99489019 WASHER Ø16X24 MM SP=1,5 MM
12 41031569 THREADED UNION M16X1,5 - M18X1,5 MM"
13 500350162 ELBOW COUPLING
14 4864084 BANJO BOLT M16X1,5
15 17152821 NUT M8 [up to 555939]
16 98474309 WASHER Ø16X24 MM SP=1,9 MM
17 500348304 FUEL LINE
18 17316590 PIPE CLIP Ø12 MM
19 16597924 HEXAGON BOLT M8X14 MM
20 504040951 PIPE SOCKET [UP TO # 38208]
