F3BE0684E*B001

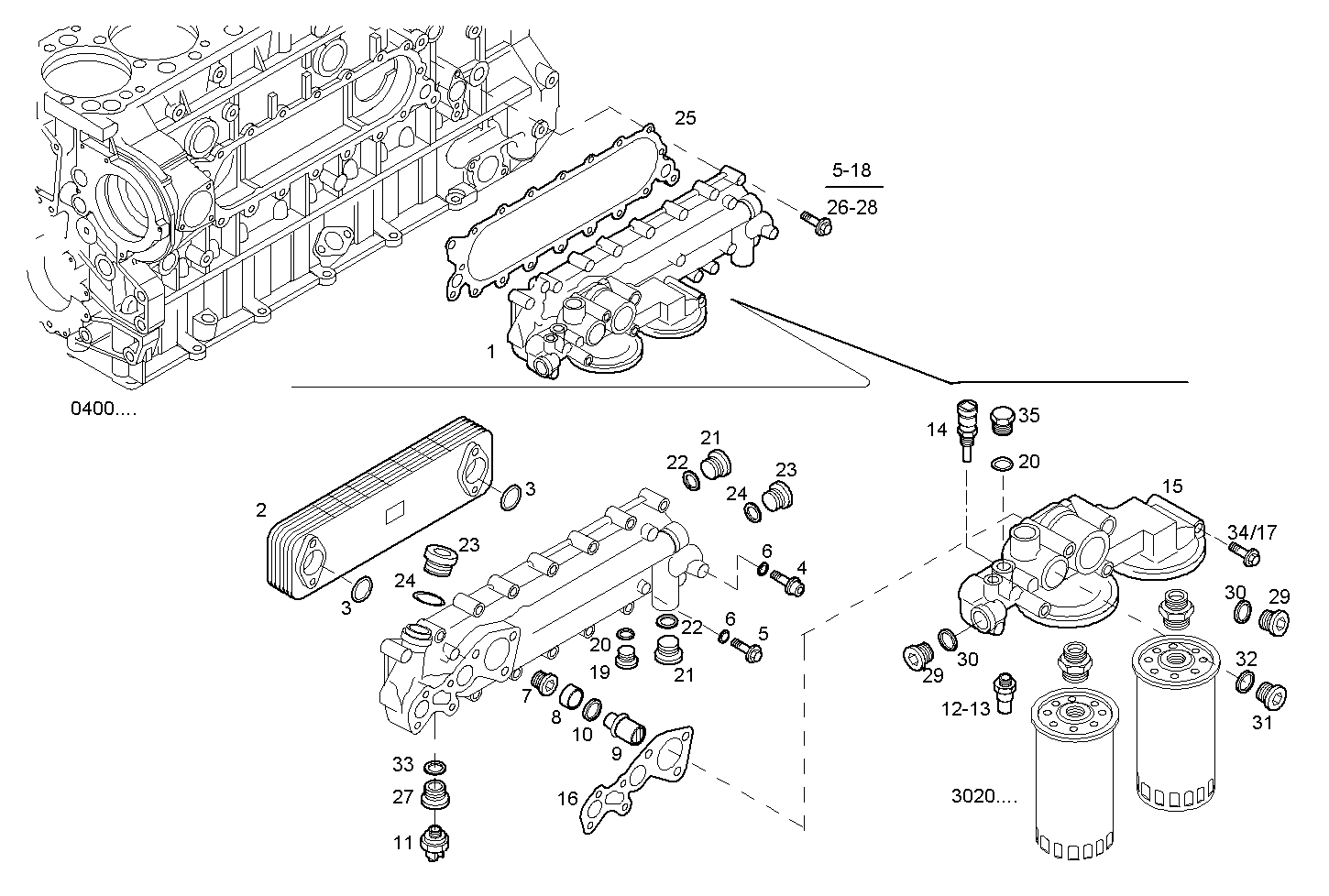

3100.113 OIL - WATER HEAT EXCHANGER [FROM # 46936] [FROM # 46936]

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 504066216 OIL/WATER HEAT EXCHANGER
2 98498467 OIL COOLER
3 17283581 O-RING Ø44,12 MM SP=2,62 MM
4 16586625 HEXAGON BOLT M8X35 MM
5 16586925 HEXAGON BOLT M8X50 MM
6 98474303 WASHER Ø8X14 MM SP=2,3 MM
7 99433799 THREADED PLUG M32X1,5
8 99433798 SPACING BAR Ø28 MM
9 98498322 VALVE
10 98494952 GASKET M35X1,5
11 500377533 SENSOR Pressure
12 98445111 PRESSURE SWITCH BORLETTI
13 98442879 PRESSURE SWITCH SIPEA
14 500382599 TEMP. TRANSMITTER PRESS. & TEMPER.
15 504066210 OIL FILTER SUPPORT
16 504015752 GASKET
17 504064190 HEXAGON BOLT
18 504064192 HEXAGON BOLT M8X130
19 16992411 THREADED PLUG M16X1,5
20 99489019 WASHER Ø16X24 MM SP=1,5 MM
21 16993711 THREADED PLUG M35X1,5
22 99469380 SEAL GASKET Ø35 MM
23 16993511 LOCK PLUG M28X1,5
24 99432291 SEAL GASKET Ø28 MM
25 98497873 FLAT ENGINE GASKET
26 16586724 SCREW M8X1,25X40 MM
27 500356858 THREADED UNION
28 16598224 HEXAGON BOLT M8X90 MM
29 16993611 THREADED PLUG M32X1,5
30 99469379 WASHER D=32X42X2
31 16994011 LOCK PLUG M24X1,5
32 99489023 SPRING WASHER D=24X33X1,5
33 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
34 16592324 HEXAGON BOLT M8X60 MM
35 4741616 THREADED UNION M16X1.5
