F3BE0684E*B101

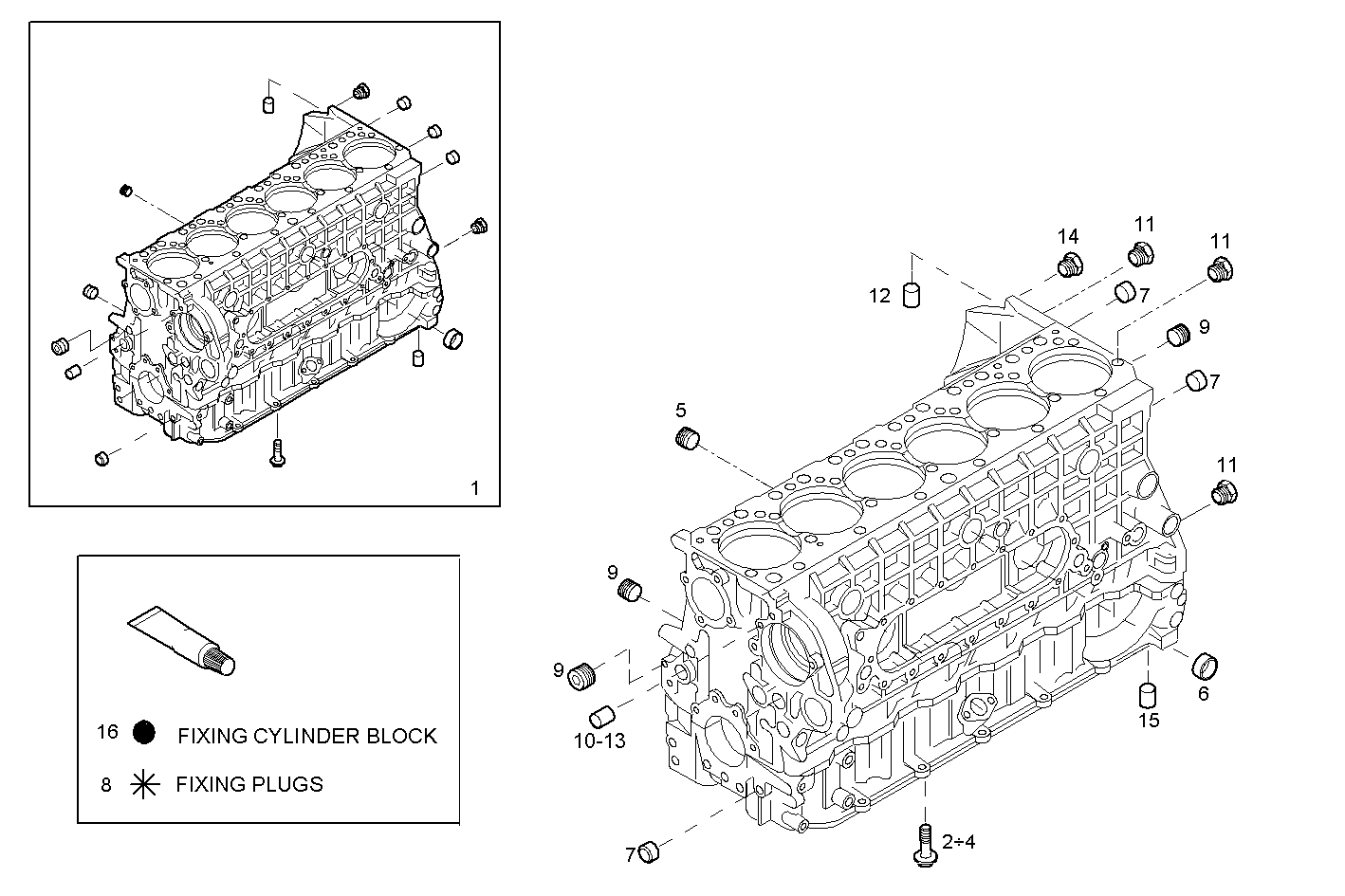

0401.018 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 504105810 | CRANKCASE ASSY |
| 2 | 98495527 | HEXAGON BOLT |
| 3 | 99432869 | HEXAGON BOLT M12X125 MM |
| 4 | 99433863 | HEXAGON BOLT M12X58 MM |
| 5 | 16990670 | LOCK PLUG Ø22 MM |
| 6 | 16991370 | LOCK PLUG Ø45 MM |
| 7 | 16990870 | LOCK PLUG Ø28 MM |
| 8 | 2992695 | ADHESIVE/STICKER LOCTITE |
| 9 | 504051238 | THREADED PLUG DIAM=3/8" |
| 10 | 98475100 | THREADED PLUG R3/4x12 |
| 11 | 504051237 | THREADED PLUG DIAM=1/4" |
| 12 | 500368916 | OIL NOZZLE |
| 13 | 504120669 | LOCK PLUG M24X1,5 [FROM # 44746] |
| 14 | 500356932 | LOCK PLUG Ø12 MM |
| 15 | 99467554 | DOWEL PIN Ø14 MM |
| 16 | 2995644 | ADHESIVE/STICKER |
