F3BE0684E*B101

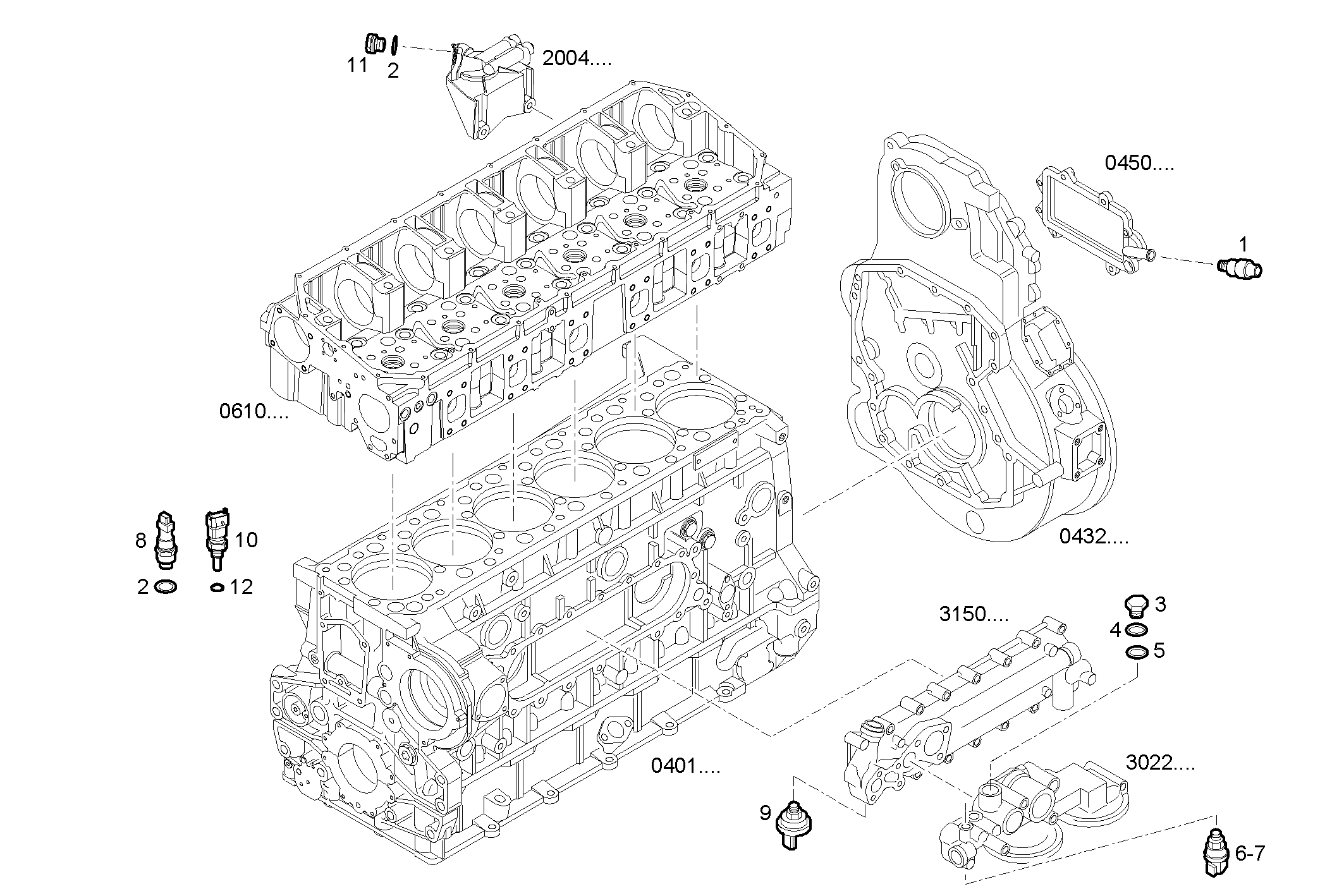

1712.010 SENSORS
| Item | Part number | Description |
|---|---|---|
| 1 | 500346371 | CHOCKED FILTER INDIC. FILTRO BLOW-BY |
| 2 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 3 | 500337200 | THREADED PLUG [FROM # 50368] |
| 4 | 500337199 | O-RING [FROM # 50368] |
| 5 | 17278181 | O-RING [FROM # 50368] |
| 6 | 98445111 | PRESSURE SWITCH BORLETTI |
| 7 | 98442879 | PRESSURE SWITCH SIPEA |
| 8 | 500386057 | TEMP. TRANSMITTER |
| 9 | 504084761 | TRANSMITTER OIL PRESSURE |
| 10 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
| 11 | 504084571 | THREADED PLUG |
| 12 | 17277881 | O-RING Ø7,65 MM SP=1,78 MM |
