F3BE0684E*B101

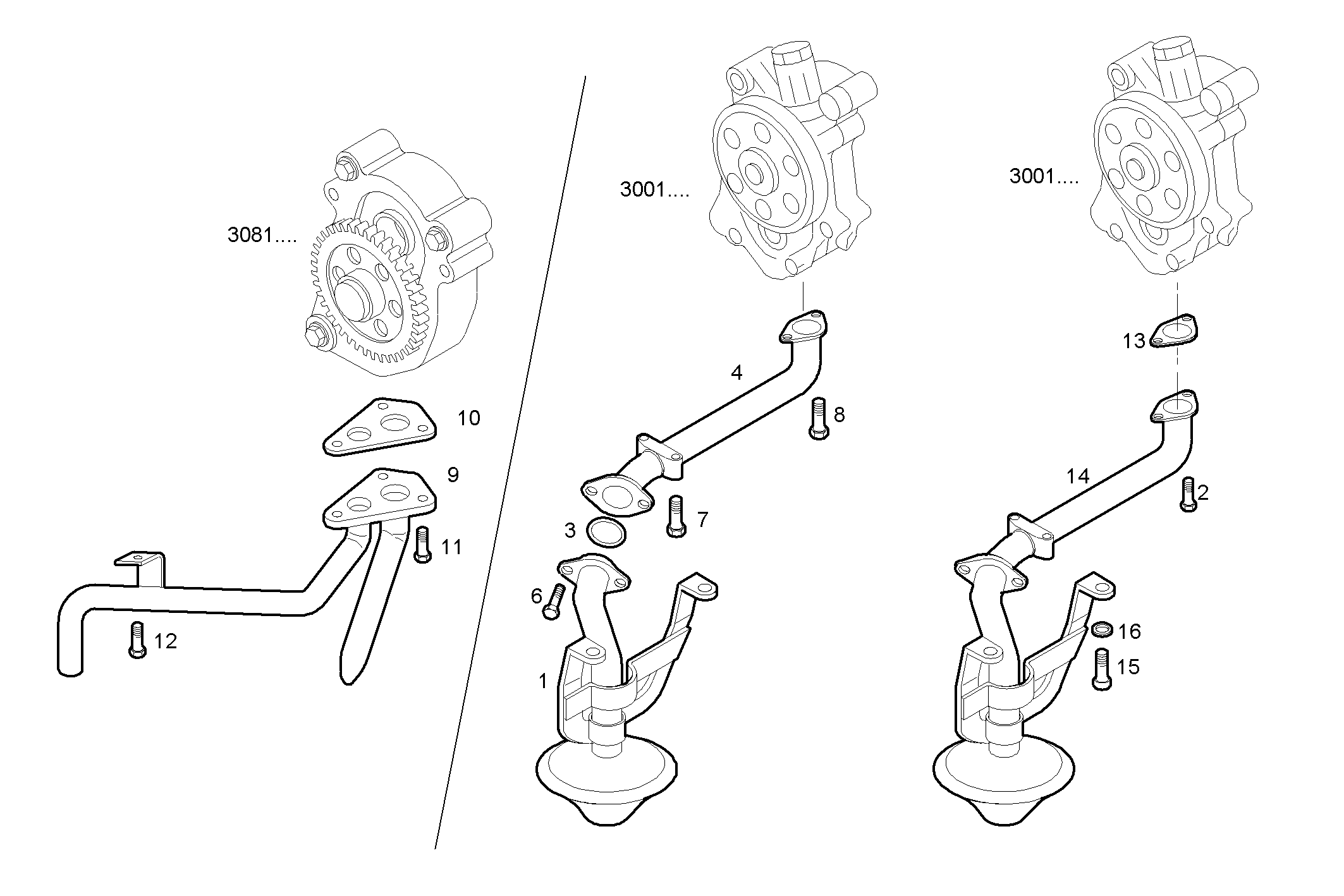

3050.031 SUCTION STRAINER

Iveco/FPT SUCTION STRAINER

Item Part number Description
1 99475585 SUCTION STRAINER [UP TO # 65726]
2 16592225 HEXAGON BOLT M8X55 MM
3 17289481 O-RING Ø37,69 MM SP=3,53 MM
4 99475589 OIL LINE [UP TO # 65726]
6 16586225 HEXAGON BOLT M8X1,25X16 MM
7 16592525 HEXAGON BOLT M8X70 MM
8 16673835 HEXAGON BOLT M8X30 MM
9 500388917 CONNECTION PIPE
10 500388968 FLAT ENGINE GASKET
11 16673635 HEXAGON BOLT M8X1.25X20
12 16597925 HEXAGON BOLT M8X14 MM
13 500343518 FLAT ENGINE GASKET
14 504128916 SUCTION STRAINER [FROM # 65727]
15 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
16 17096824 WASHER Ø8,40X15 MM
