F3BE0684R*E905

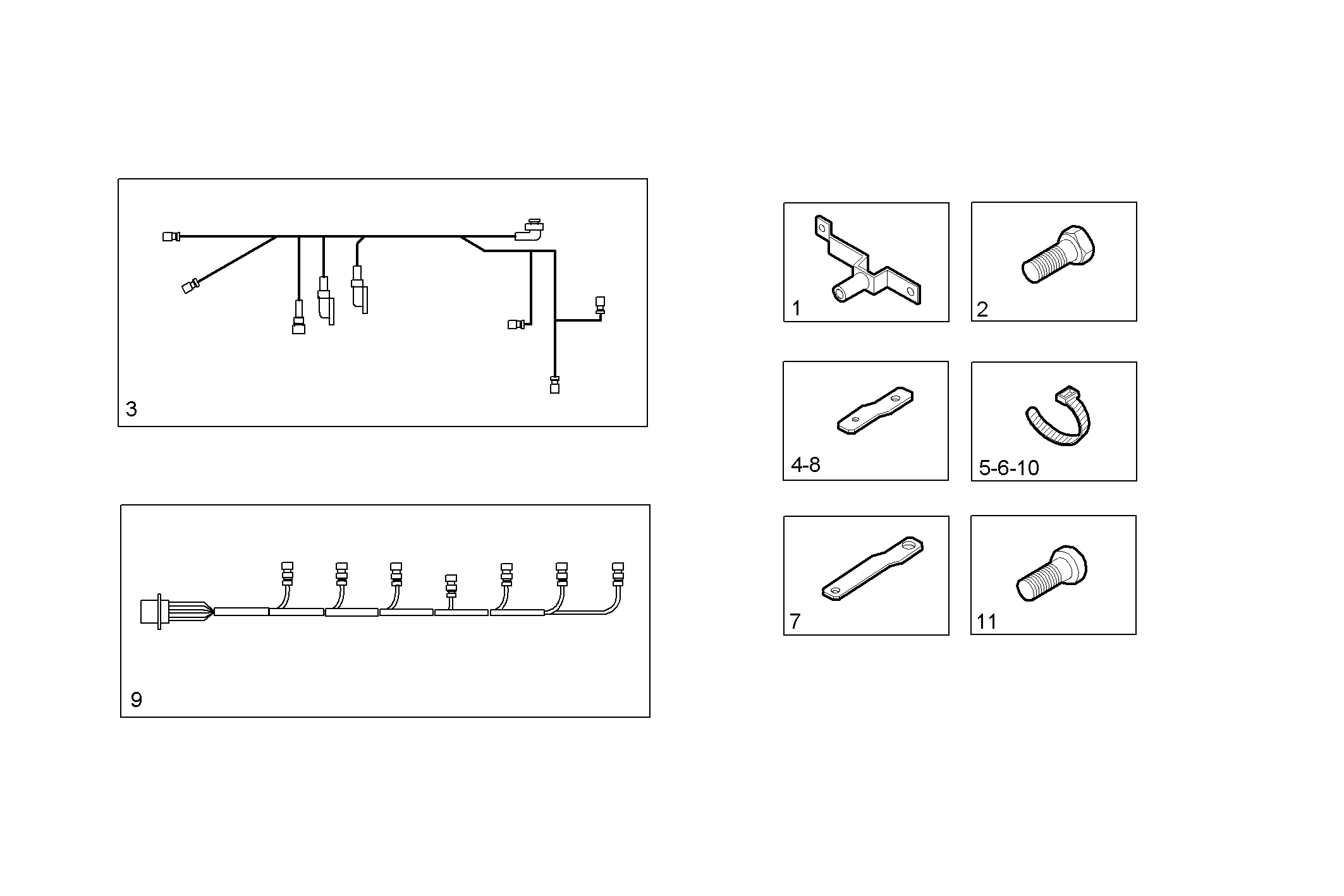

1730.052 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 500371778 | FASTENING BRACKET |
| 2 | 16592225 | HEXAGON BOLT M8X55 MM |
| 3 | 504269121 | ENGINE HARNESS |
| 4 | 504067009 | RETAINER |
| 5 | 504023286 | CABLE STRAP |
| 6 | 504099833 | CABLE STRAP |
| 7 | 504060889 | RETAINER |
| 8 | 504049754 | FASTENING BRACKET |
| 9 | 504149935 | WIRE/CABLE |
| 10 | 42099097 | CABLE STRAP |
| 11 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
