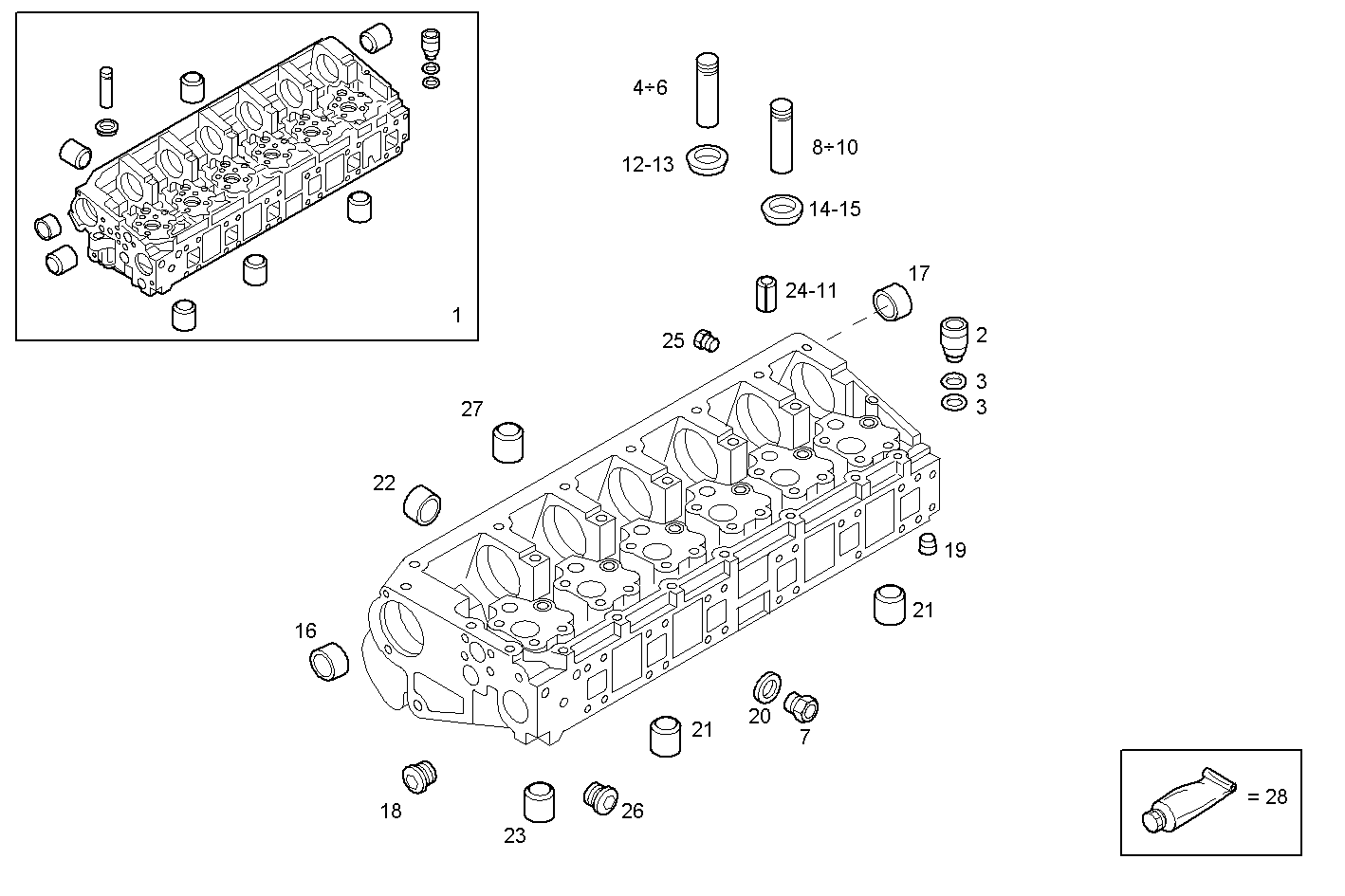

| Item |
Part number |
Description |
|
1 |
504235483 |
CYLINDER HEAD |
|
2 |
99476929 |
NOZZLE HOLDER SEAT |
|
3 |
17279081 |
O-RING �26,7 MM SP=1,7 MM |
|
4 |
500390993 |
VALVE GUIDE INTAKE |
|
5 |
500390864 |
VALVE GUIDE +0,2 INTAKE |
|
6 |
500390866 |
VALVE GUIDE +0,4 INTAKE |
|
7 |
16992415 |
THREADED PLUG M16X1,5 |
|
8 |
500390994 |
VALVE GUIDE EXHAUST |
|
9 |
500390860 |
VALVE GUIDE +0,2 EXHAUST |
|
10 |
500390861 |
VALVE GUIDE +0,4 EXHAUST |
|
11 |
17255674 |
DOWEL PIN �5 MM [FROM # 76547] |
|
12 |
99450511 |
VALVE SEAT STD. INTAKE |
|
13 |
504020517 |
VALVE SEAT +0.20 INTAKE |
|
14 |
99450512 |
VALVE SEAT STD. EXHAUST |
|
15 |
504020515 |
VALVE SEAT +0.20 EXHAUST |
|
16 |
504078222 |
BUSH |
|
17 |
504078223 |
BUSH |
|
18 |
504051237 |
THREADED PLUG DIAM=1/4" |
|
19 |
504138060 |
LOCK PLUG [FROM # 59639] |
|
20 |
99489019 |
WASHER �16X24 MM SP=1,5 MM |
|
21 |
16991370 |
LOCK PLUG �45 MM |
|
22 |
16990870 |
LOCK PLUG �28 MM |
|
23 |
14282170 |
LOCK PLUG �20 MM |
|
24 |
17257074 |
DOWEL PIN �6X18 MM |
|
25 |
504138062 |
PLUG �10 MM |
|
26 |
504182706 |
THREADED PLUG [FROM # 76547] |
|
27 |
504237371 |
PLUG |
|
28 |
2992695 |
ADHESIVE/STICKER LOCTITE |
