F3BE3681B*R403

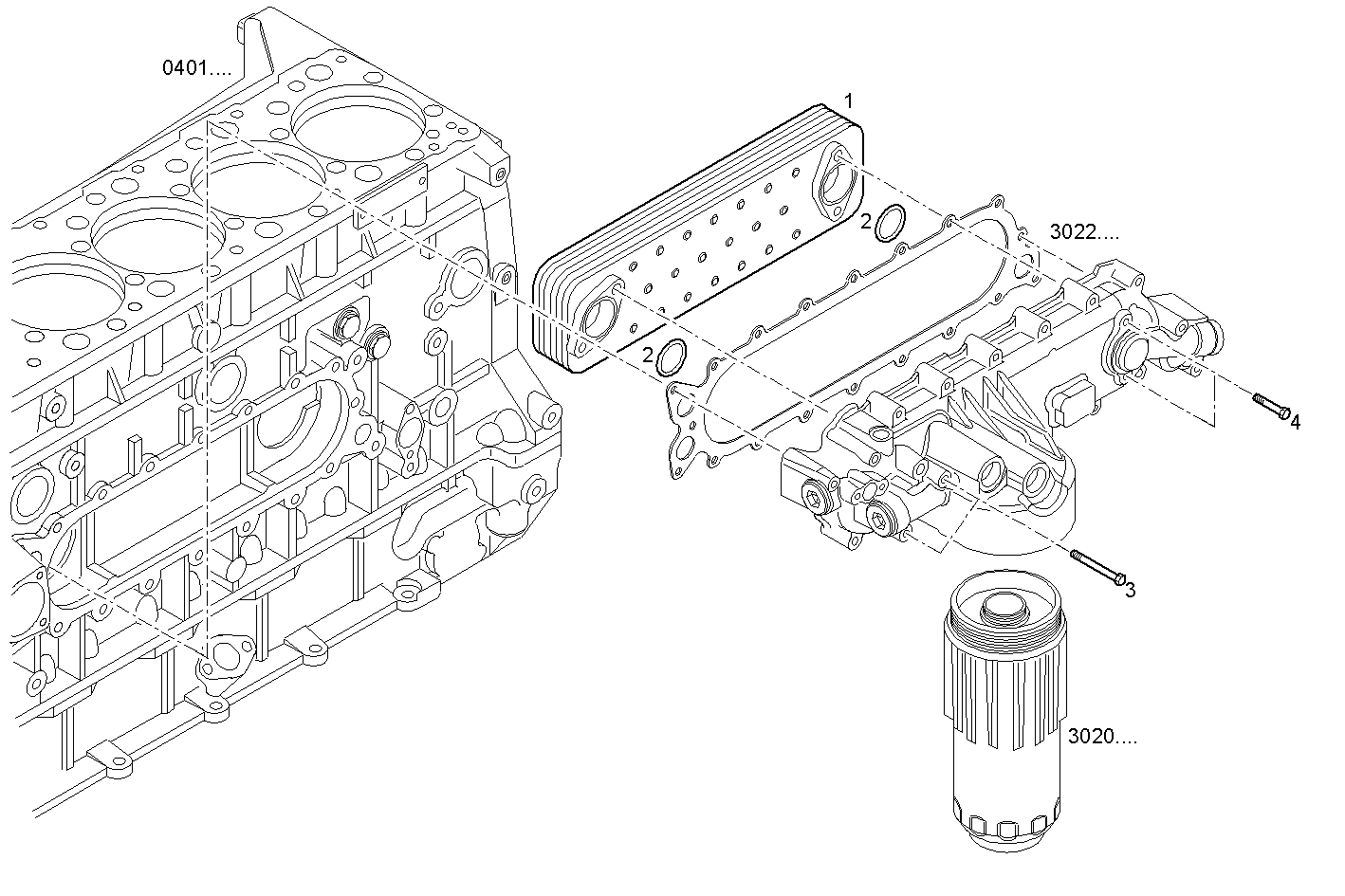

3150.033 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504221052 | OIL COOLER |
| 2 | 17283581 | O-RING Ø44,12 MM SP=2,62 MM |
| 3 | 16592625 | HEXAGON BOLT M8X80 MM |
| 4 | 16673835 | HEXAGON BOLT M8X30 MM |
