F3BE3681B*R403

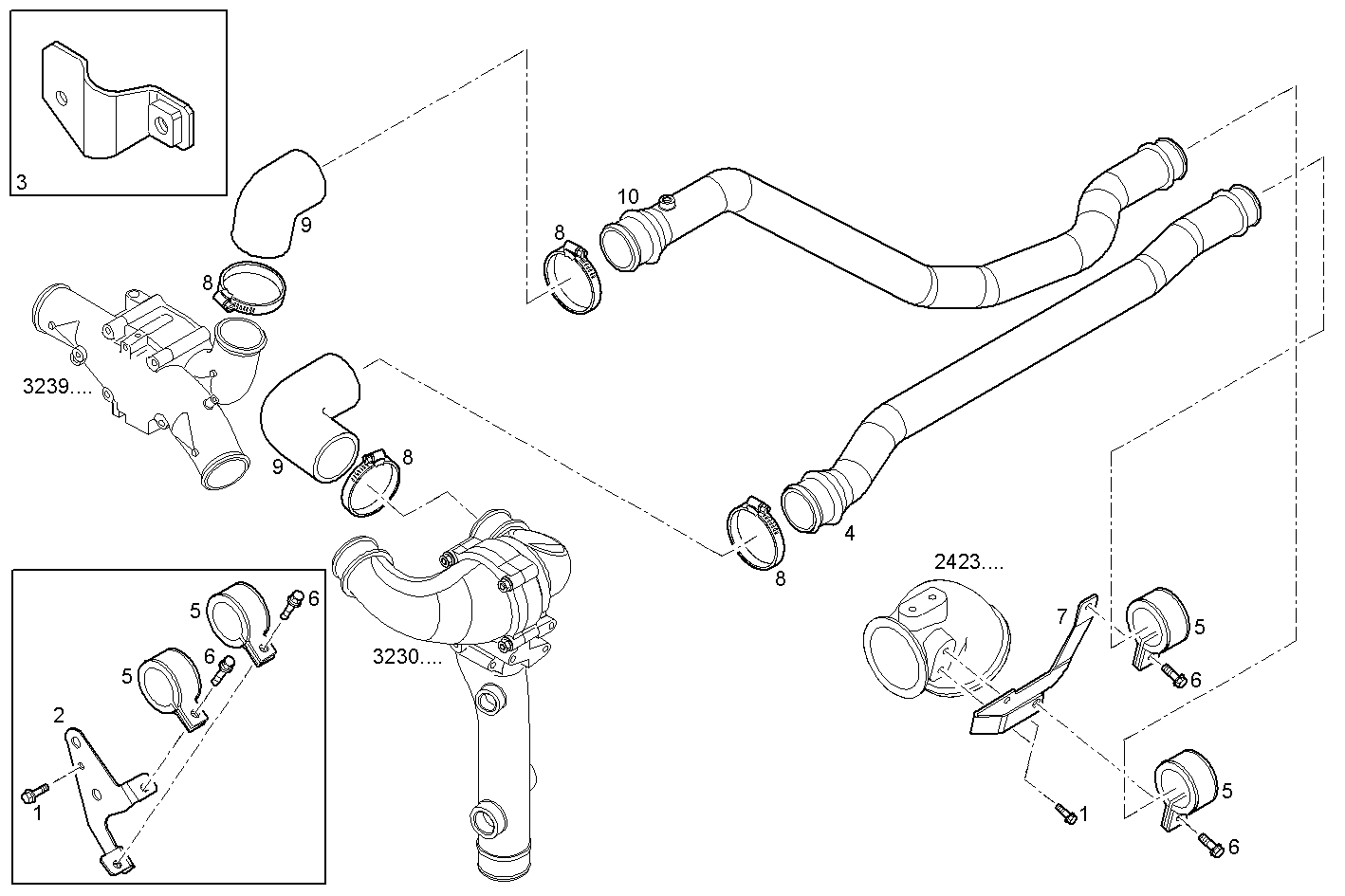

3269.003 UNIT PRESURIZATION LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 2 | 500366242 | SUPPORT |
| 3 | 504296909 | SUPPORT |
| 4 | 500364106 | PIPE OUTLET |
| 5 | 41033181 | CLIP Ø50 MM |
| 6 | 16673835 | HEXAGON BOLT M8X30 MM |
| 7 | 504257578 | SUPPORT |
| 8 | 17765093 | CLIP Ø60/80 MM |
| 9 | 500300744 | WATER HOSE |
| 10 | 500364108 | PIPE INTAKE |
