F3CE0684A*E001

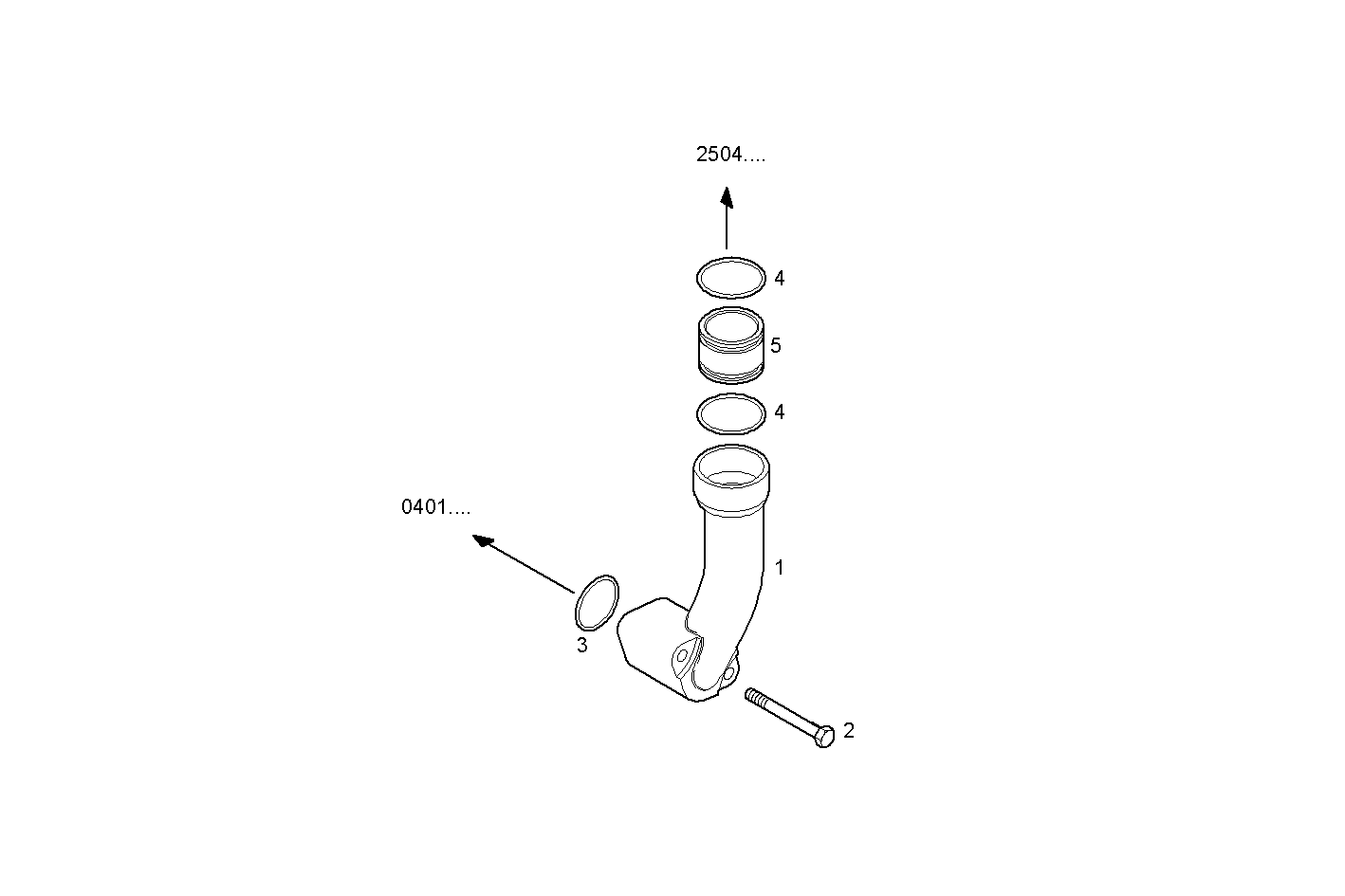

2570.000 RETURN OIL LINE - TURBOCOMPOUND

Iveco/FPT RETURN OIL LINE - TURBOCOMPOUND

Item Part number Description
1 504220962 OIL LINE
2 16592525 HEXAGON BOLT M8X70 MM
3 17289281 O-RING Ø34,5 MM SP=3,53 MM
4 17289481 O-RING Ø37,69 MM SP=3,53 MM
5 504224456 CONNECTOR SLEEVE
