F3CE0684B*E003

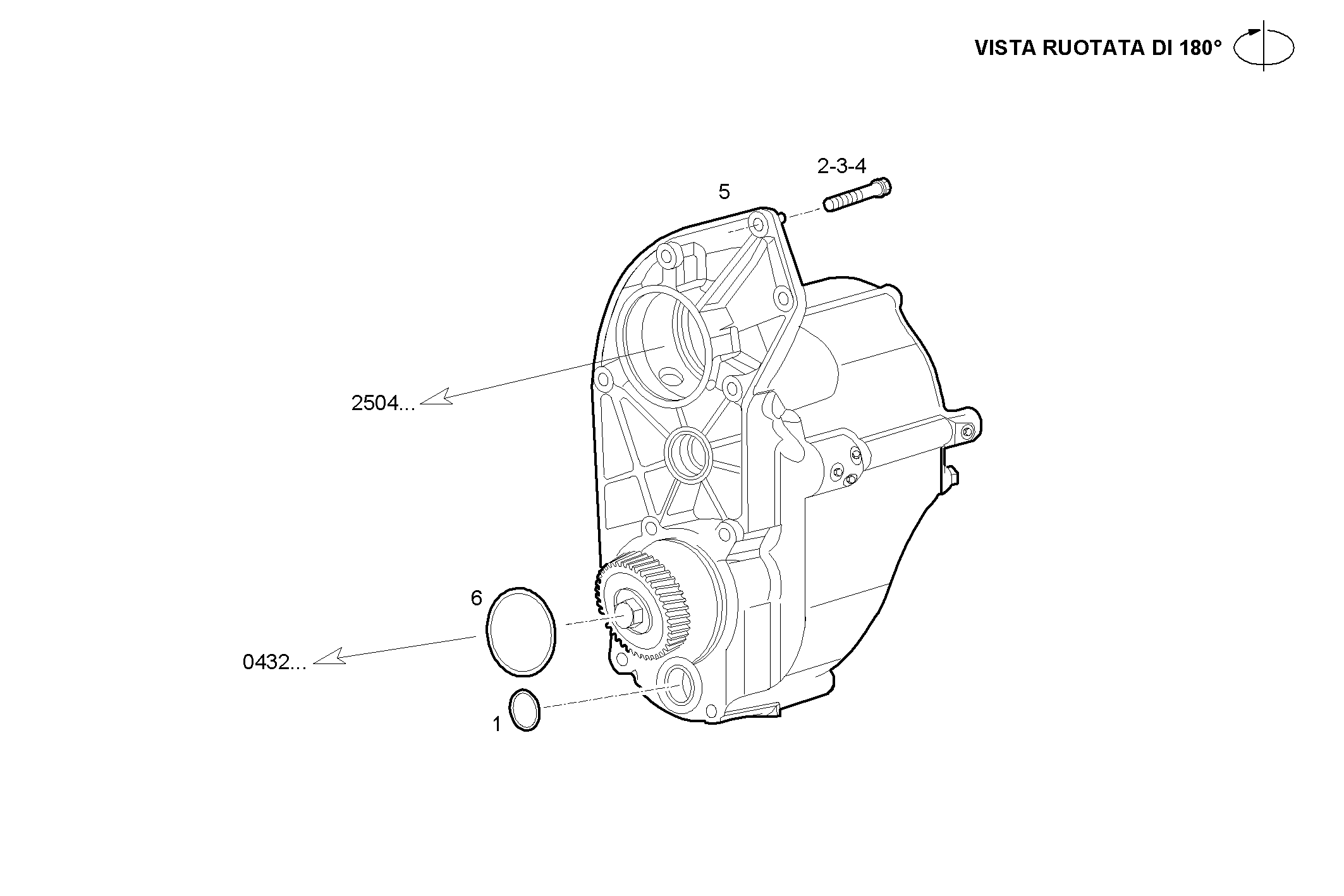

2509.002 HYDRAULIC COUPLING - TURBOCOMPOUND
| Item | Part number | Description |
|---|---|---|
| 1 | 17289481 | O-RING Ø37,69 MM SP=3,53 MM |
| 2 | 16593025 | HEXAGON BOLT M10X90 MM |
| 3 | 16593125 | HEXAGON BOLT M10X100 MM |
| 4 | 16599325 | HEXAGON BOLT M10X150 |
| 5 | 504168203 | PTO CLUTCH ASSY |
| 6 | 17296981 | O-RING Ø91,67 MM SP=3,53 MM |
