F3CE0684B*E005

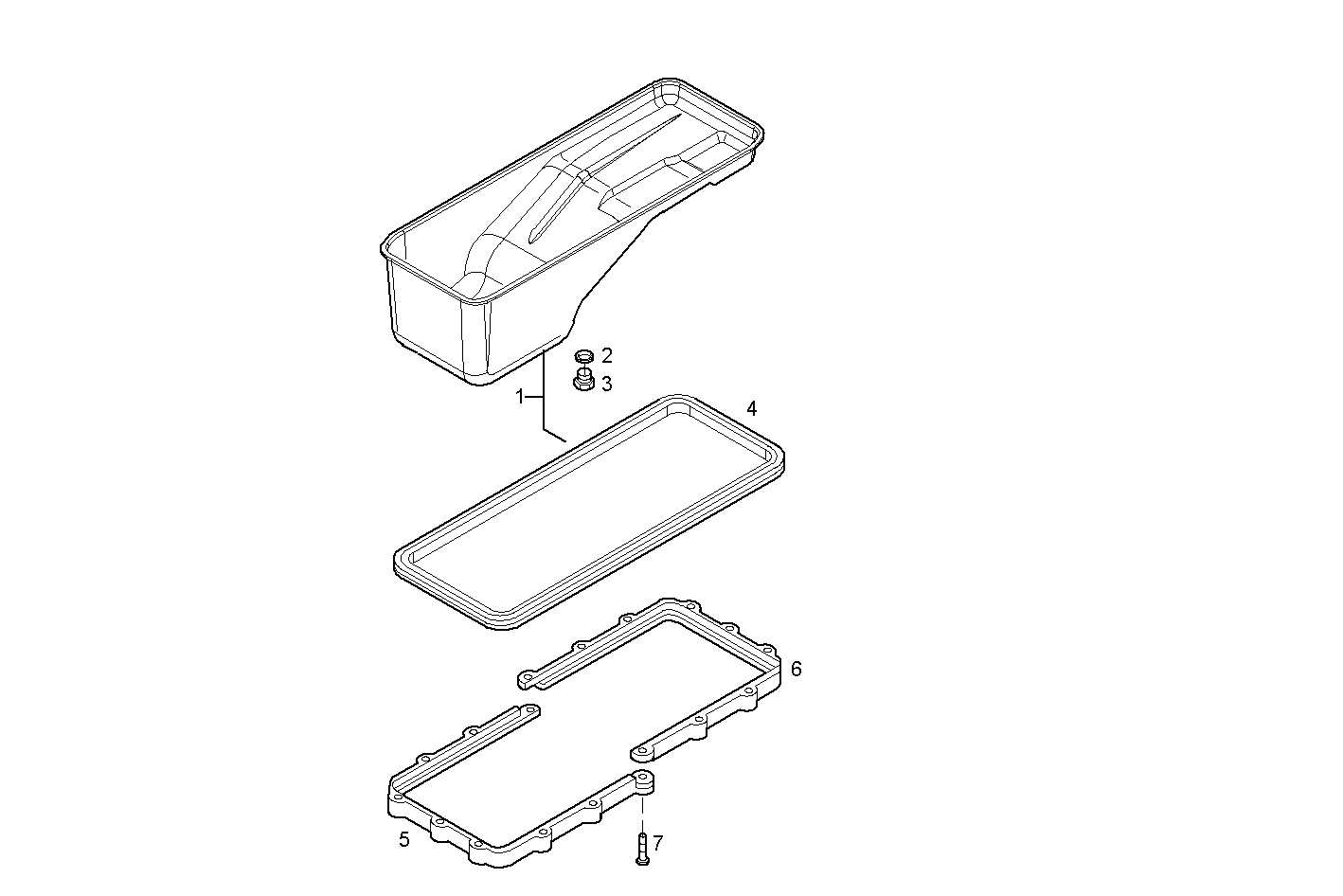

0420.216 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 504025626 OIL SUMP ASSY
2 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
3 16992611 THREADED PLUG M22X1,5
4 504024777 OIL SUMP GASKET
5 99449984 SPACING BAR [UP TO # 104597]
6 99449985 SPACING BAR [UP TO # 104597]
7 504084461 HEXAGON BOLT
