F3CE0684B*E005

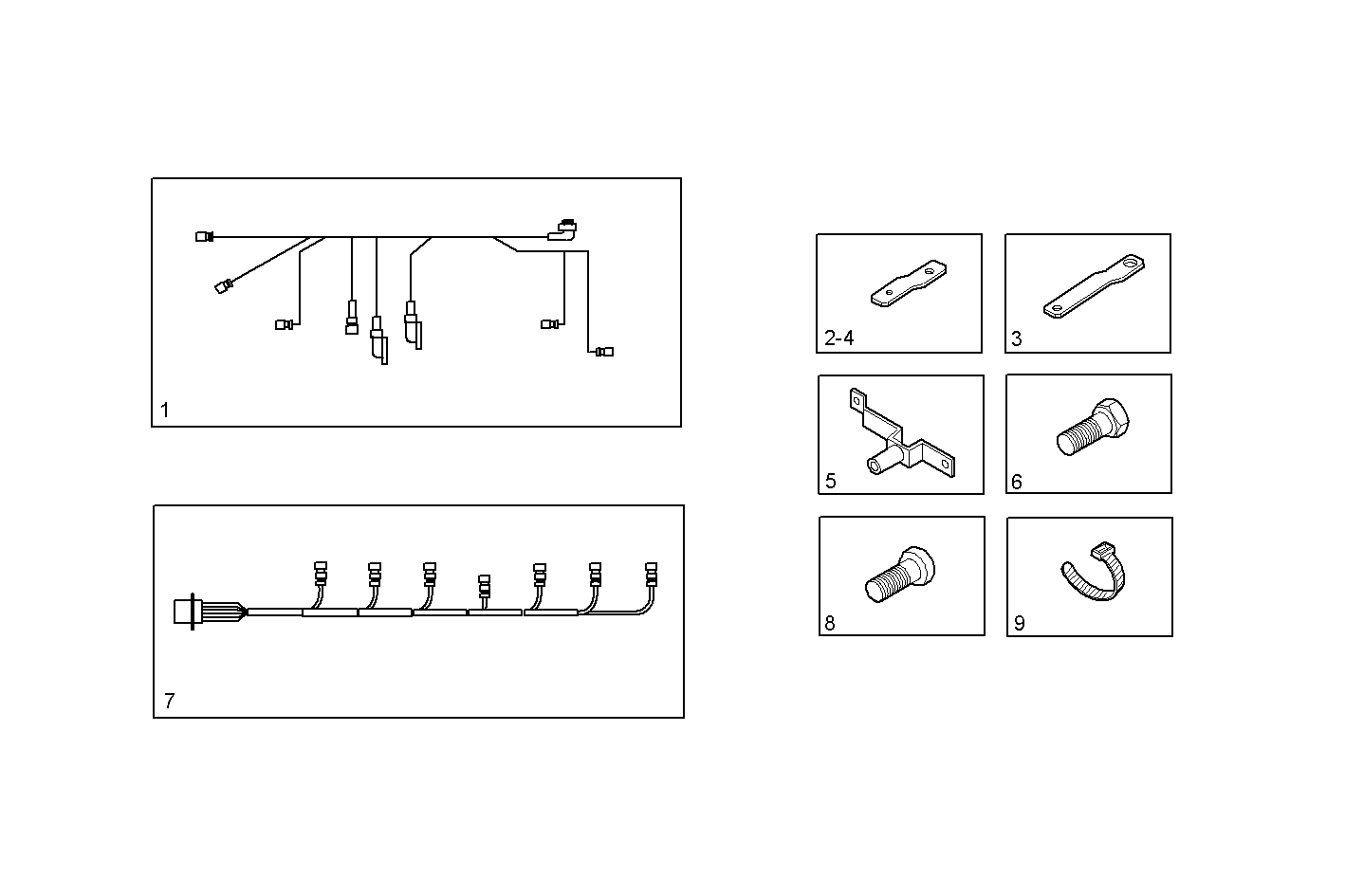

1730.077 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 504343920 | ENGINE HARNESS |
| 2 | 504067009 | RETAINER |
| 3 | 504060889 | RETAINER |
| 4 | 504049754 | FASTENING BRACKET |
| 5 | 500371778 | FASTENING BRACKET |
| 6 | 16592225 | HEXAGON BOLT M8X55 MM |
| 7 | 504149935 | WIRE/CABLE |
| 8 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 9 | 42099097 | CABLE STRAP |
