F4AE0481A*C103

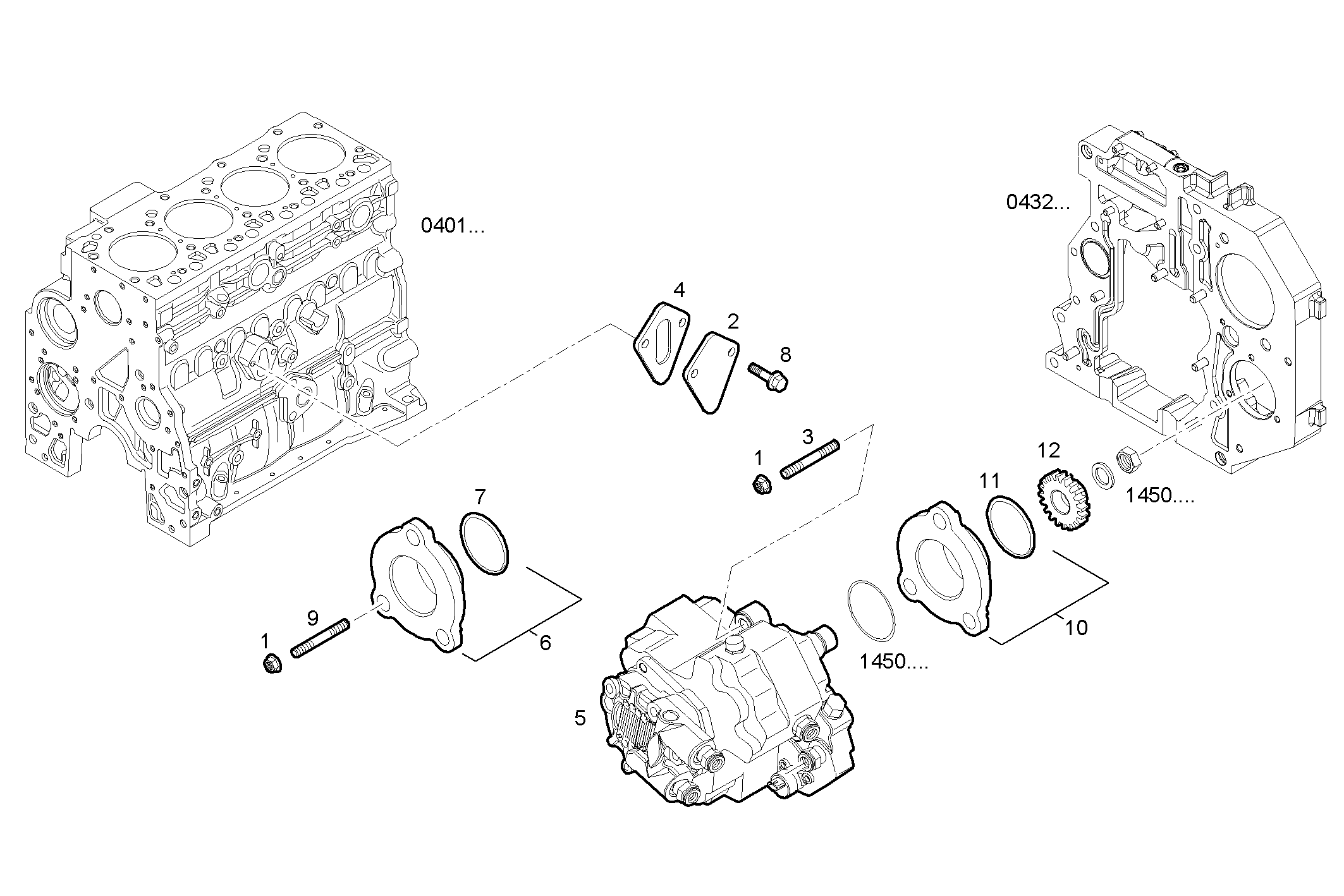

1400.421 INJECTION
| Item | Part number | Description |
|---|---|---|
| 1 | 4899003 | HEXAGON NUT M8 |
| 2 | 4896952 | COVER |
| 3 | 4895232 | STUD |
| 4 | 4890700 | FLAT ENGINE GASKET |
| 5 | 4897040 | HIGH PRESSURE PUMP ASSY |
| 6 | 4891829 | SPACING BAR ASSY |
| 7 | 17285381 | O-RING |
| 8 | 4899020 | HEXAGON BOLT |
| 9 | 4892831 | STUD |
| 10 | 4892788 | SPACING BAR |
| 11 | 4892784 | O-RING |
| 12 | 4893389 | INJ.PUMP DRIV.GEA |
