F4AE0481A*C103

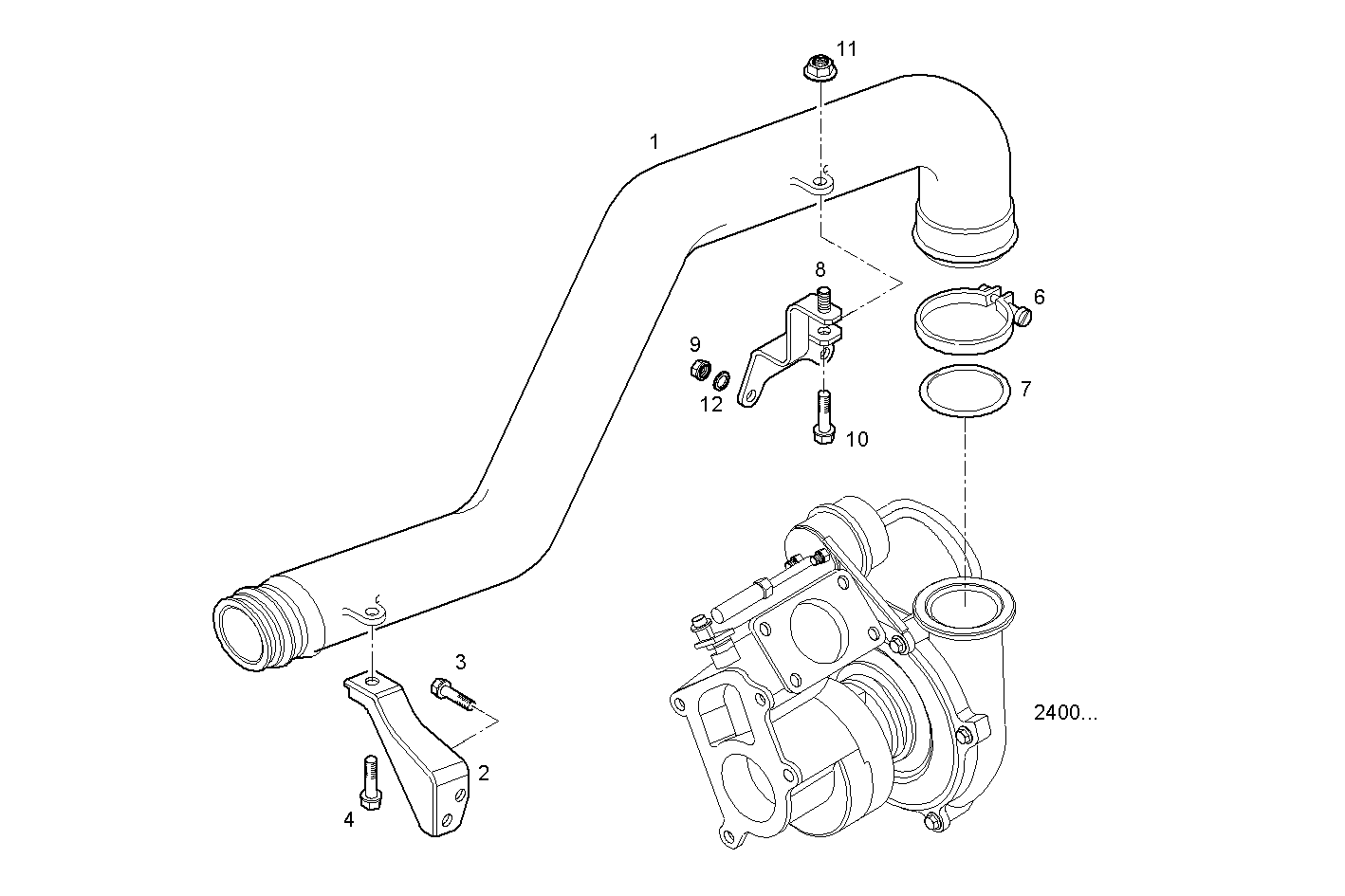

2430.054 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 4898170 | AIR PIPE/DUCT |
| 2 | 4898171 | FASTENING BRACKET |
| 3 | 4899068 | HEXAGON BOLT M8X17 MM |
| 4 | 4899020 | HEXAGON BOLT |
| 6 | 4896621 | CLIP |
| 7 | 4896625 | GASKET |
| 8 | 4898539 | FASTENING BRACKET |
| 9 | 4895166 | HEXAGON NUT M10X1,5 |
| 10 | 4899019 | HEXAGON BOLT M8X35 MM |
| 11 | 4899003 | HEXAGON NUT M8 |
| 12 | 4898656 | WASHER |
