F4AE0481C*C102

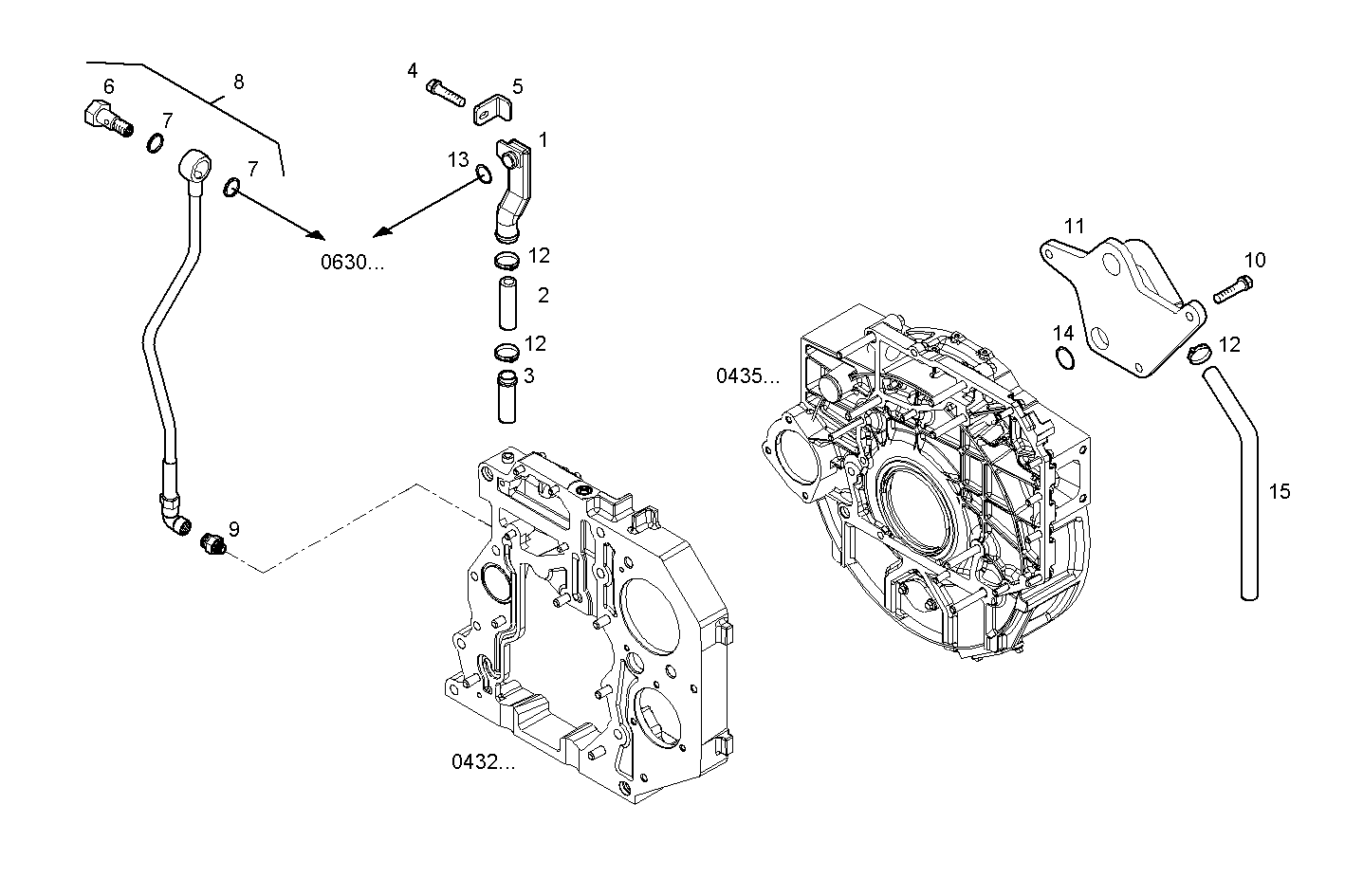

0450.222 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4897534 | BREATHER PIPE M10X1,5X80 MM |
| 2 | 4897546 | RUBBER SLEEVE |
| 3 | 4897547 | CONNECTOR SLEEVE |
| 4 | 4897537 | HEXAGON BOLT |
| 5 | 4897536 | RETAINER |
| 6 | 16511211 | SCREW CONNECTOR |
| 7 | 16508060 | SEAL GASKET Ø12X15,5 MM |
| 8 | 4899219 | BREATHER PIPE ASSY |
| 9 | 4897549 | PIPE SOCKET |
| 10 | 4899110 | HEXAGON BOLT |
| 11 | 4897553 | BREATHER |
| 12 | 4899116 | CLIP |
| 13 | 17282081 | O-RING Ø20,2 MM SP=2,62 MM |
| 14 | 4898372 | O-RING Ø13,11 MM SP=2,62 MM |
| 15 | 4897011 | RUBBER SLEEVE |
