F4AE0481E*C102

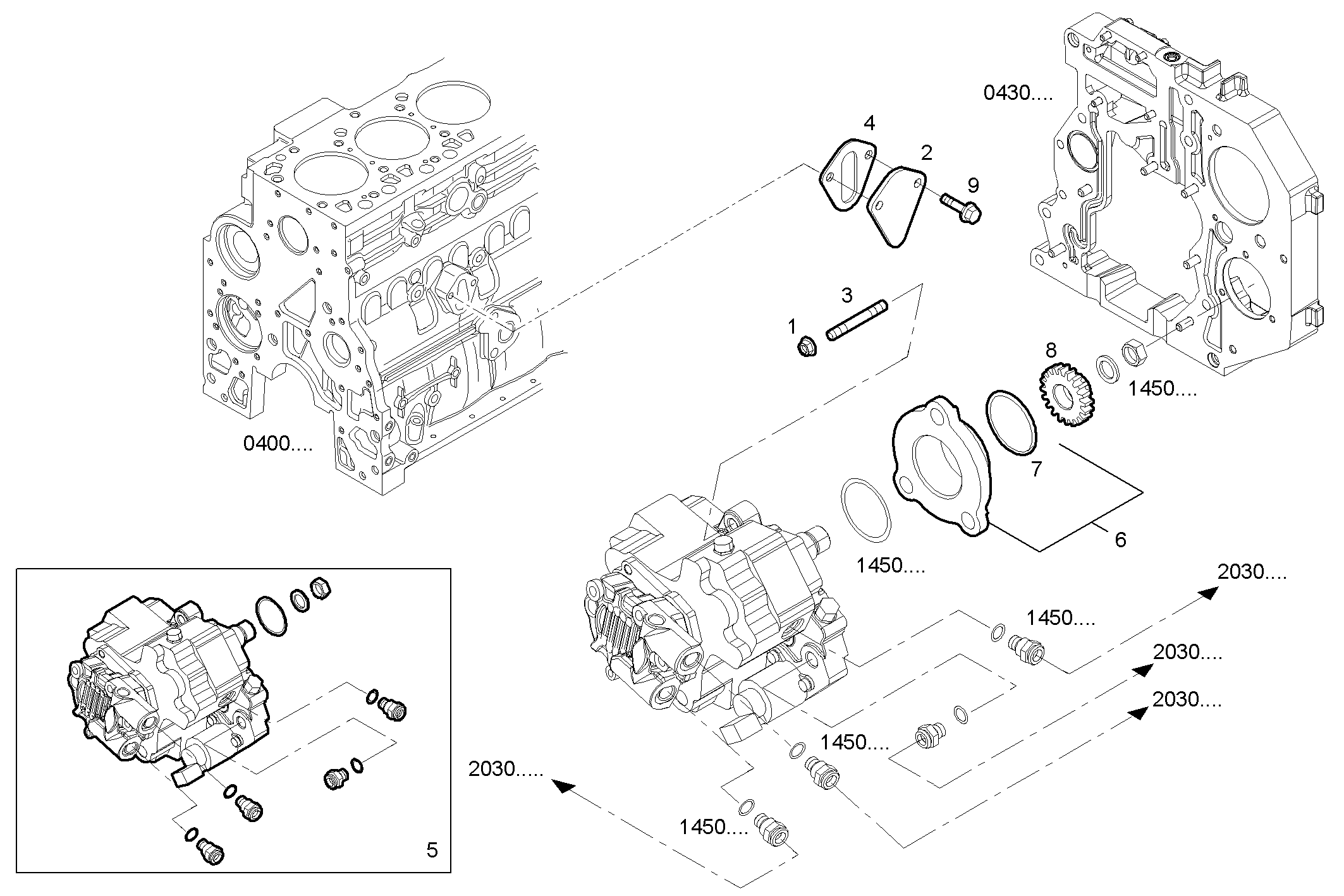

1400.319 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 17044731 | HEXAGON NUT M8 |
| 2 | 4896952 | COVER |
| 3 | 4892831 | STUD |
| 4 | 4890700 | FLAT ENGINE GASKET |
| 5 | 4898921 | HIGH PRESSURE PUMP ASSY |
| 6 | 504041278 | SPACING BAR ASSY |
| 7 | 17285381 | O-RING |
| 8 | 4893389 | INJ.PUMP DRIV.GEA |
| 9 | 18138424 | HEXAGON BOLT M8X20 MM |
