F4AE0481E*C102

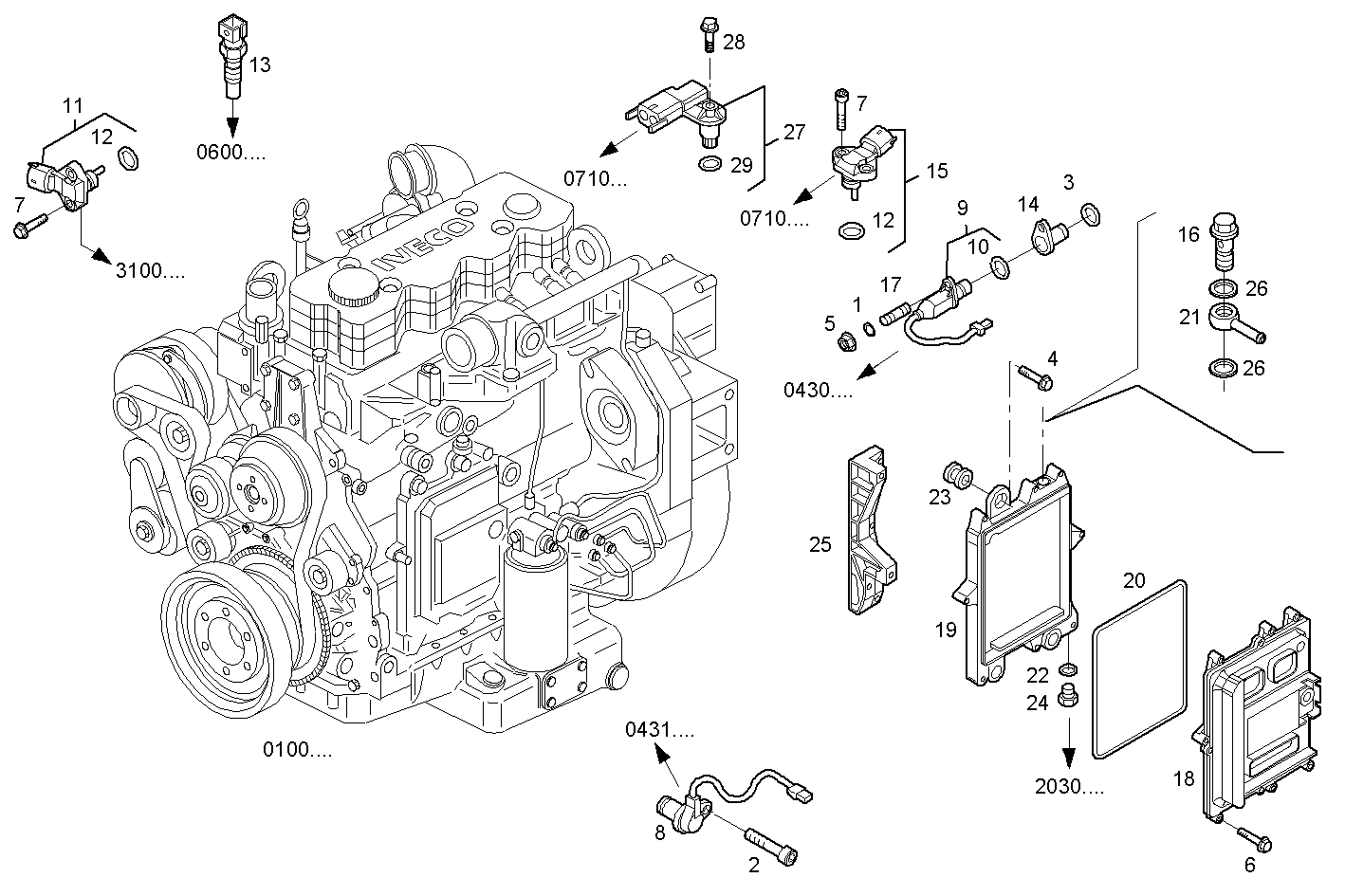

1700.008 ELECTRONIC CONTROL UNIT

Iveco/FPT ELECTRONIC CONTROL UNIT

Item Part number Description
1 4899124 WASHER
2 4899082 CYLIND-HEAD SCREW M6X1X20 MM
3 17278881 O-RING Ø23,5 MM SP=1,7 MM
4 4899078 HEXAGON BOLT
5 17044621 HEXAGON NUT M6
6 18137724 SCREW M6X30 MM
7 4899110 HEXAGON BOLT
8 4890189 SENSOR SPEED
9 4890190 SENSOR SPEED
10 17278481 O-RING Ø17,17 MM SP=1,78 MM
11 4890193 SENSOR OIL PRESS. & TEMPER.
12 4895477 O-RING
13 4897224 SENSOR TEMPERATURE
14 4892255 PIPE SOCKET
15 4893924 SENSOR ASSY [UP TO # 158927]
16 4864082 BANJO BOLT M12X1,5X25 MM
17 4895157 STUD
18 8093993 ELECTR.CONTR.UNIT E.C.U.
19 4897682 SUPPORT
20 4896811 GASKET
21 98404884 SWIVEL COUPLING
22 93156604 SEAL GASKET
23 4899791 RUBBER PAD
24 4890964 THREADED UNION M12X1,5
25 4897685 BRACKET
26 4858607 WASHER Ø12X17 MM SP=1,5 MM
27 504073323 SENSOR AIR PRESS. & TEMPER. [FROM # 158928]
28 4895817 HEXAGON BOLT [FROM # 158928]
29 42546555 O-RING [FROM # 158928]
