F4AE0481E*C105

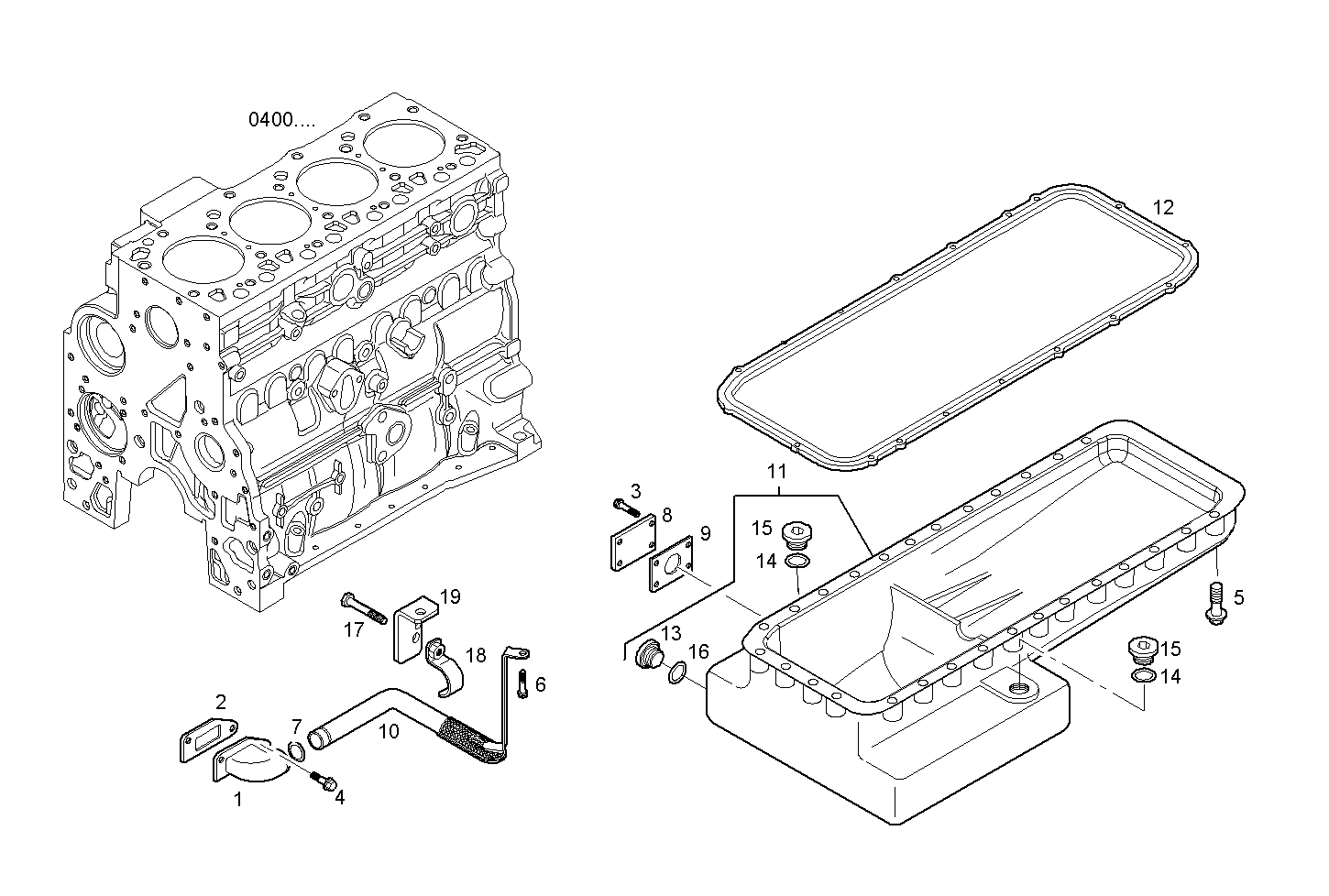

0420.165 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 4894116 INTAKE ELBOW
2 4898301 FLAT ENGINE GASKET
3 16585825 HEXAGON BOLT M6X20 MM
4 16586325 HEXAGON BOLT M8X20 MM
5 16673834 HEXAGON BOLT M8X30 MM
6 16597924 HEXAGON BOLT M8X14 MM
7 17283081 O-RING Ø36,17X2,62 MM
8 99474410 COVER REAR
9 99474411 FLAT ENGINE GASKET Ø22X30 MM
10 500387681 SUCTION STRAINER
11 504060757 OIL SUMP ASSY
12 504027339 OIL SUMP GASKET
13 4847102 THREADED PLUG
14 16508460 WASHER 22x27x1,5
15 16993411 THREADED PLUG M22X1,5
16 17282180 O-RING Ø21,8 MM SP=2,6 MM
17 16592224 HEXAGON BOLT M8X55 MM
18 500395790 CLIP
19 500395937 RETAINER
