F4AE0681D*C150

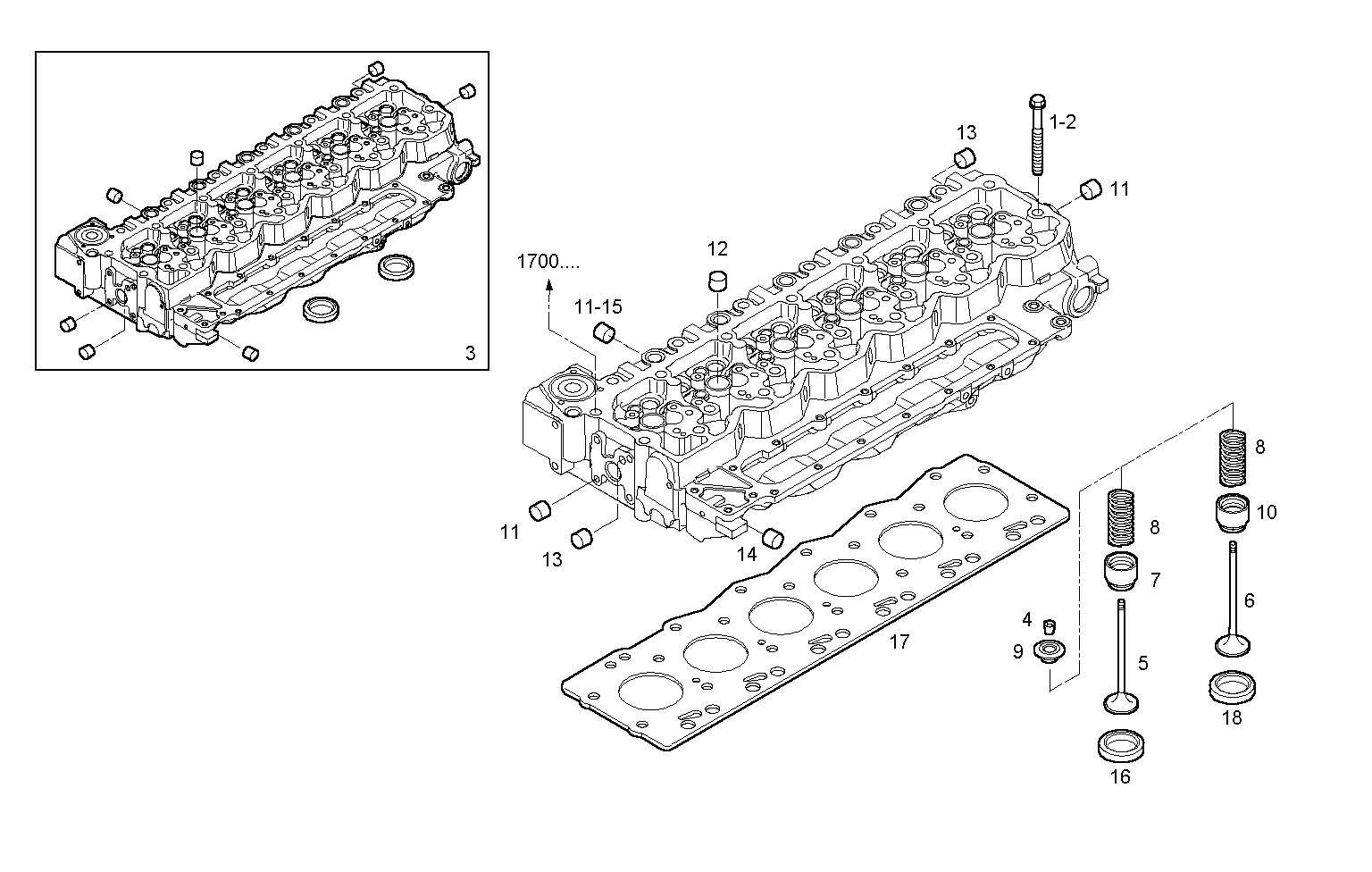

0600.178 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 4891024 | CYL.HEAD STUD M12X130 MM |
| 2 | 4891025 | CYL.HEAD STUD M12X150 MM |
| 3 | 4893051 | CYLINDER HEAD ASSY |
| 4 | 4899081 | VALVE CONE |
| 5 | 4895051 | EXHAUST VALVE |
| 6 | 4895052 | INLET VALVE |
| 7 | 4895072 | CAP |
| 8 | 4895073 | ENGINE VALV.SPRING |
| 9 | 4895074 | SPRING CAP |
| 10 | 4895411 | CAP |
| 11 | 4895085 | PLUG |
| 12 | 4895089 | PLUG |
| 13 | 4895406 | PLUG |
| 14 | 4895407 | PLUG |
| 15 | 4895408 | PLUG |
| 16 | 4897106 | VALVE SEAT STD. EXHAUST |
| 17 | 4898850 | CYL.HEAD GASKET SP=1,4 MM |
| 18 | 4897578 | VALVE SEAT STD. INTAKE |
