F4AE0682C*C117

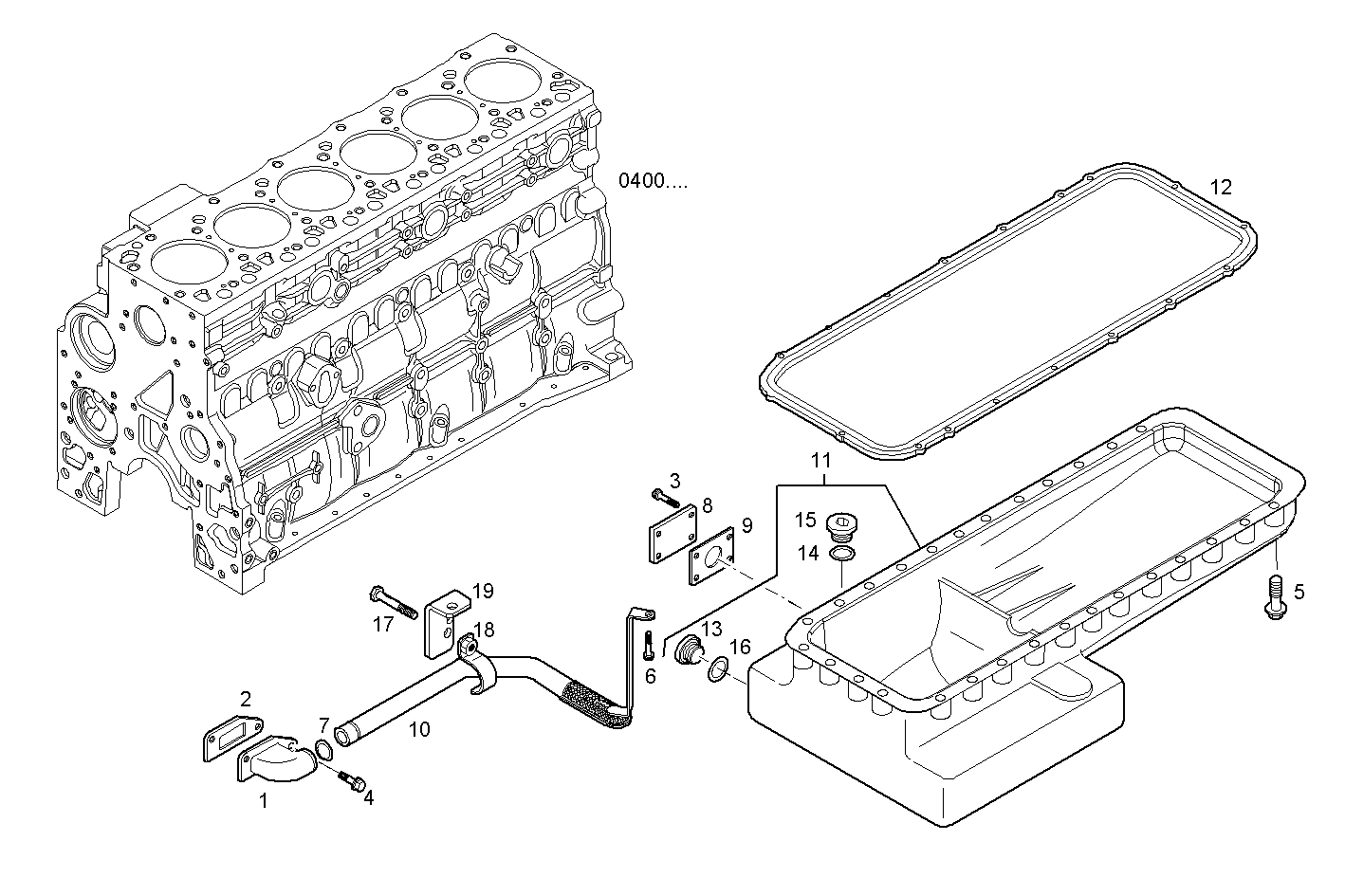

0420.174 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4894116 | INTAKE ELBOW |
| 2 | 4898301 | FLAT ENGINE GASKET |
| 3 | 16585825 | HEXAGON BOLT M6X20 MM |
| 4 | 16586325 | HEXAGON BOLT M8X20 MM |
| 5 | 16673835 | HEXAGON BOLT M8X30 MM |
| 6 | 16597924 | HEXAGON BOLT M8X14 MM |
| 7 | 17283081 | O-RING �36,17X2,62 MM |
| 8 | 99474410 | COVER REAR |
| 9 | 99474411 | FLAT ENGINE GASKET �22X30 MM |
| 10 | 500387682 | SUCTION STRAINER |
| 11 | 500395782 | OIL SUMP |
| 12 | 504027340 | OIL SUMP GASKET |
| 13 | 4847102 | THREADED PLUG |
| 14 | 16508460 | WASHER 22x27x1,5 |
| 15 | 16993411 | THREADED PLUG M22X1,5 |
| 16 | 17282180 | O-RING �21,8 MM SP=2,6 MM |
| 17 | 16592224 | HEXAGON BOLT M8X55 MM |
| 18 | 500395790 | CLIP |
| 19 | 500395937 | RETAINER |
