F4AE0682C*C117

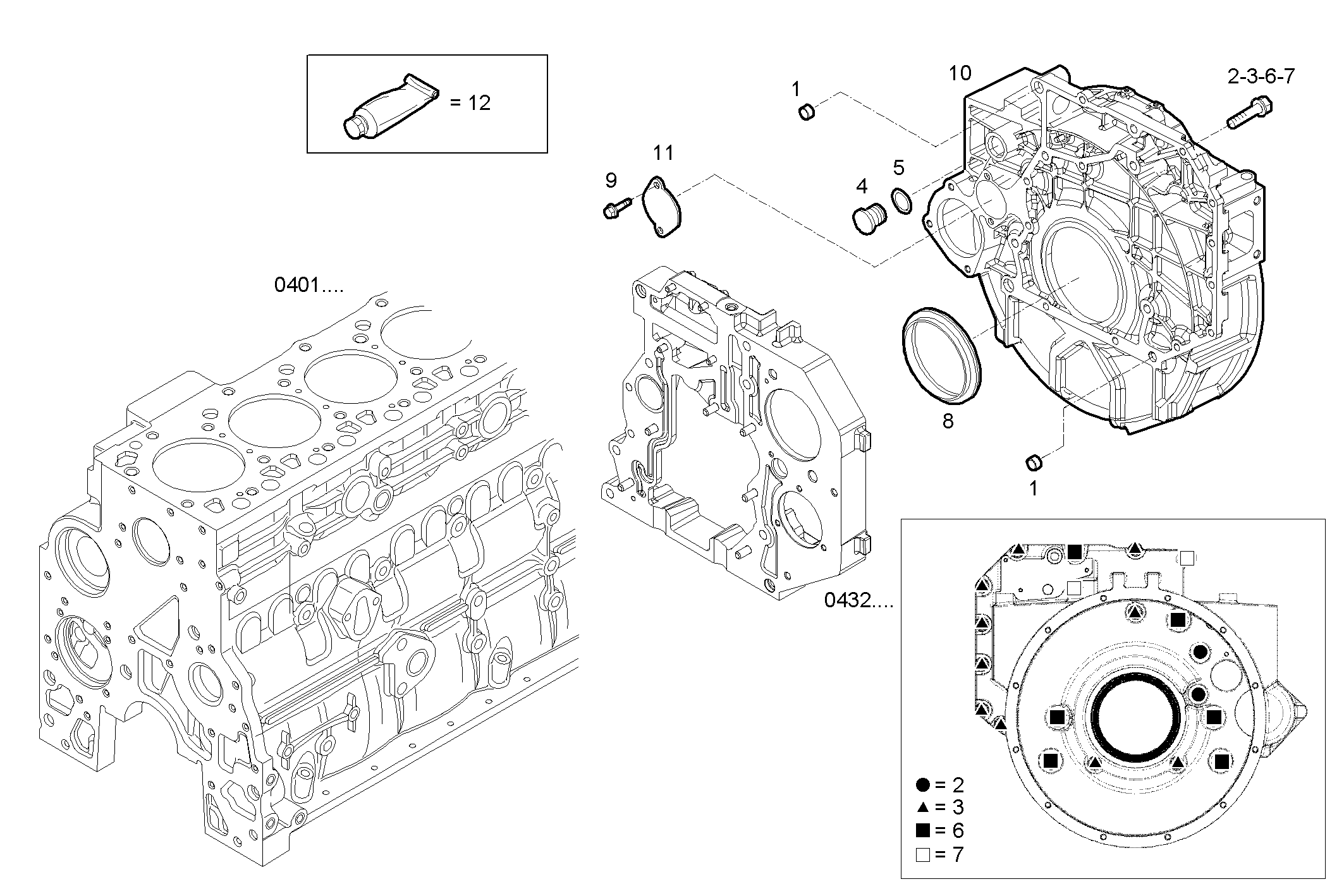

0435.000 FLYWHEEL HOUSING

Iveco/FPT FLYWHEEL HOUSING

Item Part number Description
1 4899026 DOWEL PIN
2 4899109 HEXAGON BOLT M10X1,5X80 MM
3 4899075 HEXAGON BOLT M10X1,5X40 MM
4 4895378 PLUG Ø29 MM
5 4895379 O-RING
6 4899076 HEXAGON BOLT M12X80 MM
7 4899064 HEXAGON BOLT M12X130 MM
8 4890833 SHAFT SEAL
9 4899068 HEXAGON BOLT M8X17 MM
10 4898248 REAR C.CASE COVER
11 4895155 COVER
12 2992504 ADHESIVE/STICKER LOCTITE
