F4AE0682C*C117

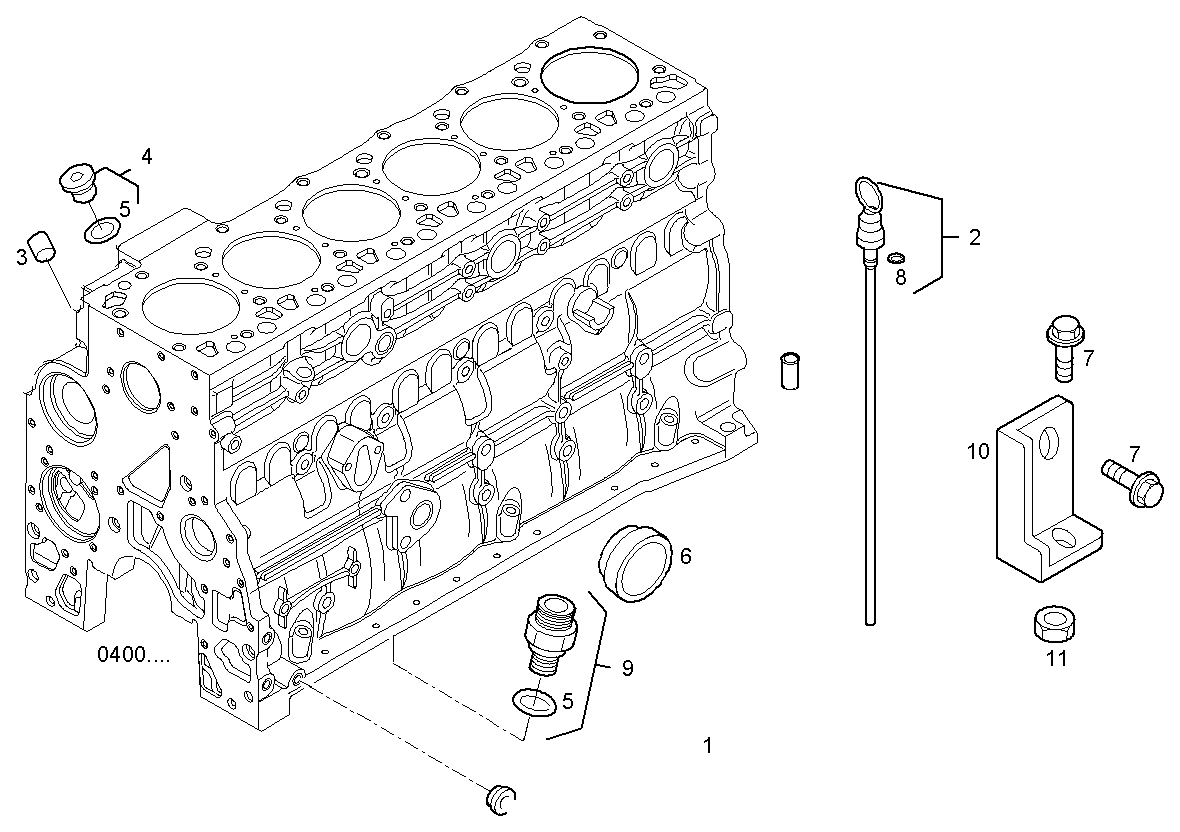

2710.136 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 500387688 | OIL LEVEL TUBE |
| 2 | 500387686 | OIL DIPSTICK |
| 3 | 4899036 | PLUG |
| 4 | 4897330 | PLUG ASSY M12X1,5 |
| 5 | 4895610 | O-RING |
| 6 | 4895037 | PLUG |
| 7 | 4899068 | HEXAGON BOLT M8X17 MM |
| 8 | 4898502 | O-RING |
| 9 | 504012966 | THREADED UNION ASSY |
| 10 | 4896026 | FASTENING BRACKET |
| 11 | 17044731 | HEXAGON NUT M8 |
