F4AE0682C*C117

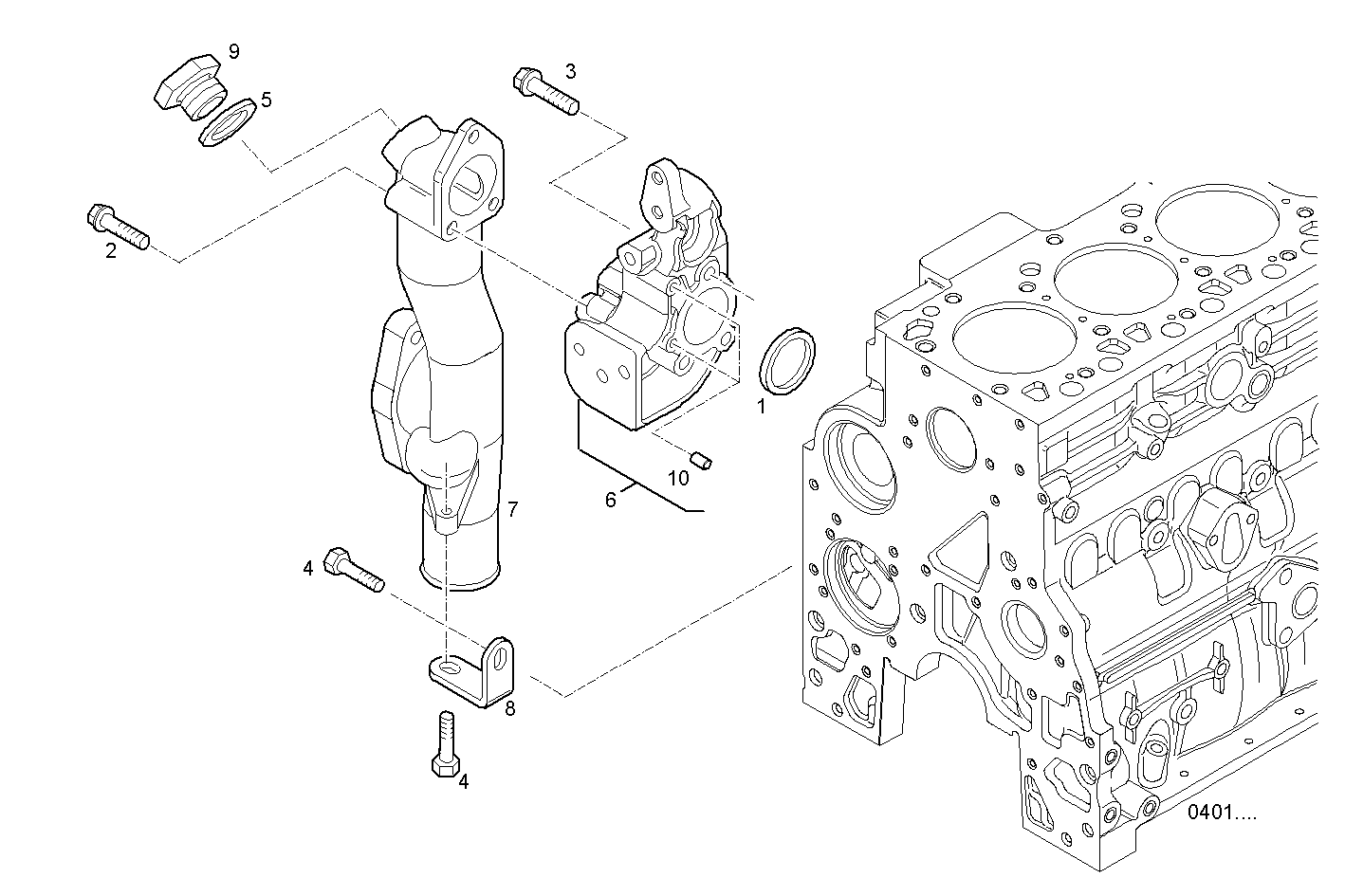

3230.023 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504062710 | WASHER |
| 2 | 16586325 | HEXAGON BOLT M8X20 MM |
| 3 | 16592925 | HEXAGON BOLT M10X80 MM |
| 4 | 16599024 | HEXAGON BOLT M10X120 MM |
| 5 | 18064760 | GASKET Ø30X36 MM |
| 6 | 500387647 | GENERATOR SUPPORT ASSY |
| 7 | 500387648 | WATER PIPE |
| 8 | 500393348 | RETAINER |
| 9 | 60138528 | THREADED PLUG |
| 10 | 4895576 | DOWEL PIN |
