F4AE0682C*C117

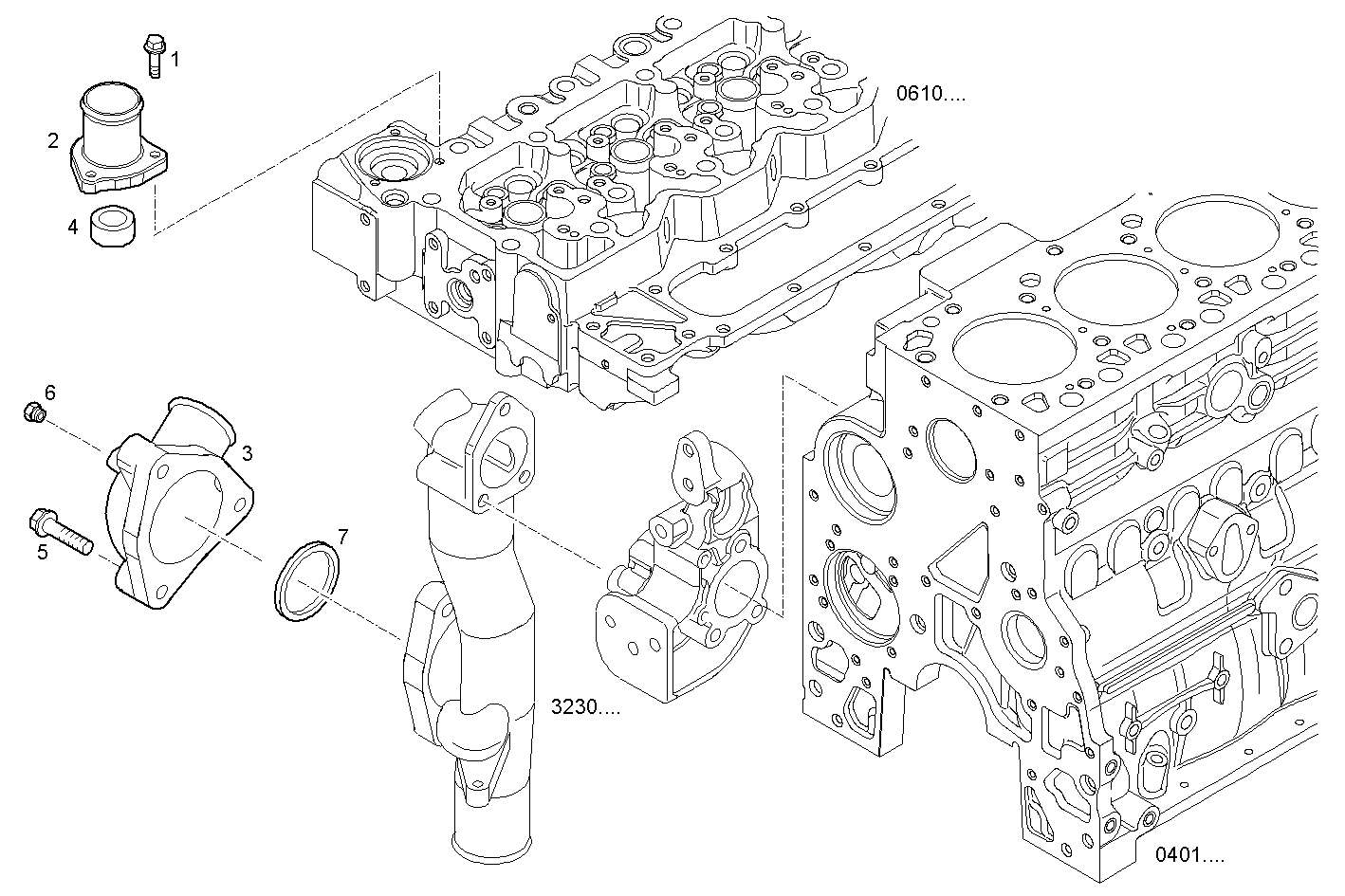

3260.043 TEMPERATURE REGULATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 16585825 | HEXAGON BOLT M6X20 MM |
| 2 | 4895131 | THERMOSTAT BODY |
| 3 | 4804320 | COVER |
| 4 | 504030960 | RUBBER GASKET |
| 5 | 16586877 | HEXAGON BOLT |
| 6 | 17318611 | THREADED PLUG M10X1,25 |
| 7 | 500395341 | SPACER RING |
