F4AE0682C*C119

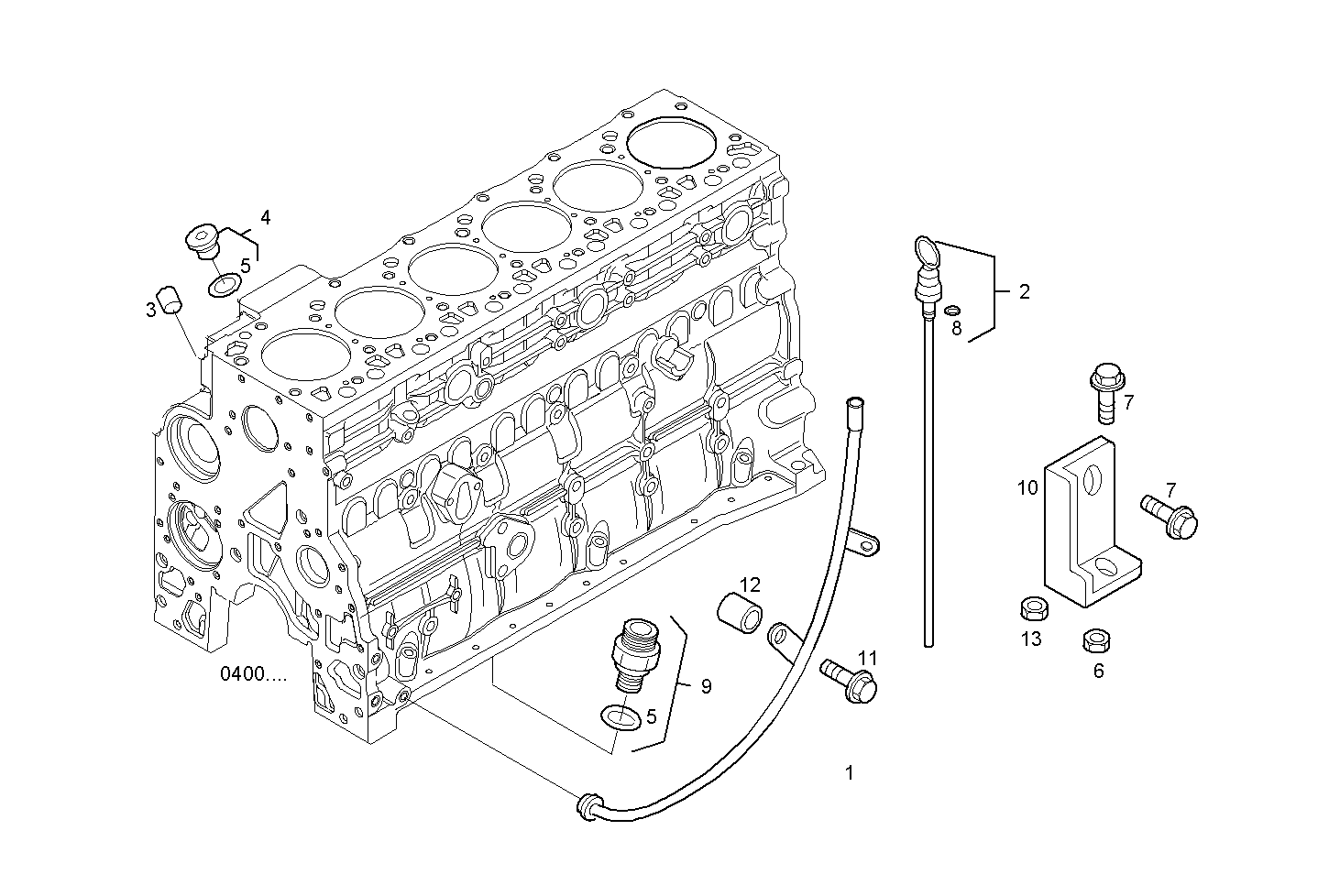

2710.205 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 500387688 | OIL LEVEL TUBE |
| 2 | 504034490 | OIL DIPSTICK |
| 3 | 4899036 | PLUG |
| 4 | 4897330 | PLUG ASSY M12X1,5 |
| 5 | 4895610 | O-RING |
| 6 | 17044735 | NUT M8 |
| 7 | 4899068 | HEXAGON BOLT M8X17 MM |
| 8 | 4898502 | O-RING |
| 9 | 504012966 | THREADED UNION ASSY |
| 10 | 4896026 | FASTENING BRACKET |
| 11 | 4895164 | HEXAGON BOLT |
| 12 | 4895336 | SPACING BAR |
| 13 | 17044625 | HEXAGON NUT M6 |
