F4AE0682C*C151

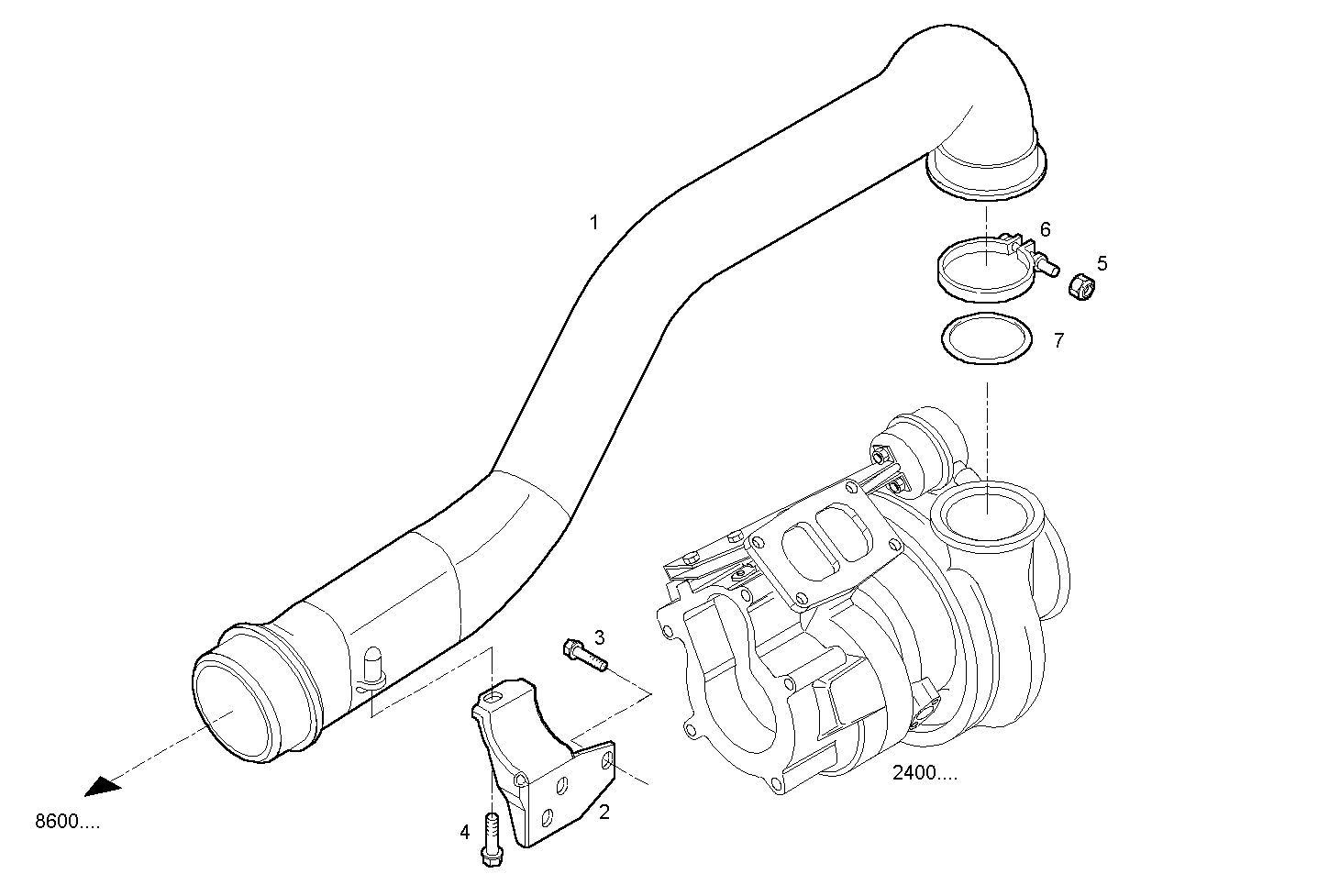

2420.186 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4898169 | AIR PIPE/DUCT |
| 2 | 4898171 | FASTENING BRACKET |
| 3 | 4899068 | HEXAGON BOLT M8X17 MM |
| 4 | 18138424 | HEXAGON BOLT M8X20 MM |
| 5 | 4899098 | HEXAGON NUT |
| 6 | 4899099 | CLIP |
| 7 | 4899087 | O-RING |
