F4AE0684E*D101

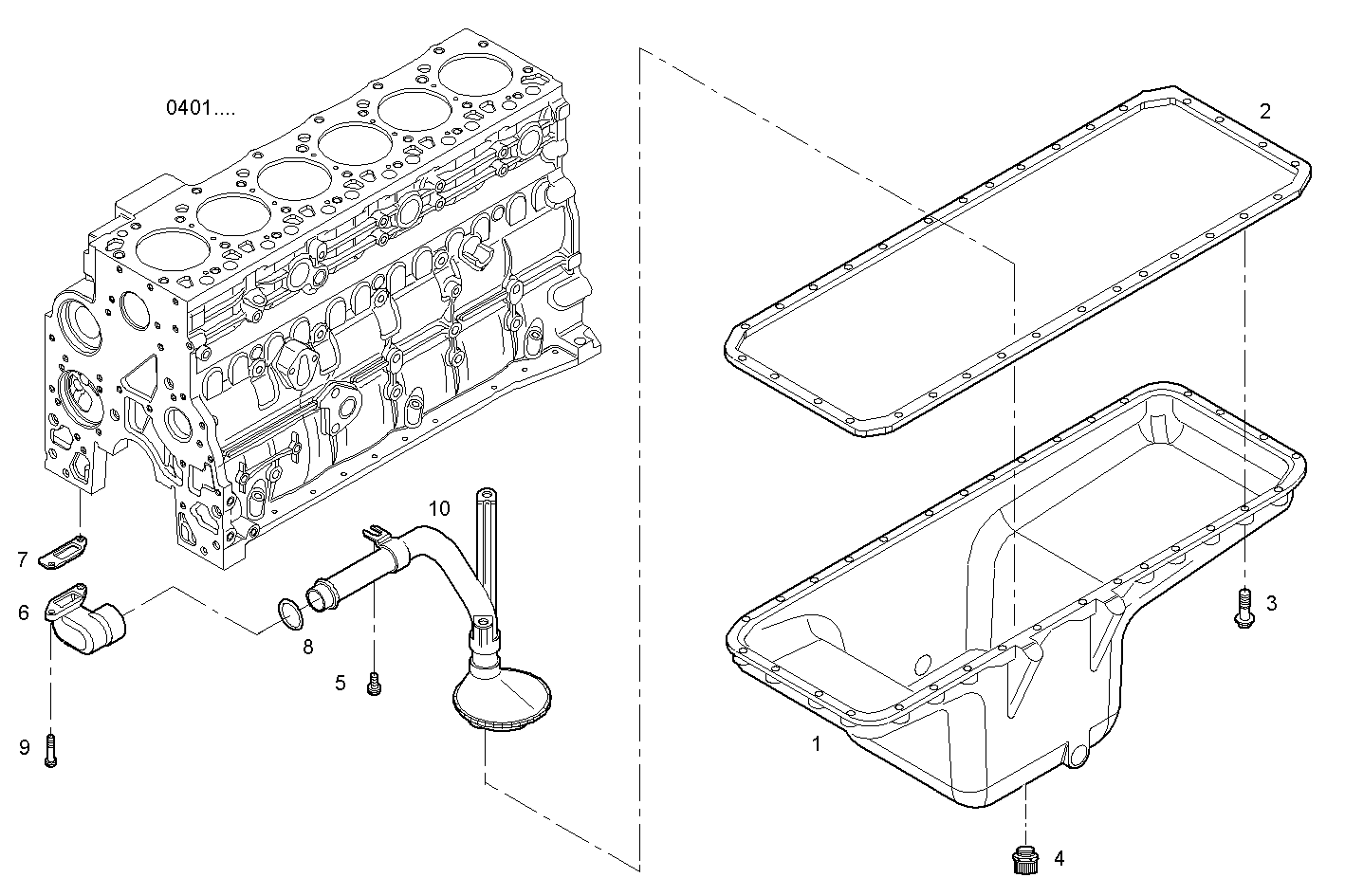

0420.245 OIL SUMP [FROM # 82619] [FROM # 82619]
| Item | Part number | Description |
|---|---|---|
| 1 | 504042274 | OIL SUMP |
| 2 | 504027340 | OIL SUMP GASKET |
| 3 | 4899019 | HEXAGON BOLT M8X35 MM |
| 4 | 504068028 | CONTROL VALVE |
| 5 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
| 6 | 500389883 | INTAKE ELBOW |
| 7 | 4898301 | FLAT ENGINE GASKET |
| 8 | 17282381 | O-RING Ø25,07 MM SP=2,62 MM |
| 9 | 4899079 | HEXAGON BOLT |
| 10 | 504082950 | SUCTION STRAINER |
