Catalogue Menu

F4AE0686C*E100

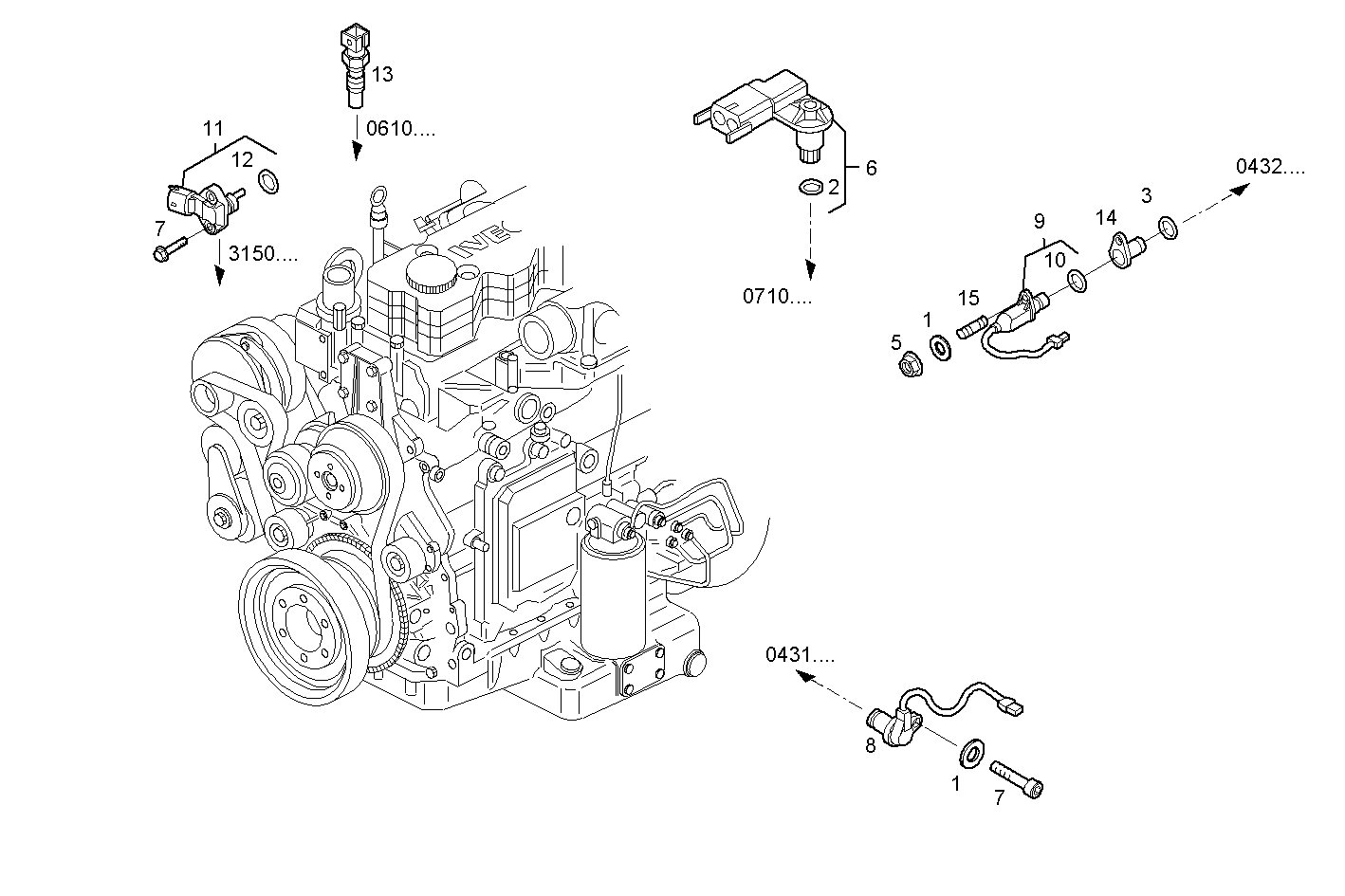

1700.036 ELECTRONIC CONTROL UNIT

Iveco/FPT ELECTRONIC CONTROL UNIT

Item Part number Description
1 4899124 WASHER
2 42546555 O-RING [FROM # 158928]
3 17278881 O-RING Ø23,5 MM SP=1,7 MM
4 4895817 HEXAGON BOLT [FROM # 158928]
5 17037821 HEXAGON NUT M6X1
6 504073323 SENSOR AIR PRESS. & TEMPER. [FROM # 158928]
7 4899110 HEXAGON BOLT
8 4890189 SENSOR SPEED
9 4890190 SENSOR SPEED
10 17278481 O-RING Ø17,17 MM SP=1,78 MM
11 4890193 SENSOR OIL PRESS. & TEMPER.
12 4895477 O-RING
13 4897224 SENSOR TEMPERATURE
14 4892255 PIPE SOCKET
15 4895157 STUD
