F4AE3481D*R102

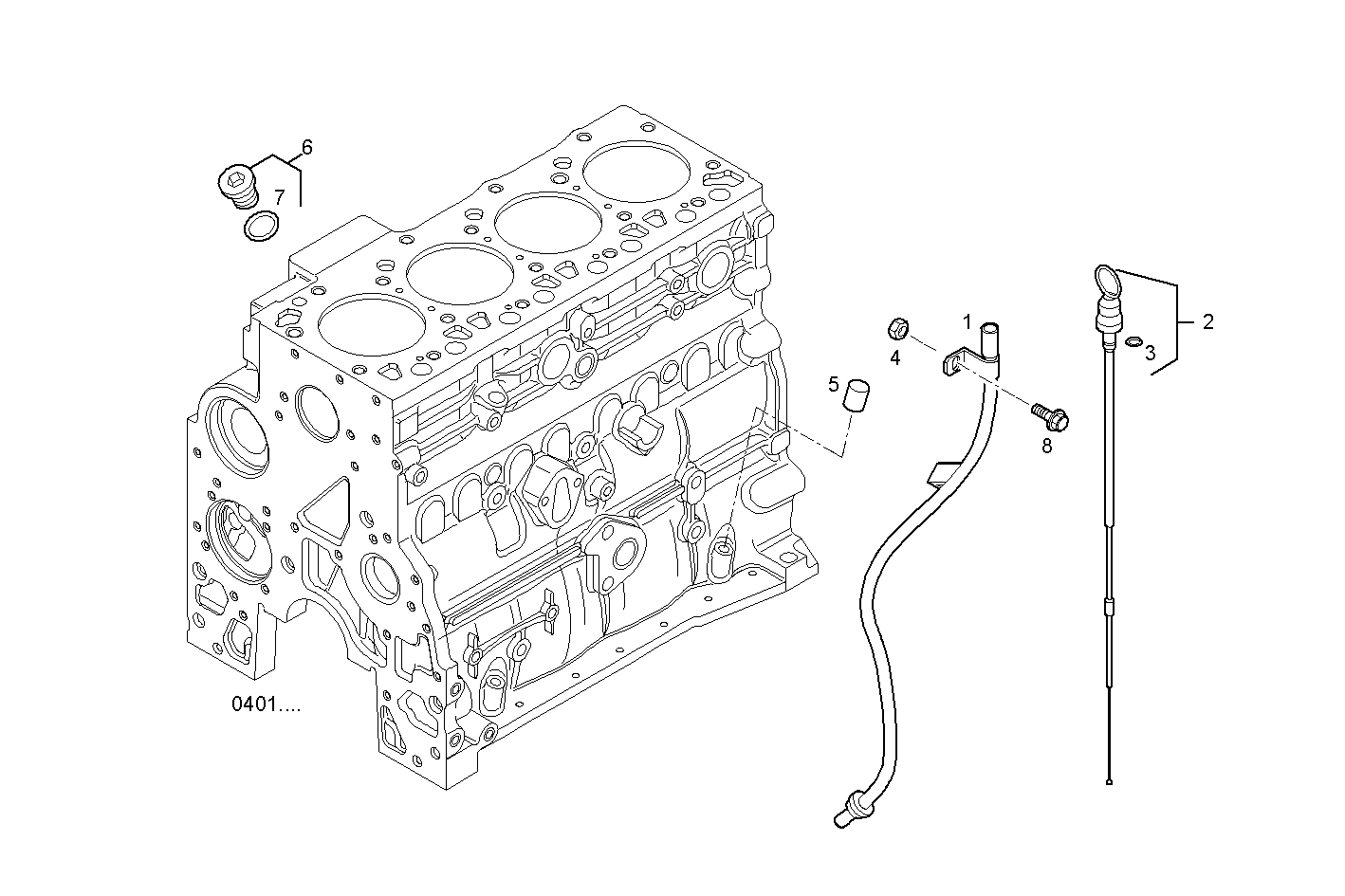

2700.030 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8033641 | OIL LEVEL TUBE |
| 2 | 8033639 | OIL DIPSTICK ASSY |
| 3 | 4898502 | O-RING |
| 4 | 17044825 | HEXAGON NUT M10 |
| 5 | 4895406 | PLUG |
| 6 | 4897330 | PLUG ASSY M12X1,5 |
| 7 | 4895610 | O-RING |
| 8 | 4899068 | HEXAGON BOLT M8X17 MM |
