F4BE0454A*D601

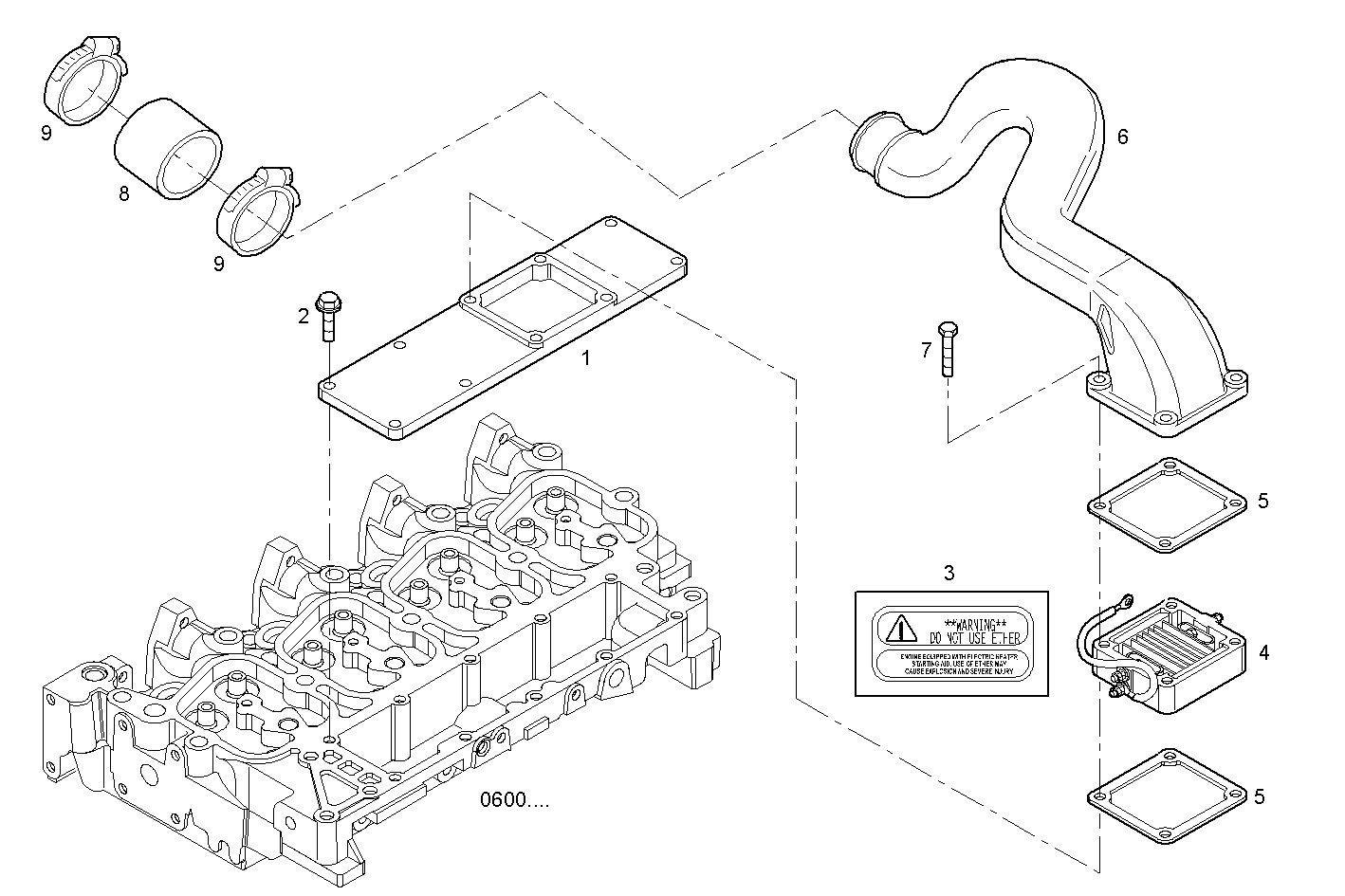

0710.189 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 504064865 | COVER |
| 2 | 4899039 | HEXAGON BOLT M8X1,25X25 MM |
| 3 | 4895325 | LABEL |
| 4 | 2831019 | HEATER |
| 5 | 4899921 | FLAT ENGINE GASKET |
| 6 | 504039344 | INTAKE ELBOW |
| 7 | 16592625 | HEXAGON BOLT M8X80 MM |
| 8 | 504063980 | RUBBER SLEEVE |
| 9 | 17764892 | PIPE CLIP Ø40-60 MM |
