F4BE0454G*D600

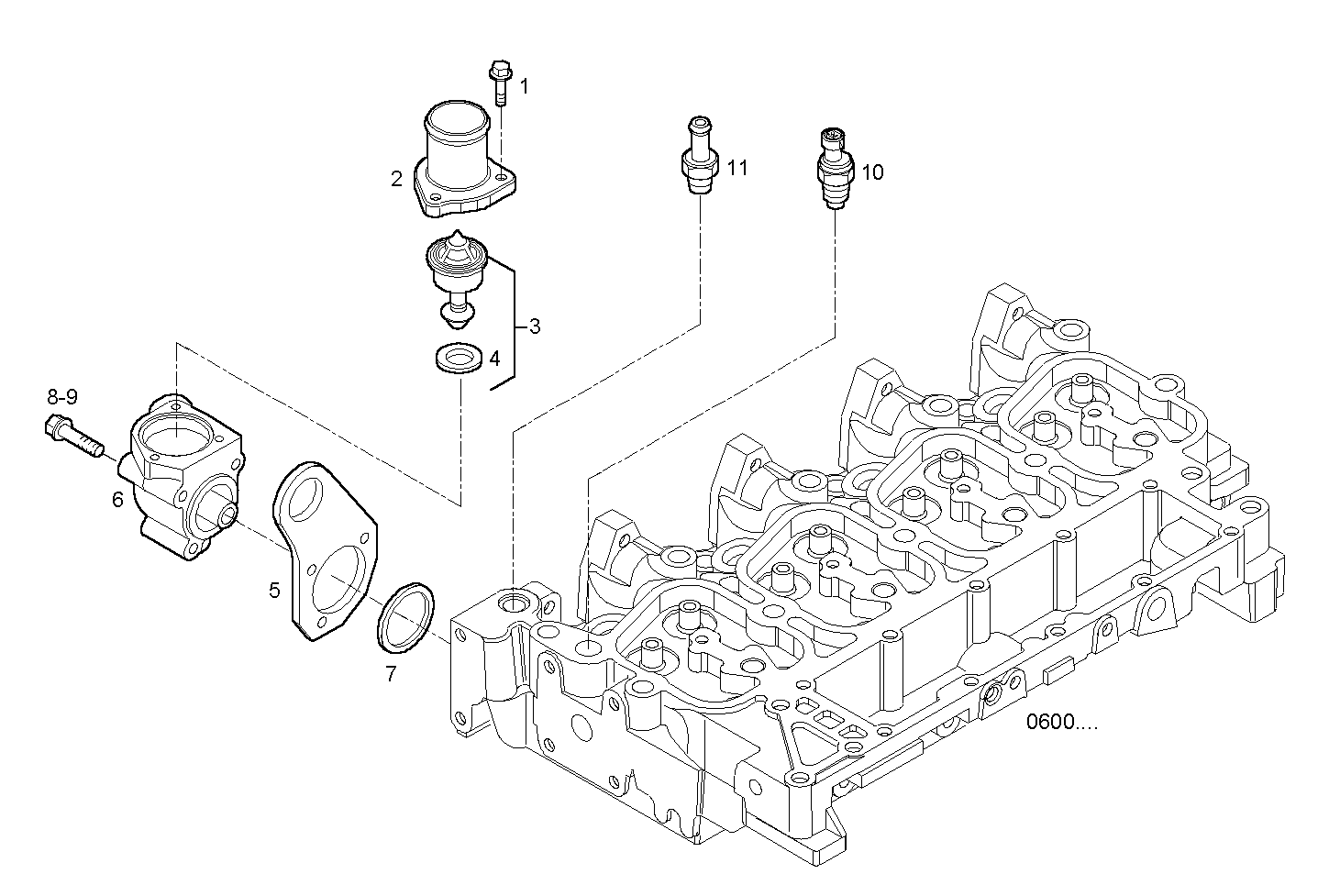

3220.138 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 4899110 | HEXAGON BOLT |
| 2 | 4895131 | THERMOSTAT BODY |
| 3 | 504031212 | THERMOSTAT ASSY |
| 4 | 504030960 | RUBBER GASKET |
| 5 | 504036869 | HOOK |
| 6 | 504044875 | THERMOSTAT BODY |
| 7 | 4895121 | WASHER |
| 8 | 16673934 | HEXAGON BOLT M8X35 MM |
| 9 | 16592624 | HEXAGON BOLT M8X80 MM |
| 10 | 504025599 | TEMP. TRANSMITTER WATER |
| 11 | 504043984 | PIPE SOCKET |
