F4BE0641A*G103

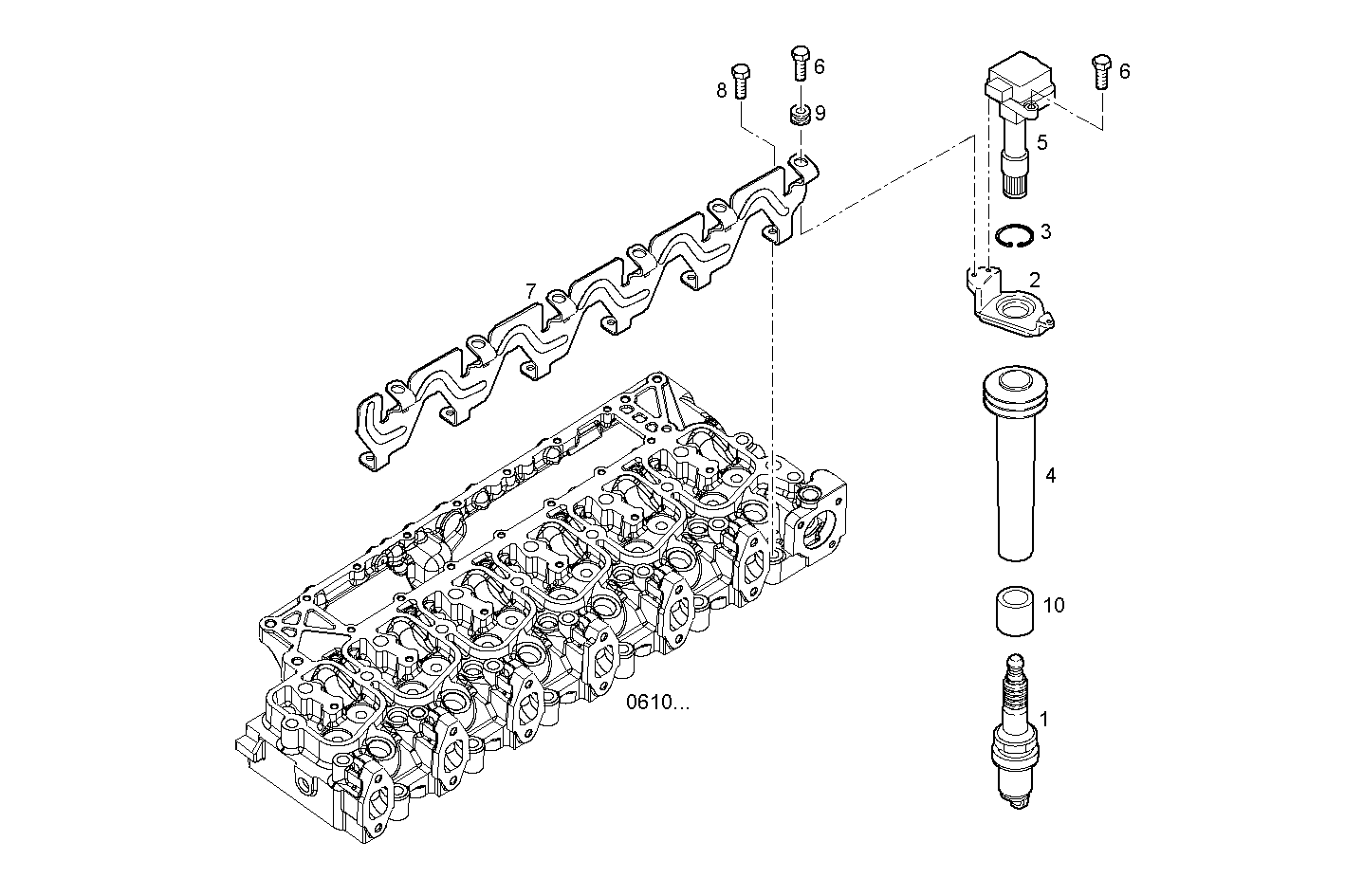

2800.011 IGNITION CONTROL - SPARK PLUGS
| Item | Part number | Description |
|---|---|---|
| 1 | 504082651 | SPARK PLUG |
| 2 | 504029726 | FLANGED BUSH |
| 3 | 17853574 | CIRCLIP |
| 4 | 504083065 | SPARK CASING |
| 5 | 504085566 | IGNITION COIL |
| 6 | 16585325 | HEXAGON BOLT |
| 7 | 504029774 | PROTECTION RIGHT |
| 8 | 16596924 | HEXAGON BOLT M6X10 MM |
| 9 | 504046193 | RUBBER LUG |
| 10 | 504046194 | SPACING BAR |
